As Indonesia’s infrastructure projects—from the Trans-Sumatra Toll Road to the new capital (IKN) development—continue to surge, the demand for high-quality aggregates is at an all-time high. In the realm of hard rock processing, the Symons 4 1/4' (4.25ft) Cone Crusher remains a "World Legend," renowned for its reliability and superior ROI. Whether you are crushing high-abrasive Andesite , understanding the technical nuances of the 4.25ft Symons is key to your project's success.
Technical Specifications: Symons 4.25ft At a Glance
The Symons 4 1/4' is designed for high-capacity secondary and tertiary crushing. Below is the performance matrix tailored for typical Indonesian mining conditions:
| Feature |
Standard (STD) Model |
Short Head (SH) Model |
| Crushing Level |
Secondary (Medium) |
Tertiary (Fine) |
| Max Feed Size |
150 – 270 mm (6" - 10.5") |
25 – 100 mm (1" - 4") |
| Capacity |
100 – 400 Tons/Hour |
60 – 220 Tons/Hour |
| Power Required |
132 – 160 kW |
132 – 160 kW |
| Best Used For |
Breaking large river stones |
Producing 0-5, 5-10, 10-20mm aggregate |
Standard vs. Short Head: Which One Does Your Plant Need?
The most critical decision for Indonesian operators is choosing between the Standard (STD) and Short Head (SH) cavities. What's the difference between them?
Standard (STD): Features a longer crushing chamber. In Indonesia, this is the "workhorse" for secondary crushing stages, handling initial discharge from Jaw Crushers like the PE750x1060.
Short Head (SH): Features a steeper crushing chamber and a shorter parallel zone. It is essential for producing the fine, cubical aggregates required for high-grade asphalt and concrete (SNI standards).
Location: West Java, Indonesia. Material: High-hardness Andesite (Compressive strength >200 MPa). Objective: Produce 0-20mm high-quality aggregates for road construction.
The Solution:

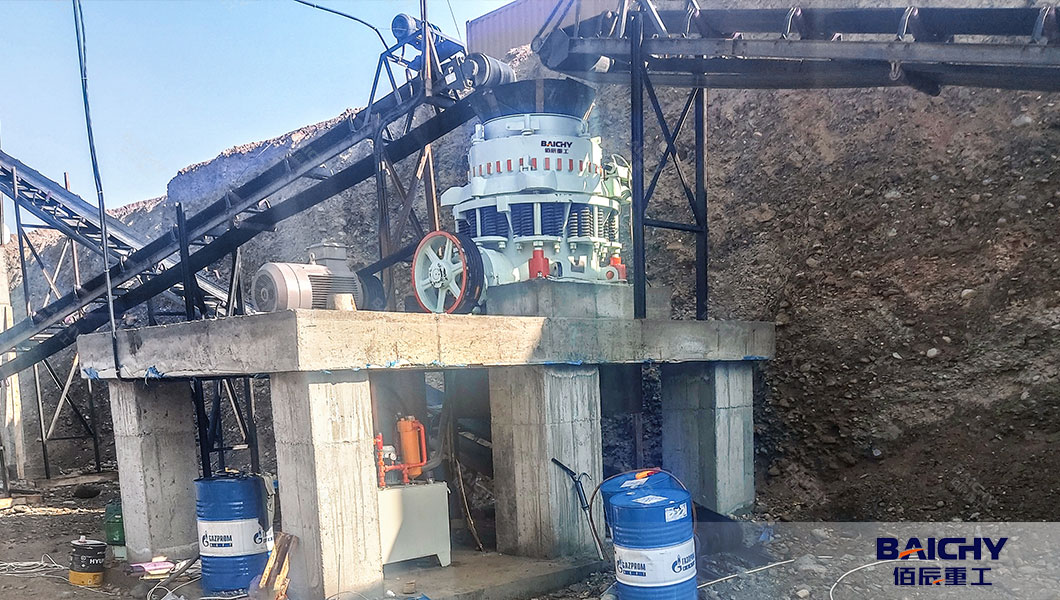

The plant owner installed a Symons 4 1/4 Standard Cone Crusher as the secondary crushing unit. When operated in closed circuit with a screen, it can achieve higher production rates and tighter product gradations. The closed circuit configuration is typically used for producing specific product sizes, such as 0–20 mm or 0–10 mm aggregates.
The Result:
Capacity Stability: Maintained a steady 200 TPH even with wet feed during the monsoon season.
Cubical Shape: The final product achieved a flakiness index below 15%, exceeding local infrastructure requirements.
ROI: The client achieved full capital payback within 10 months, thanks to the low maintenance cost of the heavy-duty bronze bushings.
Maintenance for Indonesia’s Tropical Climate
Operating a Symons 4 1/4 in the high humidity of Indonesia requires specific expertise:
Lubrication: Use high-grade oils to prevent overheating in the 30°C+ ambient temperatures.
Dust Sealing: Ensure the water seal or grease seal is checked daily to protect the internal spherical bearing from volcanic ash and dust common in Sumatra and Java.
Spare Parts: Always keep a set of Mantle, Bowl Liner, and Bronze Bushings in your Jakarta or Surabaya warehouse to minimize downtime.
Frequently Asked Questions - FAQ
1. What is the price of a Symons 4 1/4 cone crusher in Indonesia?
Used units typically start around $120,000, while new, high-configuration units vary based on hydraulic control upgrades. Request a 1-hour quick quote for precise local pricing.
2. Can the Symons 4 1/4 handle hard Andesite?
Yes. It is specifically designed for hard and abrasive materials. The Symons principle uses a combination of impact and compression, making it superior to impact crushers for high-silica rocks.
3. 4.25ft vs 4 1/4 Symons: Is there a difference?
No. They refer to the same size. "4 1/4" is the fractional measurement, while "4.25ft" is the decimal equivalent used in many modern technical manuals.
