Mobile Crush and Screen Plant

Mobile Crush and Screen Plant

Mobile Crushing and Screening machine is high-efficiency and modular stone crusher plant. It can work by single machine, as well as combination of several machines to be a plant. It is widely used to limestone, granite, quartz, gold ore etc.

  • <750mmFeed Size
  • 120-500kwMotor Power
  • 50-300 t/hProcessing capacity
Complete solutions, quality equipment and expert services
  • 60S Quick response
  • 30 min Technical reply
  • 24h design proposal
  • Email:hnbc@baichy.com

Application

Mobile stone crushing and screening plant is widely used in road and bridge construction, urban construction, building garbage disposal, mining, coal, metallurgical, energy and other departments for crushing and screening operations.

Applicable materials: Stone crusher is used for crushing over 120 kinds of rocks, such as limestone, granite, quartz, basalt, river stone, gold ore, iron ore, coal, gravel, aggregate etc. Different final output size could meet your different needs.

  • Quality Assurance

    Primary and secondary crushing and screening machines are combined onto one carbody.

  • Customized Scheme

    Flexible configuration. Various models can quickly combine with other models to meet the different needs of production.

  • High Yield

    Saving transportation cost of raw material.

Product features

Saving transportation cost of raw material.

Working principle

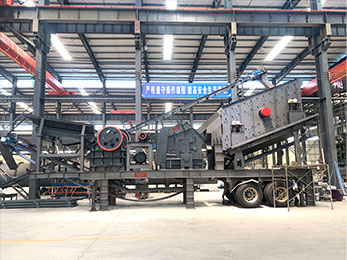

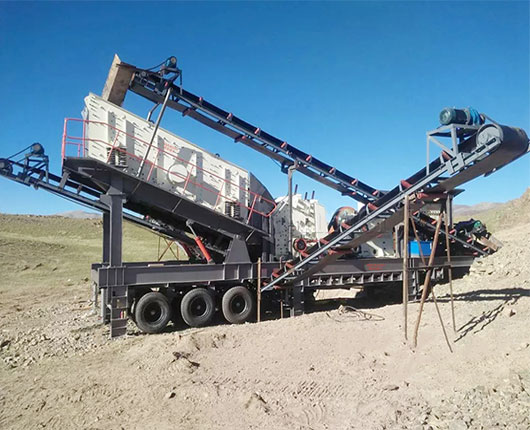

Mobile crushing plant is a kind of wheel type mobile stone crusher plant. It combines vibrating feeder, jaw crusher, cone / impact crusher, vibrating screen on one truck body to crush and screen gravels automatically. This four-in-one crushing plant is reasonable circular crushing system to crush stone in higher efficiency. When mobile stone crusher plant works, material by the feeder goes evenly to the jaw crusher. After primary crushing by jaw crusher, stone goes to vibrating screen by main belt conveyor. During screening, the first layer unqualified material goes into secondary crusher to break. The qualified material from other screen layers are discharged to finished material area. The output from secondary crusher is discharged to main belt conveyor for further screening too. Thus, the material is in the circulation system of crushing-screening-crushing. The finished material could meet the final demand greatly.

Specification

*The output will vary according to different materials, feed particle size and other factors

Technical Data//Model MF1010E46 MB900E57
Transportation size (mm) 14700x2400x4150 17000x2500x4300
Weight(t) 40 45
Vibrating feeder ZSW8530 ZSW8530
Crusher 1 PE400x600 PE500x750
Crusher2 PF1010 PYB900
Vibrating screen 3YK1548 3YK1860
Belt conveyer above screen B500x8m B500x8m
Belt conveyer under screen B500x8m B500x8m
Main belt conveyer B650x11m B650x11m
Side belt conveyer B500x16m B500x16m
Electric control (standard) control box + control panel control box + control panel
Support leg (standard) 6 6
