Wet Grate Ball Mill for Iron Ore Processing in Philippines

Iron ore grinding is a critical stage in mineral beneficiation plants. The grinding process determines the liberation degree of iron minerals and directly affects the efficiency of magnetic separation and final concentrate quality. For iron ore processing, wet grinding is widely used because it can reduce dust generation, improve grinding efficiency, and provide a suitable slurry condition for downstream beneficiation processes. Baichy Machinery provided a wet grate ball mill solution for an iron ore processing project in the Philippines. The project adopted a MQY3200×4500 wet grate ball mill, designed to achieve stable grinding performance and meet the requirements of iron ore beneficiation.

Why Wet Grinding Is Used for Iron Ore Processing?

Iron ore usually contains valuable minerals closely associated with gangue minerals. Before magnetic separation or other beneficiation methods, the ore needs to be sufficiently ground to release the iron minerals.

Compared with dry grinding, wet grinding has several advantages in iron ore processing. Water helps reduce dust, improve material flow, and create a uniform slurry for classification and separation.

The wet grinding process is especially suitable for large-scale mineral processing plants because it provides stable operation and better adaptability to different ore conditions.

What Is a Wet Grate Ball Mill?

A wet grate ball mill is a type of grinding equipment commonly used in mineral processing plants. It uses steel balls as grinding media to crush and grind ore particles through impact and friction.

The grate discharge design allows the ground slurry to leave the ball mill through the discharge grate. This structure helps reduce over-grinding and improves the efficiency of continuous grinding operations.

The main features of a wet grate ball mill include:

 ● Efficient grinding performance

The rotating cylinder drives grinding media to impact and grind iron ore particles, reducing the feed size to the required fineness.

 ● Stable slurry discharge

The grate structure allows qualified slurry to discharge smoothly while preventing large grinding media from leaving the mill.

 ● Suitable for mineral beneficiation

Wet grate ball mills are widely used for iron ore, gold ore, copper ore, and other mineral processing applications.

Iron Ore Processing Flow with Wet Grate Ball Mill

A complete iron ore beneficiation plant usually includes crushing, grinding, classification, and separation stages.

The typical process is:

1. Crushing Stage

Large iron ore rocks are first crushed into smaller particles by jaw crushers and secondary crushing equipment. This prepares suitable feed material for the grinding system.

2. Feeding System

After crushing, the ore is evenly transported to the ball mill through a belt conveyor or feeding device. Stable feeding helps improve grinding efficiency and reduce energy consumption.

3. Wet Grinding Stage

The crushed iron ore enters the wet grate ball mill. Under the rotation of the cylinder, grinding balls continuously impact and grind the ore into fine particles.

The generated slurry is discharged through the grate and sent to the classification and separation system.

4. Classification and Magnetic Separation

The ground slurry is classified according to particle size. Qualified particles enter the magnetic separation process to recover iron minerals and produce iron concentrate.

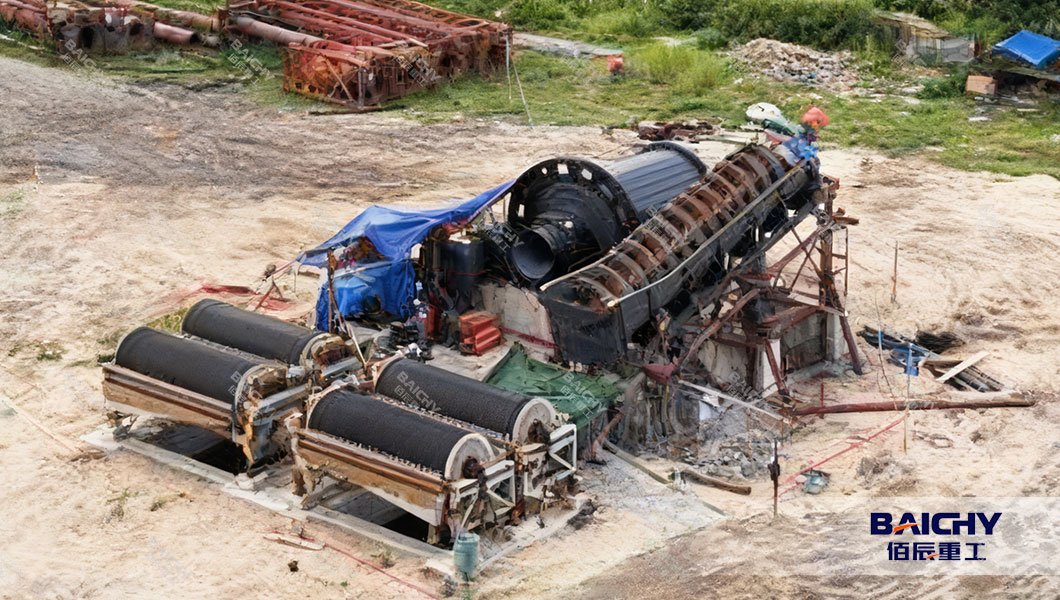

Philippines Iron Ore Ball Mill Project Details

For this iron ore processing project in the Philippines, Baichy supplied a wet grate ball mill system according to the customer's production requirements and ore characteristics.

The selected ball mill provides reliable operation and sufficient grinding capacity for the customer's iron ore processing plant.

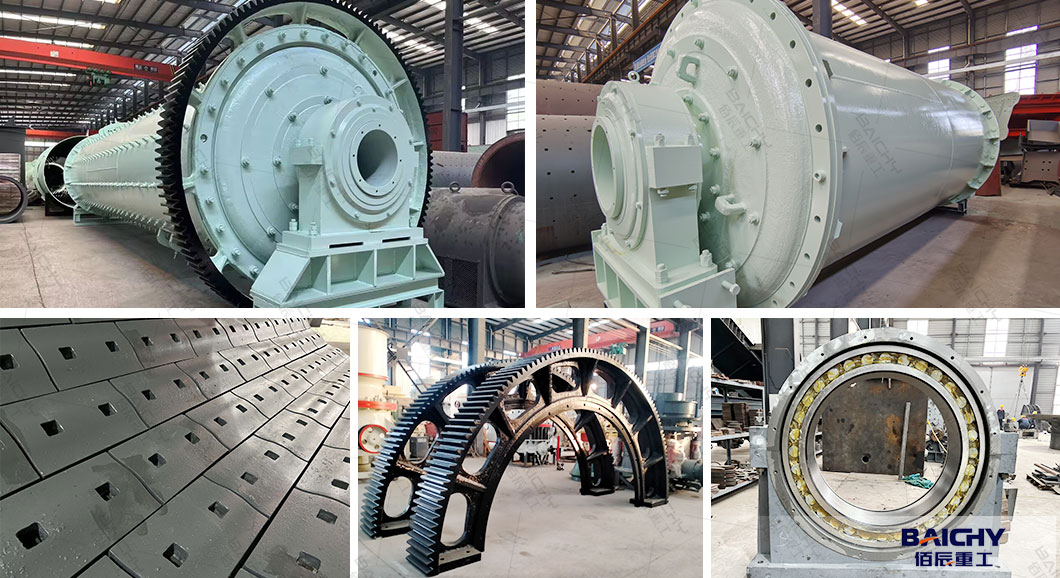

Advantages of Baichy Wet Grate Ball Mill for Iron Ore Grinding

1. Designed for Mineral Processing Applications

Baichy wet grate ball mills are developed for mining and beneficiation industries. The equipment structure is optimized for continuous grinding operations with high reliability.

2. High Grinding Efficiency

The optimized cylinder structure and suitable grinding media improve the impact and grinding effect, helping reduce energy consumption while achieving the required particle size.

3. Stable Operation and Long Service Life

The mill adopts a robust design with wear-resistant components, allowing it to operate under demanding mining conditions.

4. Customized Solutions for Different Ore Conditions

Baichy provides complete equipment selection according to ore properties, capacity requirements, and final product specifications, helping customers achieve efficient mineral processing.

Why Choose Baichy for Iron Ore Processing Equipment?

Baichy Machinery specializes in mining and mineral processing equipment, including crushing, grinding, and beneficiation solutions.

With years of experience in overseas mining projects, Baichy provides not only individual machines but also complete process solutions, including:

 ● Equipment selection and technical support
 ● Customized plant design
 ● Manufacturing and quality inspection
 ● Installation guidance and after-sales service

For iron ore beneficiation projects, Baichy focuses on providing reliable equipment with practical engineering experience to help customers improve production efficiency.

Frequently Asked Questions

1. What is a wet grate ball mill used for?

A wet grate ball mill is mainly used for grinding mineral ores in beneficiation plants. It is commonly applied to iron ore, gold ore, copper ore, and other hard minerals before separation processes.

2. Why is wet grinding preferred for iron ore processing?

Wet grinding improves material flow, reduces dust, and produces slurry that is suitable for classification and magnetic separation. It is widely used in modern iron ore beneficiation plants.

3. What is the function of the grate in a ball mill?

The grate controls the discharge of ground slurry and helps prevent oversized particles and grinding media from leaving the mill, improving grinding efficiency.

4. Can Baichy provide a complete iron ore beneficiation solution?

Yes. Baichy can provide complete solutions including crushing, grinding, feeding, classification, and beneficiation equipment according to customers' mineral properties and production requirements.
