Shaking Table

Shaking Table

High Recovery Rate Gold Ore 6-S Shaking Table For Sale is one of the important dressing equipment depending on the gravity.

  • 0.15-2mmFeed Size
  • 1.1KWMotor Power
  • 15-60 tpdProcessing capacity
  • 60S Quick response
  • 30 min Technical reply
  • 24h design proposal
  • Email:hnbc@baichy.com

What is shaking table?

The shaker is a gravity beneficiation equipment that uses the asymmetric reciprocating motion of the bed surface to separate light and heavy minerals. 6S shaking table is applicable to nonferrous metals, ferrous metals and rare metals mineral, like gold, tungsten,tin, tantalum, iron, manganese, chrome, titanium, bismuth and lead, which the size ranges from 2-0.037mm.

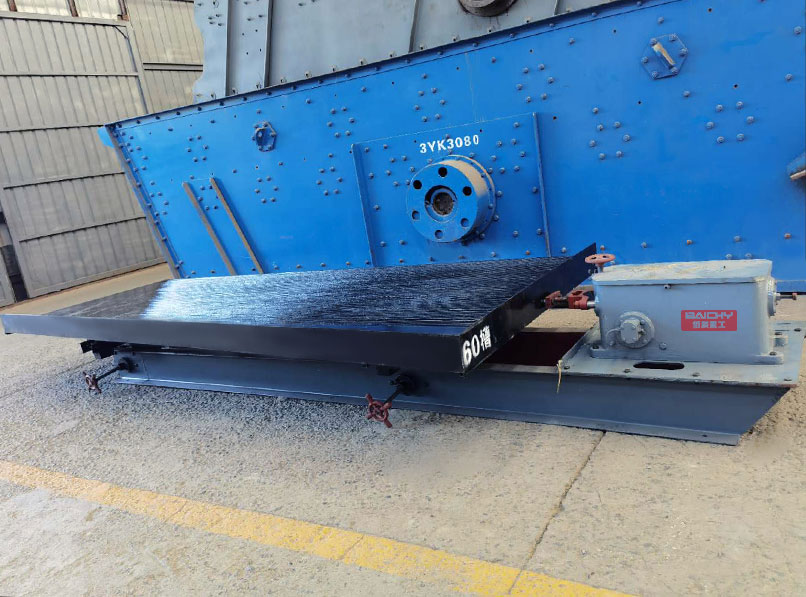

gold ore shaking table ore shaker

gold ore separating plant

How to choose shaking table?

1. Gravity separation is one of the commonly used methods for gold ore beneficiation. It uses different specific gravity of materials and different sedimentation speed in the medium to carry out layered separation. Generally, in placer gold ore, gold is mostly in the form of natural gold. When it exists, the density difference between it and the gangue is relatively large, and it is effective and economical to use for gravity separation of gold.

2. Shaking table gold separation is suitable for processing minerals with finer particle size. According to the particle size of the ore, it can be divided into three types: coarse sand bed, fine sand bed and ore mud bed. Among them, the coarse sand bed is suitable for separating material particle size For ore particles as small as 0.5 mm, the fine sand bed is suitable for processing ore particles with a particle size range of 0.5 to 0.074 mm, and the ore mud bed is suitable for processing ore particles with a particle size of 0.074 to 0.037 mm.

3. The gold separation effect of the shaking table is stable. It is suitable for processing fine-grained minerals, and it is very suitable for the beneficiation stage of gold mines.

Get Price List
  • High Quality

    Great ratio of high-grade ore, high separating efficiency, easy to operate and convenient to adjust the stroke.

  • Customized Design

    Anti-chemical corrosion, acid and alkali.

  • Good Performance

    Strong wear resistance of the working surface.

Product features

Strong resistance to harsh environment.

Working principle

The bed zone of shaking table is near a rectangle shape, slightly inclined to the tailing end. There are craved chute on the surface of bed, the water flow along the incline direction from water tank and feeding chute. The bed surface do repeatedly motion by transmission mechanism, the distance of bed forward and backward called stroke, when the slurry enters into feeding chute, under the action of water flow and shaking, different density of mineral particles will be distributed in fanshape on the bed surface.

Specification

Name bed surface for coarse sand bed surface for fine sand bed surface for slurry
Bed Length(mm) 4450 4450 4450
dimension transmission end width(mm) 1855 1855 1855
  concentrate ore width(mm) 1546 1546 1546
Max Feeding Size(mm) 2 0.5 0.15
Feeding volume(t/h) 30-60 10-20 15-25
Feeding density(%) 25-30 20-25 15-25
stroke(mm) 16-22 11-16 8-16
Frequency( t/s) 45-48 48-53 50-57
Cross Slope of Surface 2.5°-4.5° 1.5°-3.5° 1°-2°
mineral dressing area(㎡) 7.6 7.6 7.6
Shape of bed surface Rectangle indention Triangle
Motor Power(KW) 1.1 1.1 1.1
Driving type Eccentric link structure
Remarks: Any change of technical parameters, there is no further notice.

*The output will vary according to different materials, feed particle size and other factors
