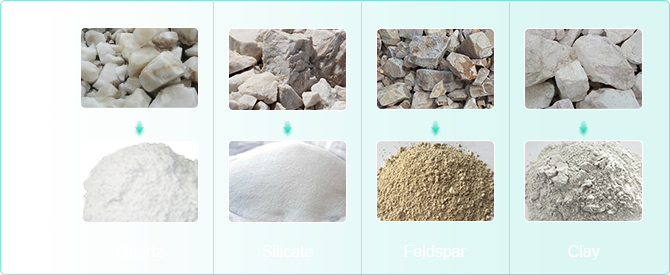

A feldspar grinding mill plant is a complete powder production line that processes feldspar stones into fine powder through crushing, grinding, classification, and collection. It is for use in ceramics, glass, construction materials, and other industrial applications.

Baichy provides customized feldspar grinding solutions according to customers’ requirements, including raw material characteristics, production capacity, and final powder fineness.

Leave Message

Get Price List

60s Quick Response

30 Min Technical Reply

24h Design Proposal

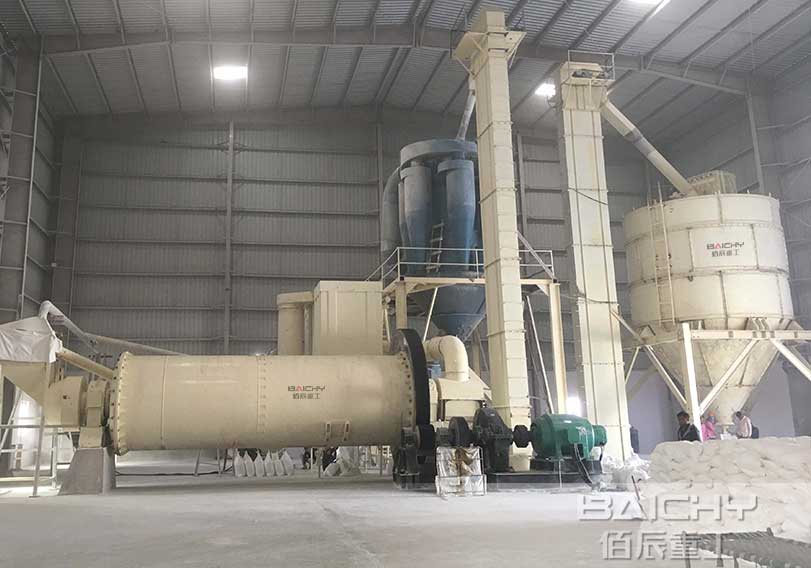

About Feldspar Ball Mill Plant

Feldspar ceramic ball mill plant is a powder-processing system specially designed for feldspar grinding. It usually combines crushing, feeding, ceramic ball milling, classifying, powder collection, and dust control into one continuous production line. Compared with ordinary steel-lined mills, ceramic ball mills can reduce metal contamination during grinding, which makes them widely used for ceramic-grade and high-whiteness feldspar products. Feldspar is a common mineral with high hardness and good chemical stability. To obtain qualified feldspar powder, a reliable grinding process is required to control particle size, improve production efficiency, and reduce energy consumption, such as iron remover and a belt scale feeder work together to keep the product clean and the feeding steady.

Key Features

● Clean Product.The iron remover and ceramic ball mill work together to keep iron out of the powder. This is essential for ceramic and glass production, where iron content must stay very low.

● Steady Feeding. The belt scale feeder measures material by weight and feeds it evenly. This avoids sudden overloads and helps the mill produce a consistent output.

● Adjustable Fineness.The air classifier can be adjusted to produce different powder sizes, usually between 200 and 325 mesh. You can change the setting based on your needs.

● Stable Operation. The ceramic ball mill is built for long hours of continuous work. With regular maintenance, it runs reliably year after year.

● Low Dust.The pulse dust collector captures dust from the whole line, keeping the working environment clean and meeting environmental standards.

Grinding Mill Plant Specification Sheet

>>>Send Inquiry Now

Capacity (t/h)		4-8 tph	5-10 tph	10-15 tph	15-20 tph	20-35 tph
Ball mill	Model	1500x5700	1830x7000	2200x7000	2400x8000	2700x9000
Ball mill	Motor power (kw)	110	155	245	380	430
Belt weighter	Model	B500*4m	B650*4m	B650*4m	B650*5m	B650*6m
Belt weighter	Motor power (kw)	4	5.5	5.5	5.5	5.5
Magnetic separator	Model	Φ420*750mm	Φ420*750mm	Φ420*750mm	Φ420*750mm	Φ420*750mm
Bucket elevator	Model	TH250	TH315	TH315	TH400	TH500
	Motor power (kw)	11	11	15	15	18.5
	Qty	2	2	2	2	2
Air classifier	Model	TS250	TS350	TS500	TS750	TS1000
Air classifier	Motor power (kw)	15+45	18.5+55	22+75	37+90	37+132
Pulse dust collector	Model	DMC-32-4	DMC-48-4	DMC-64-4	DMC-64-5	DMC-64-6
Pulse dust collector	Blower motor(kw)	30	37	45	75	95
Screw conveyor	Model	LX165	LX219	LX273	LX325	LX425
	Motor(kw)	5	7.5	11	15	18.5
	Qty	3	3	3	3	3
Final product silo	Model	40m³	60m³	85m³	100m³	160m³
Electric control cabinet	Qty	1	1	1	1	1

* The output will vary according to different materials, feed particle size and other factors

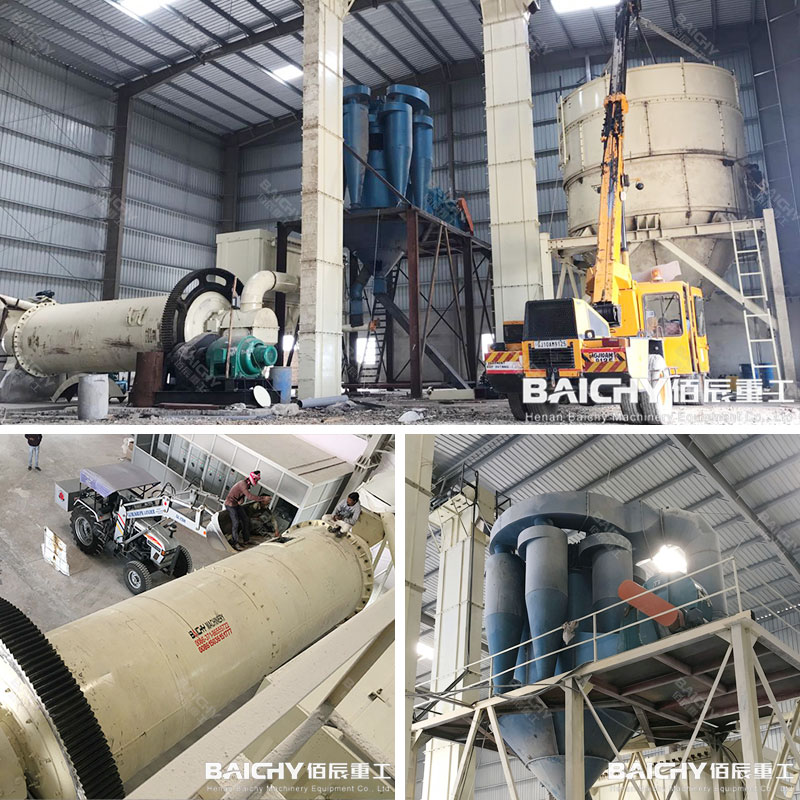

feldspar grinding mill plant site in India

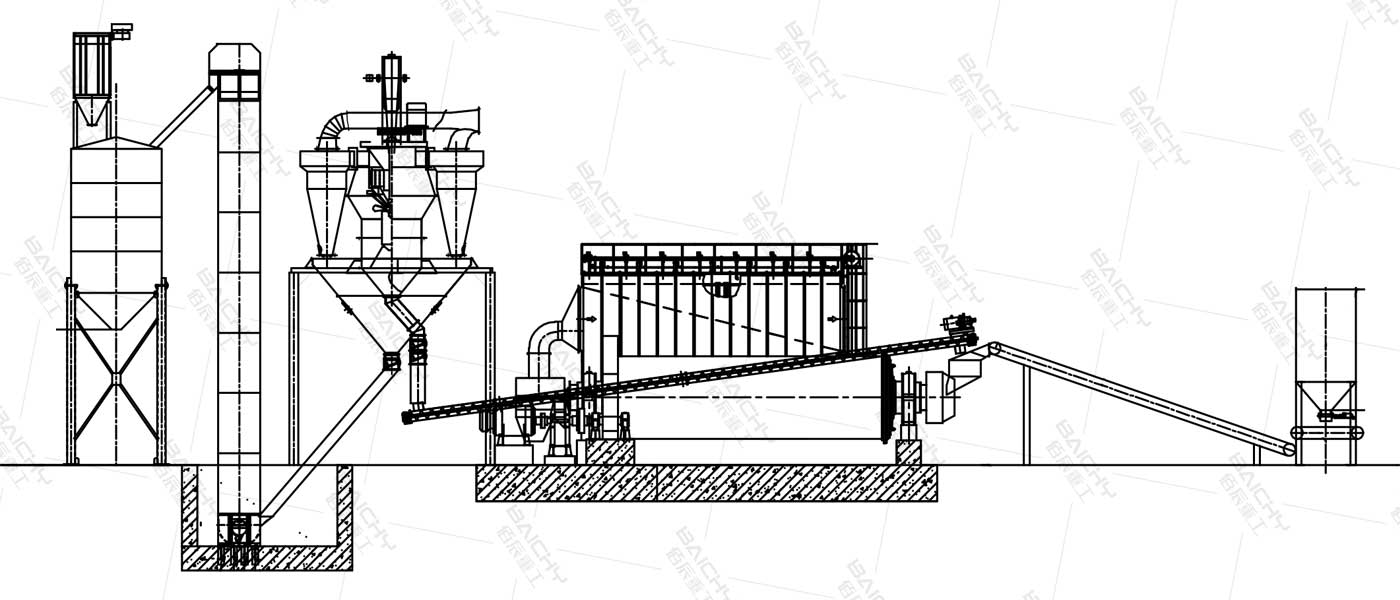

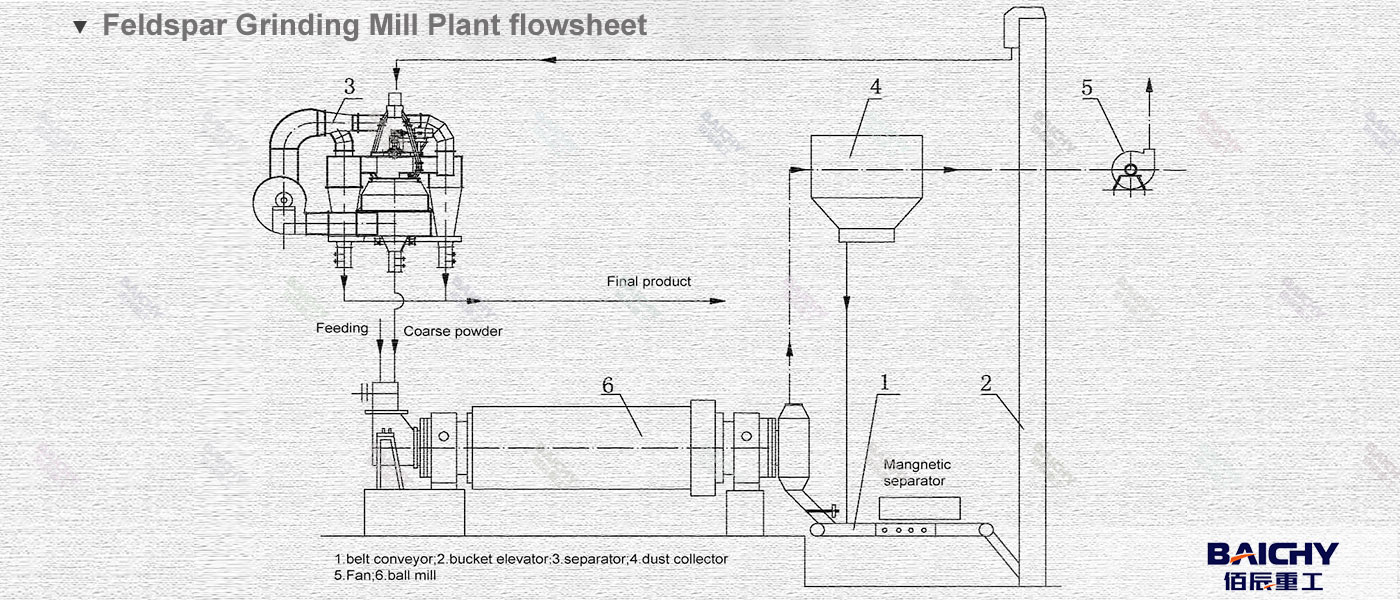

Feldspar Grinding Process

1. Uniform Feeding and Iron Removal

The feldspar raw material is first stored in a feeding hopper and then transported by a weighing belt feeder. The weighing belt controls the feeding speed accurately, ensuring that materials enter the ball mill evenly and continuously. Before grinding, the material passes through a magnetic separator to remove iron impurities. This step is especially important for feldspar used in ceramic and glass industries, where product purity directly affects quality of final products.

2. Ceramic Ball Mill Grinding

The ceramic ball mill is the core equipment of the feldspar grinding plant. During operation, the feldspar material is ground by high alumina grinding media inside the rotating mill. The impact and friction between the grinding media and feldspar particles gradually reduce the material size into fine powder.

3. Classification and Powder Collection

The air classifier separates the powder according to particle size. Qualified fine powder is collected as the final product, while coarse particles return to the ball mill for further grinding.

A pulse dust collector is installed in the system to collect fine powder and control dust emissions. It improves the working environment and helps achieve cleaner production.
