The Sand washing machine is used to wash stone powder and residual away from the sand. It is widely used in sand washing plant.

≤ 10Feed Size
4-30KWMotor Power
30–160 t/hProcessing capacity

Get Quotes Leave Message

60S Quick Response
30Min Technical Reply
24H Design Proposal
Email:hnbc@baichy.com

What is wheel sand washing machine?

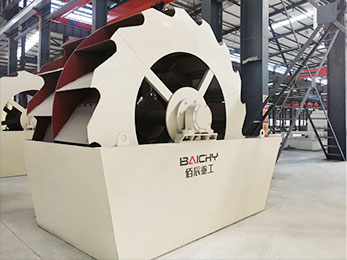

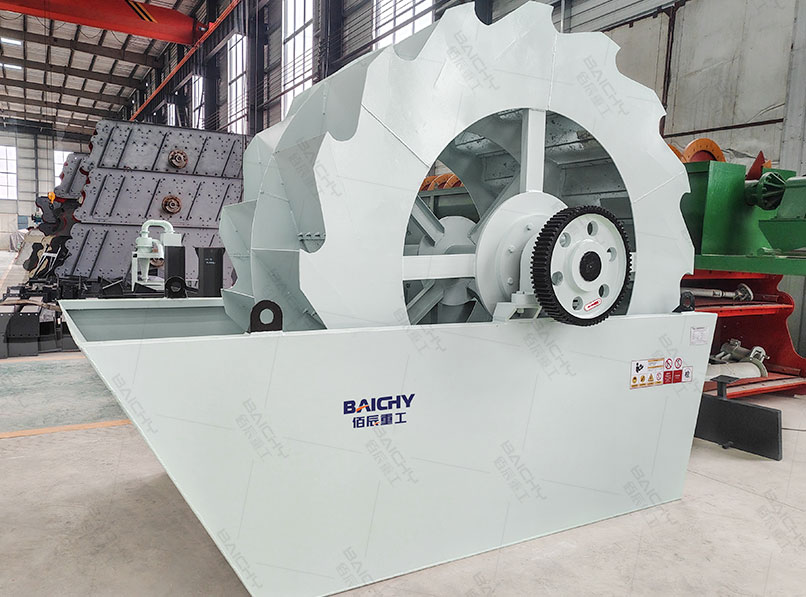

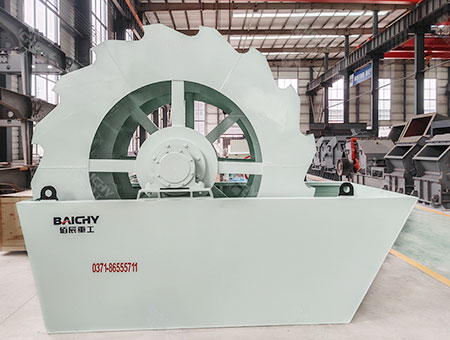

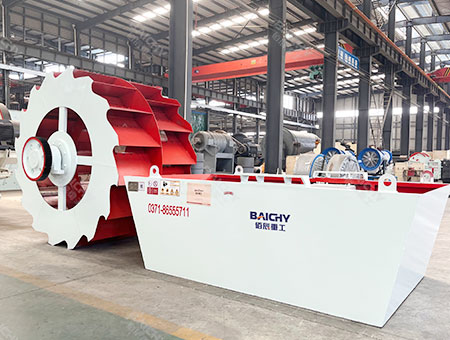

Wheel Washer is used to wash and separate soil and other impurities in sand for the purpose of increasing sand quality. Due to simple design, it has an ease in assembly process, the bucket wheel provides advantages to the users with low power consumption and water saving. It could be made single wheel and double wheel type.

Why choose wheel sand washing machine?

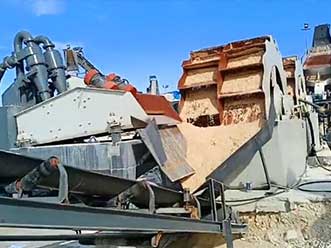

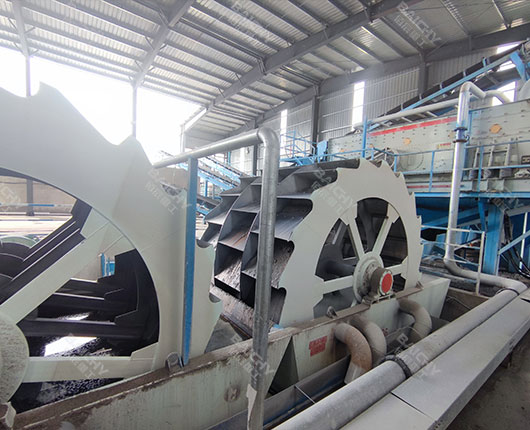

The sand washing machine is indispensable equipment for sand, gravel, aggregate washing plant and widely used in the aggregate, mines, building materials, construction, concrete and other industries.

Sand washer can remove the impurities covering the surface of the sand and stone to improve the sand and gravel product quality.

It has almost no wearing parts except the screen mesh, long service life.

Convenient maintenance, large processing capacity, low power consumption, high cleanliness.

Get Price List

Product features

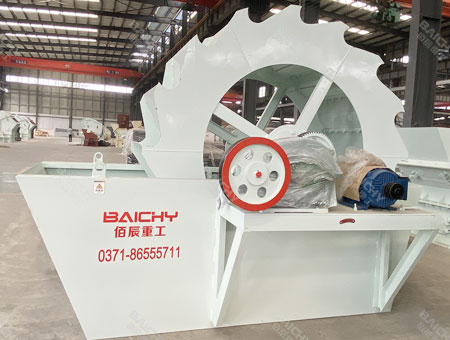

Innovative Seal & Oil Bath Drive

Reasonable design with a new-type seal structure and totally-enclosed oil bath transmission ensures reliable performance and reduced maintenance.

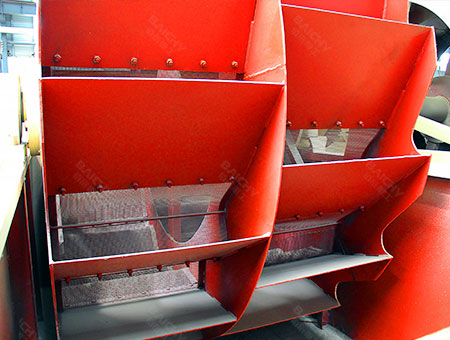

Heavy-Duty Steel Screen

The screen is made of thick steel plate with precision-punched mesh for enhanced durability and efficient material separation.
High Capacity, Low Power

Achieves high processing capacity while maintaining low power consumption, delivering cost-effective and energy-efficient operation.
Water-Saving & Eco-Friendly

Features water-saving technology, zero pollution output, and extended lifespan for sustainable and environmentally friendly use.

Working principle

When XSD sand washing machine begin running, the impeller rotates slowly drived by motor and reducer, sand and gravel from the feed chute into the wash tank cleaning, rotation of the impeller take the water and sand away through the sieve filter out the clean sand. Finally, gravel from the rotating impeller into discharge chute and completion of gravel cleaning effect.

Specification

Model	Impeller Dia.(mm)	Feeding Size(mm)	Capacity(t/h)	Motor Power(kw)
XSD2610	Φ2600	≤ 10	30-80	7.5
XSD2915	Φ2900	≤ 10	60-120	11
XSD3016	Φ3000	≤ 10	80-160	15
XSD3420	Φ3400	≤ 10	130-220	18.5
XSD3624	Φ3600	≤ 10	160-300	22
