250-400tph Sand making plant introduction

Sand making plant is used to sand production from crushing hard stones into small sand sized angular shaped particles, washed and finely graded to be used as construction aggregate. The equipment configuration of artificial sand making plant includes vibrating feeder, coarse crusher, medium and fine crusher, vibrating screen, sand making machine, belt conveyor. In the sand making plant, natural rocks, limestone, granite, sandstones, river pebbles and other materials can be processed into artificial sand that meets the requirements of building sand. It is to replace the natural river sand for the buildings and construction industries which need high-quality aggregates.


1. Complete crushing and screening plant is consisting of one or several crushing and screening units based on the customers' needs.
2. This series of plant is used to crush rocks in the industries such as road construction, building construction, construction materials, water and electricity and civil building etc working with commercial concrete, dry mixed mortar and mixing plant.
3. Core equipment for manufactured sand production line is sand making machine such as vsi crusher, vsi5x crusher etc.

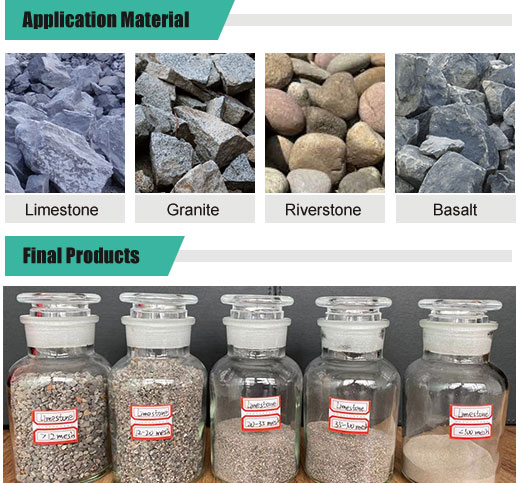

4. It is suitable for crushing high quality of basalt, diabase, granite, river gravel, limestone and other hard or medium hard rocks.
5. High production efficiency, regular end product granularity, good grain cubical sand, and low powder content.

How does 250-400 tph sand crusher plant work?

1. Hard stone such as granite, basalt blasting down from the mountain, the ones less than 1020mm will be fed into the vibrating feeder by the dump truck
2. Vibrating feeder will continuously feed raw stones into the jaw crusher.
3. Jaw crusher makes the primary crushing. The general size of stonescrushed by jaw crusher is around 150mm-300mm.
4. The crushed stones from jaw crusher are fedinto cone crusher by belt conveyor for secondary crushing.
5. The crushed stones will be screened through a vibrating screen. The stones with size bigger than 40mm will be sent back to combined cone crusher to be crushed again.
6. The stones less than 4mm will be sent to vertical shaft impactor by belt conveyor for shaping. Shaped products will be screened and separated by vibrating screen.,and then transported by belt conveyor to the finished products area.

Relevant case

Our service

1. Baichy machinery has 20+ years of experience in the sand crushing and screening plant. We are skilled in the production plant design and insists on providing customers with high yield, energy-saving and environmental protection rock crushers and other relative machines.

2. We provide overall solutions from equipment recommendation to debugging and installation, worker training, technical support and maintenance. The spares parts is provided all servide life.
3. Our machines have delivered to hundreds of countries, such as Indonesia, Philippines, Vietnam, Malaysia, India, Pakistan,  Kenya, the USA, Ghana, Zimbabwe, America, Australia Canada, Peru, Columbia, Guatemala, Uzbekistan, Russia etc. The engineers are assigned to install and train in cusomter site.
