CJ jaw crusher

Product Center / Crushing Equipment / CJ Jaw Crusher

CJ series jaw crushers are widely used in the mining, quarrying, and cement industry. It has deep symmetrical crushing chamber and optimized nip angle maximizing size reduction and production capacity.

400-780mmFeed Size
90-160KWMotor Power
60-500t/hProcessing capacity

Get Quotes Leave Message

60S Quick Response
30Min Technical Reply
24H Design Proposal
Email:hnbc@baichy.com

What is CJ jaw crusher?

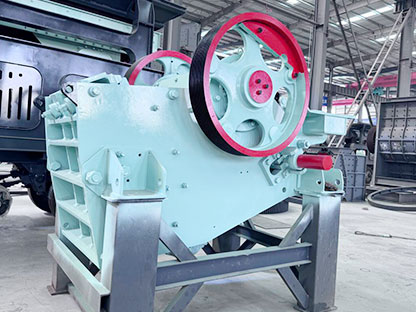

CJ Series Jaw crusher is an excellent performance jaw crusher, which is developed by Henan Baichy Machinery Co., Ltd. according to customer market needs. Compared with the traditional jaw crusher, it has great improvement in movement parameters, structure and adjusting methods, etc. CJ Series Jaw Crusher occupies a small space and has bigger crushing ratio, at the same time its operation more stable. It has more advantages in transportation, installation, maintenance and adjustment. Especially it is suitable for fixed crushing production line and mobile crushing station.

Why choose CJ jaw crusher?

1.Easy to install: Compact modular structure, easy to replace existing crushers, it can be transported to the site separately

2.Reliability: riveted and bolted, solderless frame construction, outstanding fatigue strength, excellent casting technology, top quality components

3.High yield: Excellent feeding capacity, large angle crushing chamber to ensure the best bite force, strong movement to ensure efficient crushing pressure reliable movement, high operating rate.

Get Price List

Product features

Non-Welded Modular Frame Structure

Riveted and bolted frame eliminates stress concentration points, providing outstanding fatigue resistance and structural reliability for long-term heavy-duty operation.
Optimized Chamber for Higher Throughput

Enhanced swing jaw stroke and optimized crushing chamber design deliver up to 30% greater capacity than traditional models, maximizing production efficiency.

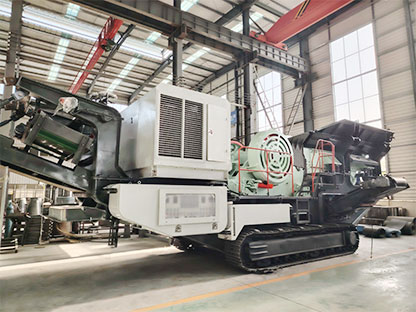

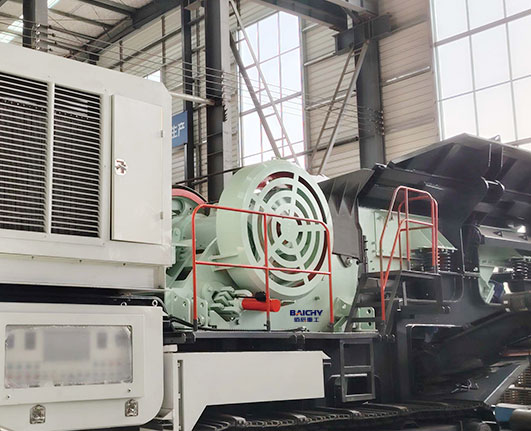

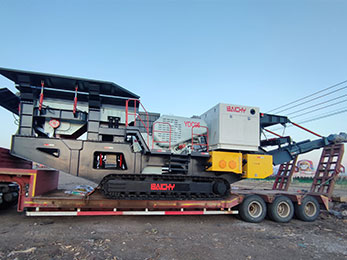

Ideal for Mobile Crushing Applications

Compact structure and lightweight design make the CJ Series perfectly suited for mobile crushing plants, enabling flexible deployment and easy relocation between job sites.
Quick and Easy Discharge Adjustment

Hydraulic or mechanical wedge adjustment system allows fast and convenient setting changes, minimizing downtime and simplifying maintenance operations.

Working principle

A Jaw Crusher uses compressive force to break hard stone material.

There two vertical manganese jaw plates create a V-shaped cavity called crushing chamber, where the top of the crushing chamber is larger than the bottom. The moving jaw moves back and forward against the fixed jaw, and material fed from the top chamber is compressed between the two jaws, breaking it into smaller pieces.

As the moving jaw moves away from the fixed jaw, the crushed material is discharged from discharge opening at the bottom. The required size is determined by the gap between the jaws.

Specification

Model	Feeder Opening Size(mm)	Max. Feeding Size(mm)	Discharging Opening Size(mm)	Eccentric shaft speed (r/min)	Motor Power (kw)	Capacity (t/h)

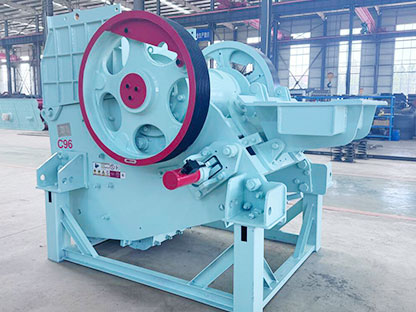

CJ96	580X930	480	60-170	290	75	60-160

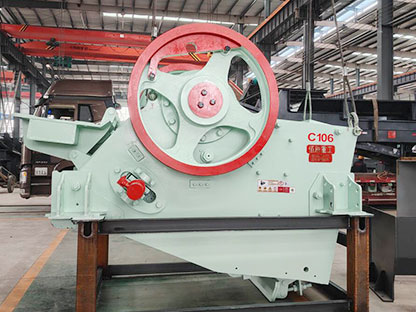

CJ106	700X1060	580	70-180	280	110	150-300
CJ116	760X1150	680	70-190	260	160	200-400
CJ120	870X1200	780	165-320	230	185	400-500
