Single-cylinder hydraulic cone crusher- Baichy Machinery

Product Center / Crushing Equipment / Single-cylinder Hydraulic Cone Crusher

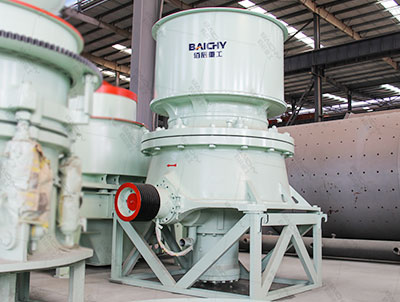

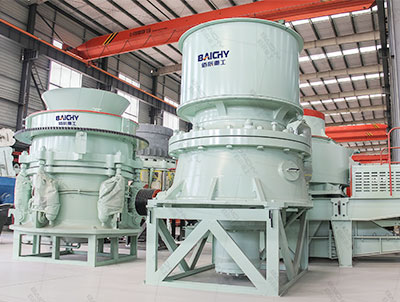

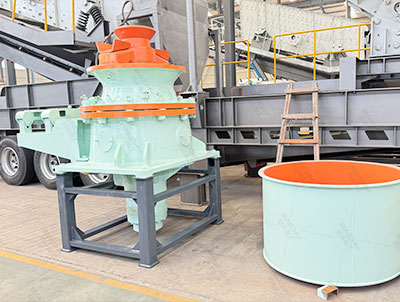

Single cylinder hydraulic cone crusher is a modern crushing solution for secondary applications. Featuring a robust main shaft and hydraulic support system, it delivers powerful crushing force and high throughput. Widely used in aggregates and mining.

50-300mmFeed Size
75-315KWMotor Power
40-1000tphProcessing capacity

Get Quotes Leave Message

60S Quick Response
30Min Technical Reply
24H Design Proposal
Email:hnbc@baichy.com

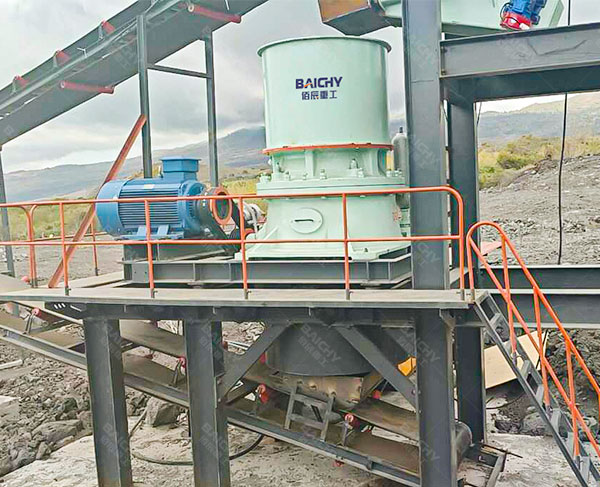

What is single-cylinder hydraulic cone crusher?

The single-cylinder hydraulic cone crusher realizes various functions such as discharge port adjustment, chamber cleaning, iron passing and overload protection through a single hydraulic cylinder to lift and lower the moving cone. Equipped with an electronic intelligent discharge port control system, more production process control and optimization functions are realized. DG cone crusher is suitable for crushing hard and medium hard ores and rocks, such as iron ore, copper ore, limestone, quartz, granite, basalt, diabase, etc.

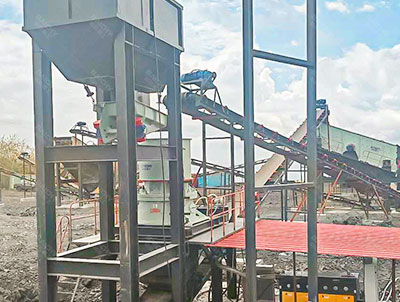

Why choose single cylinder cone crusher?

1. The upper and lower ends of DG cone crusher main shaft are supported. It can withstand greater crushing force and greater stroke, so that the machine has higher crushing efficiency.

2. The main shaft of the single-cylinder cone crusher is installed on the bottom hydraulic cylinder, and the bottom hydraulic cylinder can be adjusted up and down to change the size of the discharge port.. This makes the adjustment convenient.

3. The joint surface between the rolling mortar wall and the cone is stable and firm. It could be quick replacement of vulnerable parts without more filling supplements. The replacement time of wearing parts is saved.

4. Double safety control hydraulic and lubrication system can ensure overload protection of the machine and good bearing lubrication.

Get Price List

Product features

Simple Hydraulic Structure

Single-cylinder design reduces system complexity, improving reliability and making maintenance easier.
Compact Design with High Crushing Force

Single-cylinder design with large eccentric stroke generates exceptional crushing force in a compact footprint, simplifying foundation requirements and plant layout.
Hydraulic Setting Adjustment

Discharge opening can be adjusted under load via hydraulic system, allowing real-time product size control without stopping the machine.
High Crushing Efficiency

Optimized crushing chamber and hydraulic control improve throughput and stable performance.

Working principle

When the single-cylinder hydraulic cone crusher is working, motor drive the eccentric sleeve by v-belts, transmission shaft and transmission gear. Dynamic conerotary pendulum moved with the action of eccentric sleeve, the moving cone and fixed cone sometimes near sometimes deviation. Material is squeezed in the crushing cavity, impact and breakage, broken material discharge from the bottom.

working principle of hydraulic cone crusher

Specification

Model	Cavity Type	Max Feeding Size(mm)	Adjusting Range of Discharge Opening (mm)	Capacity (t/h)	Power (kw)
Standard Cavity Type
CH420 (DG100)	Extra Coarse - EC	155	10-32	46-128	90
	Coarse - C	103	10-32	13-118
	Medium - M	76	8-19	36-80
	Medium Fine - MF	58	6-16	36-71
	Fine - F	42	4-16	27-57
CH430 (DG200)	Extra Coarse - EC	185	13-38	69-208	160
	Coarse - C	150	13-38	66-197
	Medium - M	101	10-32	64-162
	Medium Fine - MF	86	8-25	61-126
	Fine - F	62	6-25	48-103
CH440 (DG300)	Extra Coarse - EC	220	16-44	114-395	220
	Coarse - C	175	13-44	1101-378
	Medium - M	157	13-38	97-328
	Medium Fine - MF	125	13-38	114-299
	Fine - F	80	8-32	90-251
CH660 (DG500)	Extra Coarse - EC	321	16-51	177-662	315
	Coarse - C	253	16-51	171-643
	Medium Coarse - MC	198	16-44	162-552
	Medium - MF	155	16-38	197-502
	Medium Fine - MF	133	13-38	192-451
	Fine - F	96	13-38	195-4
Extra Coarse Cavity Type
CH420 (DG100S)	Extra Coarse - EC	267	22-38	85-168	160
CH420 (DG100S)	Coarse - C	223	19-3	170-280	160
CHS430 (DG200S)	Extra Coarse - EC	320	25-54	126-344	160
CHS430 (DG200S)	Coarse - C	260	19-48	108-301	160
CHS440 (DG300S)	Extra Coarse - EC	400	29-51	267-601	250
CHS440 (DG300S)	Coarse - C	350	25-51	225-511	250
CHS660 (DG500S)	Extra Coarse - EC	622	41-83	349-1050	315
CHS660 (DG500S)	Coarse - C	556	38-70	318-892	315
