CI Impact Crusher

CI Impact Crusher

CI series impact crusher meets the needs of high-yield, energy-saving and environmentally friendly products. It is optimizing the rotor and crushing cavity type and could be used as primary crusher in mobile crushing plant and fixed stone cusher plant.

  • 250-800mmFeed Size
  • 160-1000kwMotor Power
  • 60-2000 tphProcessing capacity
  • 60S Quick response
  • 30 min Technical reply
  • 24h design proposal
  • Email:hnbc@baichy.com

What is CI series impact crusher?

CI series impact crusher is an upgraded version based on working structure of PF impact crusher. According to the differences in physical and chemical properties of different materials,the rotor and crushing chamber are refined design, so that the service life of the equipment is greatly improved. CI impact crusher is suitable for crushing medium hardness materials, and crushing ratio is large, crushing capacity is strong. It is suitable for stones with medium hardness and low abrasion such as river pebbles, granite, basalt, limestone, quartz, etc. in quarry and gravel, cement, concrete and asphalt recycling, slag recycling and other industries.
limestone gravel crusher granite crusher gravel

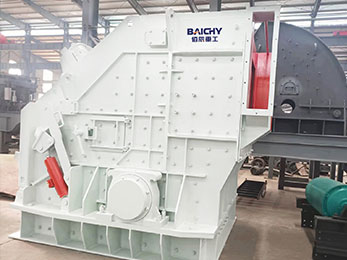

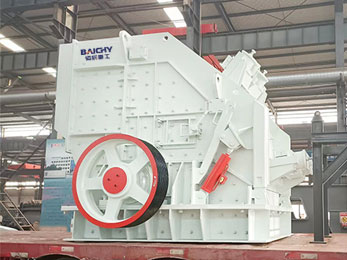

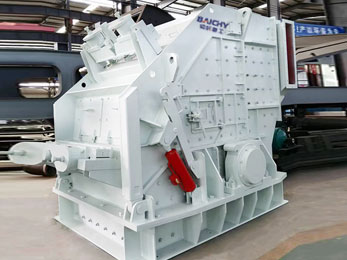

CI series impact crusher

Why choose CI impact crusher?

1.CI series impact crusher has a widened and enlarged feed port, which can directly feed large-diameter raw materials, adjustable discharge, large crushing ratio, high production efficiency, low wear and high comprehensive benefits.

2.Simplify the crushing process. The large-mouth impact crusher can perform coarse crushing or fine crushing, changing the original two-stage crushing into one-stage crushing process.

3.The use of hydraulic lifting and maintenance lifting devices can quickly complete the replacement of blow bars and other wearing parts, reducing downtime and equipment maintenance time, and reducing maintenance costs.

4.Integrated motor installation. The integrated motor installation is the standard configuration of CI series impact crusher. The motor frame and the crusher are integrated, which reduces the installation space of the crusher and the length of the V-belt.

Get Price List
  • High Quality

    Strong and heavy-duty rotor structure improves capacity and crushing ratio; high-quality welded structure ensures maximum impact and good crushing effect.

  • Customized Design

    Finely designed rotor and chamber type meets different application options for coarse crushing, medium and fine crushing and material recovery.

  • Good Performance

    The equipment is equipped with a variety of safety locking devices to improve safety performance and reduce labor intensity.

Product features

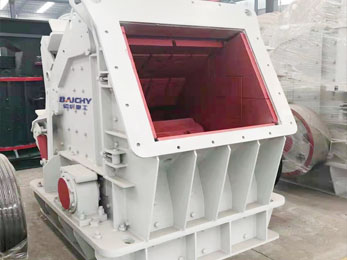

Large feeding port, high production efficiency and low wear. It can directly feed large size stone, the output can be adjusted, and the crushing ratio is large.

  • secondary crusher
  • stone impact crusher
  • impact stone crusher
  • CI impact crusher

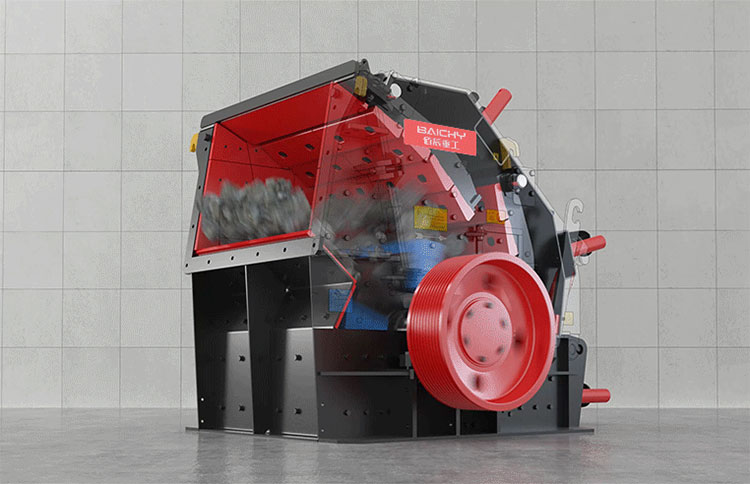

Working principle

 Impact crushers use high-speed impact to crush materials. When the material enters the action area of the blow bar from the feed port, it is first crushed by the high-speed impact of the blow bar, and the strong impact force throws the material to the impact plate for further crushing, and the material rebounded by the impact plate falls to the plate again. Continue to repeat the above process until the material is crushed to be smaller than the size of the discharge port, and it will be discharged from the discharge port due to its own weight.

How does impact crusher works?

Specification

Model

Max feeding

size(mm)

Power

(kw)

Capacity

(t/h)

Dimentsion

(mm)

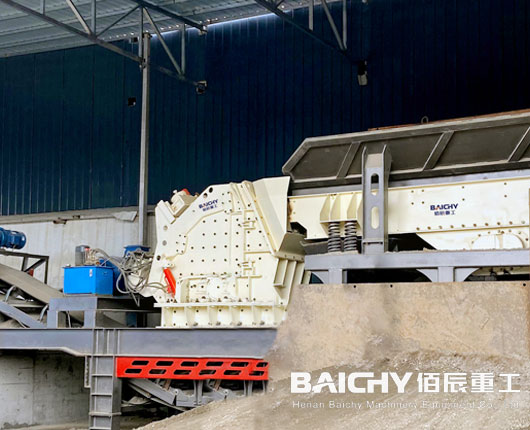

CI1110 250 160 60-210 2826×2087×2285
CI1213 300 200 80-280 2903×2530×2411
CI1316 300 250 100-350 3320×2770×2535
CI1521 350 2×(200-250) 200-600 3450×3620×2770
CI1313 600 200 100-480 2972×2560×2937
CI1415 600 250 120-600 2985×2790×3068
CI1620 800 2×(200-250) 220-900 4261×3480×3780
CI2023 800 2×500 400-2000 5151×4424×4712

*The output will vary according to different materials, feed particle size and other factors
