Ceramic ball mill-Baichy Machinery

Product Center / Powder Grinding Mill / Ceramic Ball Mill

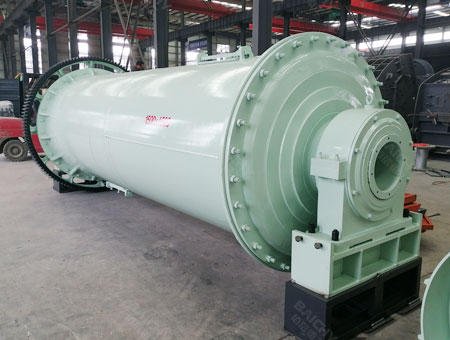

Ceramic lined ball mill is used to grind down raw materials into very fine particles. It is specifically designed for high purity material powder production.Raw materials such as feldspar, quartz, clay, kaolin and glaze can be ground down by high alumina

≤25mmFeed Size
18.5-800KWMotor Power
0.65–90 t/hProcessing capacity

Get Quotes Leave Message

60S Quick Response
30Min Technical Reply
24H Design Proposal
Email:hnbc@baichy.com

What is ceramic ball mill?

Ceramic ball mill is a kind of ceramic lined ball grinding mill, and the difference is that its lining board is made of high aluminium ceramic, which can be made intermittent or continuous, dry or wet grinding. Ceramic Ball mill is widely used in high purity and ultrafine processing of quartz, feldspar, zircon sand, zirconium silicate, ceramic material, electronic material and fireproof material etc.

Why choose dry type ball mill?

1.Ceramic ball mill mainly used to mix and grind the material, the final product has average fineness. It is suitable for ceramic, glaze and quartz industry which has strict requirements for the iron content.

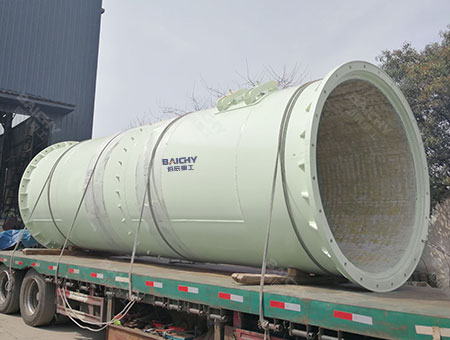

2.With wear-resistant ceramic liner and ceramic balls as grinding media, ceramic ball mill has high grinding precision and less metal impurities, which not only improves the service life of the equipment and the purity of materials, but also expands the application range.

3.According to different capacity, ceramic ball mill could be made into batch type and continuous type.

Get Price List

Product features

High Purity Output

The ceramic lining ensures zero iron contamination, making it ideal for high-purity applications like glass and chemicals. It prevents metallic impurities from entering the final product.
Excellent Wear Resistance

Equipped with high-density ceramic liners, the mill offers superior wear resistance. This reduces the frequency of maintenance and ensures a long service life even under continuous operation.
Energy Efficient Design

The mill is designed for low power consumption and high efficiency. Its lightweight drum and optimized motor system reduce energy costs while maintaining a steady and high grinding output.
Corrosive Material Handling

Unlike steel mills, ceramic components are highly resistant to chemical corrosion. This allows for the safe and effective processing of acidic or alkaline materials without damaging the unit.

Working principle

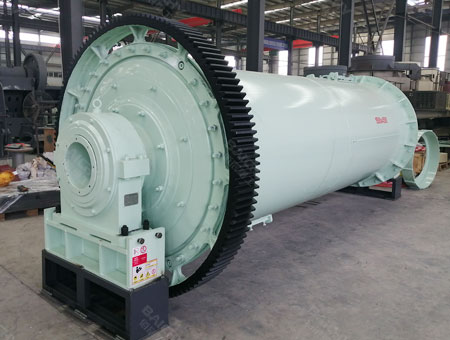

Ceramic lined ball mill machine is mainly composed of feeding part, discharging part, rotary part and driving part which includes reducer, small drive gear, electrical machine and electronic control. In powder grinding plant, ball mill grinding process flow includes crushing, milling, air classifying, packing, silos, bucket elevator, conveying,etc. Grinded material discharges from outlet grit fluently. Ball mill plant is formed a closed system to classify the final powder product with air classifier. Coarse material will be back to ball mill to grind again, and qualified material will go to be packed by worker or packing machine.Cleaned gas will be discharged by induced draft fans.

Specification

Model	Capacity(t/h)	Rotate speed(r/min)	Grinding Balls(t)	Motor Power(kw)	Gear box
Model	Capacity(t/h)	Rotate speed(r/min)	Grinding Balls(t)	Motor Power(kw)	Model	Speed Ratio
Ф1.2x4.5	1.6-5.8	30.3	5	55	ZD30	4.5
Ф1.5x5.7	3.5-6	26.34	11	130	ZD40	4
Ф1.83x6.4	6.5-15	23.9	21	210	ZD60	4.5
Ф1.83x7	7.5-17	24.5	23	245	ZD60	4.5
Ф2.2x6.5	14-20	21.4	31	280	ZD70	5
Ф2.4x7	17-28	20.4	39	380	ZD80	5
Ф2.4x8	20-35	20.3	42	570	ZD80	5
Ф2.4x12	35-45	20	63	800	MBY710	6.3
Ф2.4x13	35-38	19.4	68	800	MBY710	6.3
Ф2.6x13	40-55	19.5	82	1000	JDX800	6.3
Ф3x9	50-55	18.34	78	1000	JDX800	6.3
Ф3.2x9	60-70	17.6	95	1250	MBY900	7.1
Ф3.5x11	75-85	16.8	150	1250	JDX900	5.84
Ф3.8x12	85-110	17	175	1600	MBY800	5.6
Ф4.6x10+3.5	180-210	15	278	3550	JQS3500	15.1
