Sand Washing And Dewatering Machine

Product Center / Sand Making Equipment / Sand Washing And Dewatering Machine

A Sand Washing and Dewatering Machine is an advanced piece of equipment designed to clean, grade, and dewater sand and fine aggregates in a single, integrated process.

<10mmFeed Size
1.6-15kwMotor Power
30-250 t/hProcessing capacity

Get Quotes Leave Message

60S Quick Response
30Min Technical Reply
24H Design Proposal
Email:hnbc@baichy.com

What Is Sand Washing And Dewatering Machine?

A sand washing and dewatering machine is a specialized piece of equipment designed to remove impurities (mud, clay, dust, and light minerals) from raw sand while simultaneously reducing its moisture content. Unlike standalone sand washers (which produce wet sand requiring additional drying) or dewatering screens (which can’t remove fine impurities). This integrated system not only cleans sand effectively but also reduces moisture content to optimal levels, making it ready for immediate use or transport.

Sand Washing And Dewatering Machine Application

1. Sand and Gravel Pits: For producing high-quality concrete sand and mortar sand.

2. Crushed Stone Plants: To clean and dewater crusher dust (manufactured sand) to make it a valuable product.

3. Construction and Demolition (C&D) Waste Recycling: For washing and upgrading recycled concrete aggregate (RCA).

4. Industrial Sands: Processing silica sand, frac sand, and other specialized sands where low clay and moisture content are critical.

Get Price List

High Quality

Superior Cleaning & Quality. Effectively removes clay, silt, and impurities to produce high-purity sand that meets construction standards.
Customized Design

Excellent Dewatering Performance. Reduces moisture content to 8-15%, making sand ready for immediate use or transport.
Good Performance

Water & Cost Efficiency. Features closed-loop water recycling systems that minimize water consumption and operational costs.

Product features

Compact & Eco-Friendly Design. Combines washing and dewatering in one unit to save space while ensuring environmental compliance.

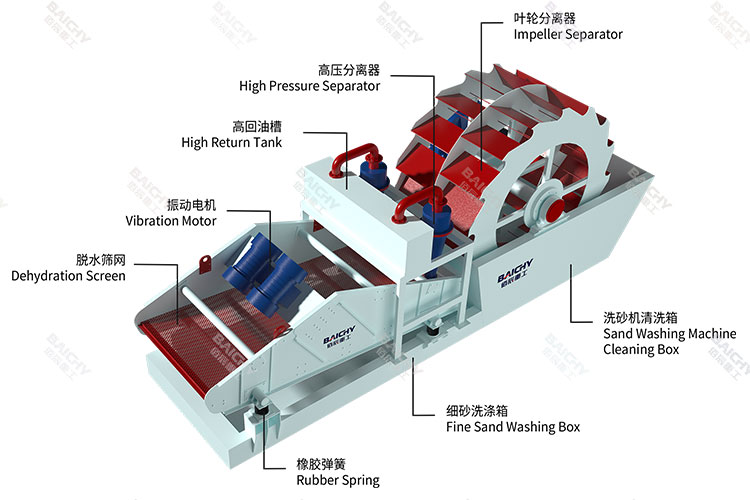

Working principle

After the pre-processed material enters the storage tank, the washing wheel starts to rotate through the motor and reducer, and the material is picked up from the water and passed through the mesh in the washing wheel. The water and the material below the mesh size are missing. During the rotation of the washing wheel, the material is in full contact with the water, and water is used to remove the impurities on the surface of the material. so the material is cleaner. Then the material enters the dewatering device and removes a lot of moisture through the vibrating screen, which makes the material more convenient to store and transport.

How does sand washing and dewarting machine work?

Specification

Model	Impeller Diameter (mm)	Impeller Width (mm)	Sieve Plate Spec(mm)	Cyclone Separtor Spec	Treated Water (m3/h)	Sand Output (t/h)	Total Power (kw)	Overall size(mm)
LX2600-35	2600	1200	2400x2400	350	<80	40-60	28	5600x5200x2700
LX3016-50	3000	1600	1500x3000	250x2	<120	60-95	44	6700x5500x2760
LX3016-70	3000	1600	1500x3000	350x2	<120	60-95	51	6700x5500x2760
