Spiral Sand Washer

Spiral Sand Washer

Spiral sand washing machine is used to remove the dust and stone powder in the sand produced by sand making machine, it also can do sand-selecting work or the similar process.

  • 500-2000mmFeed Size
  • 1.1-15KWMotor Power
  • 6-400 tphProcessing capacity
  • 60S Quick response
  • 30 min Technical reply
  • 24h design proposal
  • Email:hnbc@baichy.com

What is spiral sand washer?

Spiral sand washier is a kind of sand washing machine. It is used together with sand making machine and plays an important role in sand production plant. It mainly stirs the sand and gravel materials through the spiral blade to make the mud and impurities mixing with water to realize the cleaning and screening of sand stone material. It could be made single spiral and double spirals type.
sand washing machine

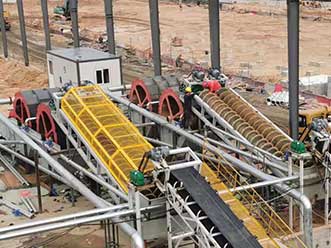

sand washing equipment

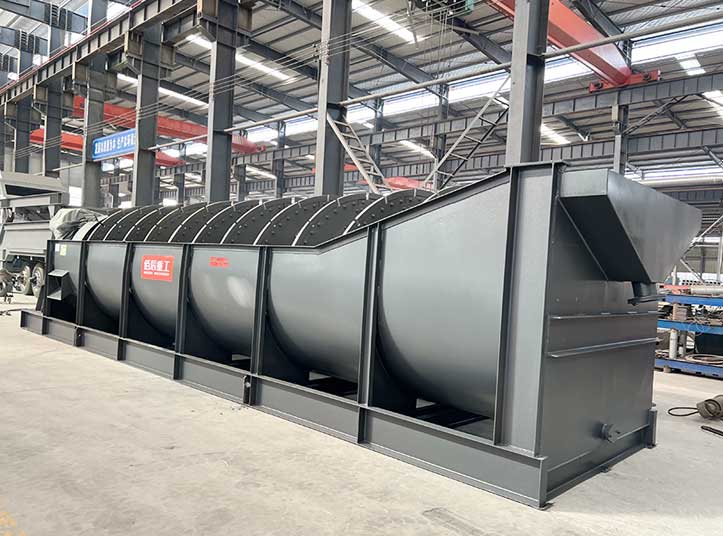

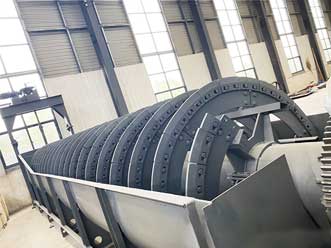

spiral sand washer

Why choose spiral sand washer?

Spiral sand washer is especially suitable for the washing, grading and impurity removal of medium, fine-grained and coarse-grained materials.

It can effectively clean the sand and gravel with serious mud impurities with a strong cleaning ability

It often used in large scale sand production lines due to great washing ability.

Get Price List
  • High Quality

    Spiral sand washer can process materials within 0-30mm and can wash the soil and ash powder on the material into clean materials.

  • Customized Design

    The spiral blades are made of wear-resistant materials, which ensure working continuity and reduce the running cost.

  • Good Performance

    Special sealing structure and adjustable overflow weir plate ensure sand washer more durable, with good cleaning and dewatering effects.

Product features

Spiral washing machine is mainly composed of washing tank, speed reducer, motor, main shaft, screw blade and lifter support. The structure is simple and has few parts.

  • silica sand washer
  • spiral sand washing machine
  • screw sand washing machine
  • spiral sand washer

Working principle

When the spiral sand washing machine works, the constant sharp motor drives the impeller to rotate slowly after the gear slows down through the triangle belt, the reducer and the gear decelerates. The sand and stone feed groove enters the washing tank, rolls under the drive of the impeller, and grinds each other to remove the impurities covered with sand and stone, and at the same time destroy the water vapor layer covered with sand particles in order to facilitate dehydration. At the same time, add water to form a strong flow, take away impurities and small dust.

how does sand washing machine work?


Model Spirals Qty
Screw Diameter
Feeding size

Water Consumption

LX762 1 762 <10 20-60 11 9-63
LX915 1 915 <10 30-100 15 10-80
2-LX915 2 915 <10 60-200 15*2 20-160
LX1115 1 1115 <10 40-120 22 20-150
2-LX1115 2 1115 <10 80-240 22*2 40-300

*The output will vary according to different materials, feed particle size and other factors
