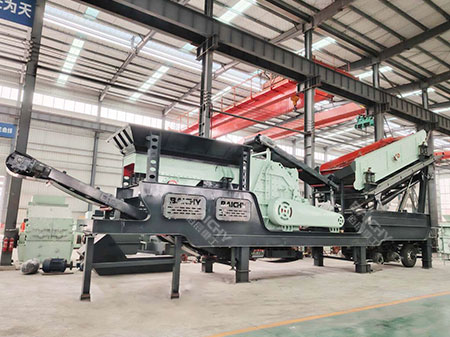

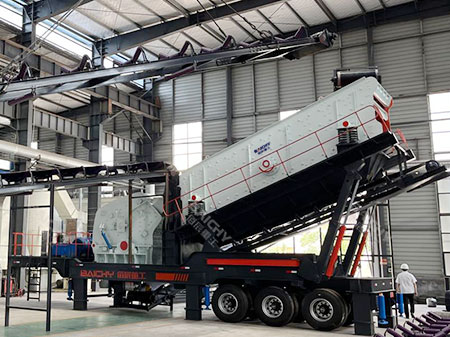

A complete mobile impact crusher plant integrates an impact crusher and vibrating screen on a wheeled trailer with high mobility and impact crushing technology. It is ideal for processing medium-hard rocks and recycling concrete into high-quality aggregates.

<500mmFeed Size
60-300 kwMotor Power
10-180 t/hProcessing capacity

Get Quotes Leave Message

60S Quick Response
30Min Technical Reply
24H Design Proposal
Email:hnbc@baichy.com

What is mobile impact crusher plant?

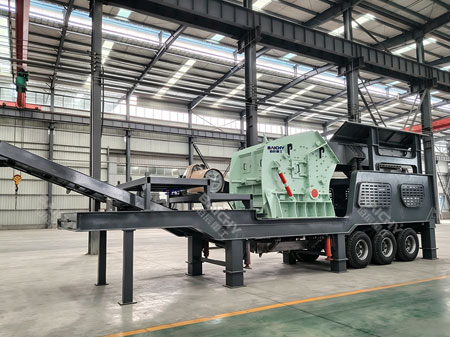

Mobile impact crusher, equipped with high performance impact crusher and screening equipment, or add a feeder as a primary crushing machine. Related crushing equipment, screening equipment, feeding and conveying equipment are installed on a mobile device, with lightweight and reasonable structure design. The quality guarantee is reliable and stable. The mobile impact crusher plant has the characteristics of high crushing efficiency, multi-functionality, excellent quality of crushing products and so on. It can meet the crushing and screening requirements of coarse, medium and fine materials.

How to choose mobile impact crusher?

There are two kinds of mobile impact crusher, crawler type and tire type. Different types of stationary impact crushers can be configured as required, or they can be mounted on the same vehicle together with the vibrating screen to realize the integration of crushing and screening. According to the working structure, which configuration should be selected, the user can consult Baichy engineer online, and we can provide you with model selection and crushing plant planning services for free.

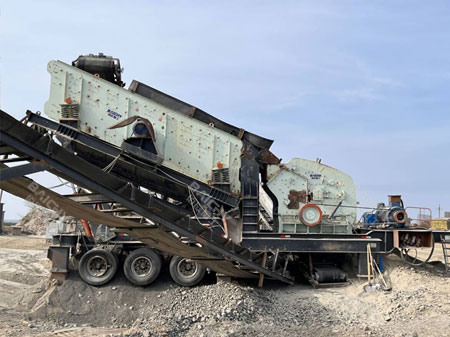

The mobile impact crusher does not need to make concrete foundation. It can be pulled and moved and be used immediately. The tire-type mobile impact crusher is pulled by a semi-trailer,which is convenient for narrow sites. Crawler-type mobile impact crusher plant can move by itself, and it can be remotely controlled. Compared with wheel type, the transition mobility is more flexible;

You can also choose a single impact crushing machine, or an integrated configuration of impact crushing and screening plant. The mobile impact crusher can also work together with other mobile equipment, and multiple units can work in parallel to form a graded crushing and mobile crushing production line.

The mobile impact crusher can be used alone, but if the particle size of the raw material is too large, it is usually used in combination with the mobile jaw crusher.

Get Price List

Product features

Convenient Highway Mobility

Its semi-trailer design allows for easy towing by a truck on public roads. This ensures rapid relocation between distant project sites while minimizing transportation time and logistic costs.
Integrated Closed-Circuit System

It combines crushing, screening, and conveying into one unit. This closed-circuit design ensures that all materials are processed to precise sizes in a single pass, maximizing efficiency.
Superior Aggregate Shape

The impact crushing mechanism produces aggregates with high cubicity and excellent grain shape, which is essential for meeting the strict quality requirements of modern road construction.
Rapid Setup and Maintenance

Equipped with hydraulic support legs and folding conveyors, the plant can be deployed within hours. The hydraulic opening system also provides easy access for fast wear-part replacement.

Working principle

How mobile impact cruhser plant works? In the mining and quarry industry, mobile impact crusher plant is usually as secondary crushing machine to process rocks or ores from priamry jaw crusher plant. After impact crusher machine crushing, precisely shaped cubical end products is feed to vibrating screen to get different size material, 0-5mm, 5-10mm, 10-20mm, 20-40mm or some other required size. Vibrating screen is designed to be same level with impact crusher. The oversized material from first layer could be fed to impact crusher directly to crush again. Other required size is sent to stock ground by belt conveyor. Compared to stationary stone crusher plant, iIt has good mobility and can extend together with the raw materials site or construction site and has many types of combinations to satisfy the processing needs of different materials.

Specification

Model (Primary Stage)	YDPZ57-8530	YDPZ80-8530	YDPZ69-9638	YDPZ96-9638	YDPZ75-1142	YDPZ106-1142	YDPZ116-1242	YDPZ116-1242
Vibrating Feeder	ZSW8530	ZSW8530	ZSW9638	ZSW9638	ZSW1142	ZSW1142	ZSW1142	ZSW1142
Jaw Crusher	PE500×750	C80	PE600×900	C96	PE750×1060	CJ106	CJ116	CJ116
Feeding Size(mm)	≤425	≤400	≤500	≤480	≤630	≤580	≤680	≤680
Belt Conveyor	B650	B650	B800	B800	B1000	B1000	B1000	B1000
Motor Power（kw）	7.5+45+4	7.5+55+4	11+55+4	11+90+4	15+110+4	15+110+4	15+132+4	15+132+4
Capacity (t/h)	40-130	50-160	90-180	60-160	110-380	150-300	200-400	200-400
Overall Size（mm）	10000x2300x4020	10000x2300x4020	11500x2300x4120	11600x2250x3710	12500x2550x4570	12850x2280x3950	13000x2550x4150	13000x2550x4150
Model (Secondary Stage)	YDPZ1210- 1548	YDPZ900- 1548	YDPZ1214- 1860	YDPZ160- 1860	YDPZ1315- 2160	YDPZ300- 2160	YDPZ1320- 2460	YDPZ400- 2460
Crusher	PF1210	PYB900	PFW1214	CS160	PFW1315	HP300	PFW1320	HP400
Feeding Size(mm)	≤400	≤115	≤430	≤205	≤500	≤210	≤500	≤250
Capacity (t/h)	70-130	50-900	100-180	109-349	130-220	110-380	160-350	180-560
Power（kw）	90	55	132	160	200	220	250	280
Vibrating Screen	3YK1548	3YK1548	3YK1860	3YK1860	3YK2160	3YK2160	3YK2460	3YK2460
Capacity (t/h)	30-275	30-275	65-586	65-586	81-720	81-720	100-810	100-810
Power（kw）	15	15	22	22	30	30	30	30
Belt Conveyor	B650	B650	B800	B800	B1000	B1000	B1000	B1000
Plant Capacity (t/h)	60-100	60-100	80-150	80-150	130-250	130-250	200-280	240-320
Overall Size（mm）	12500×2500×5600	12500×2500×5600	14500×2890×6600	14500×2890×6600	15500×2960×6850	15500×2960×6850	14500x2980x7170	16500×2960×7170
