Reversible Hammer Crusher-Baichy Machinery

Product Center / Sand Making Equipment / Reversible Hammer Crusher

A Reversible Hammer Crusher is a type of impact crusher characterized by its reversible rotor which can rotate and crush mid-hard material in both directions.It is used to crush coal, limestone, and gypsum ensuring uniform particles for power plants and q

<140mmFeed Size
90-560 kwMotor Power
25-350 t/hProcessing capacity

Get Quotes Leave Message

60S Quick Response
30Min Technical Reply
24H Design Proposal
Email:hnbc@baichy.com

What is Reversible hammer crusher?

Reversible impact hammer crusher, also called reversible crusher, is a kind of equipment for crushing raw coal, gangue, coal slime, sludge, weathered rock, sandstone, lime clinker, clay and other high-humidity materials. This crushing machine is mainly suitable for fine crushing, like limestone, coal or other brittle materials below medium hardness in industrial fields, such as metallurgy, building materials, chemical industry and hydropower.

Why choose reversible hammer crusher?

It has reasonable structure, equipped with the buffering and damping device. The machine body shocks small with lower noises and high strengthen.

Monitoring door are set reasonably. Hinges for upper and bottom machine body, open the upper cover by hydraulic controlling, convenience to maintain and inspect.

It is designed with regulating part to adjust the pre-tightening force of spring easily to control the discharging size effectively and satisfy the crushing ratio.

This crusher machine makes rotor rotate reversely, so it can prolong the service life of hammer and reduce the frequency of maintenance.

Get Price List

High Quality

Extended Wear Part Life.It dramatically increases the utilization rate of hammers, reducing the frequency of change-outs and lowering your cost
Customized Design

High Throughput & Uniform Particle Shape.The wide feed hopper and fast rotor speed prevent material bridging (clogging), maintaining steady throughput.
Good Performance

High Reduction Ratios. These crushers are capable of achieving very high reduction ratios in a single stage of crushing, simplifying your entire circuit layout.

Product features

Non-Clogging Design. The spacious crushing chamber and the action of the hammers make it highly resistant to clogging, even when processing materials with a moderate moisture content.

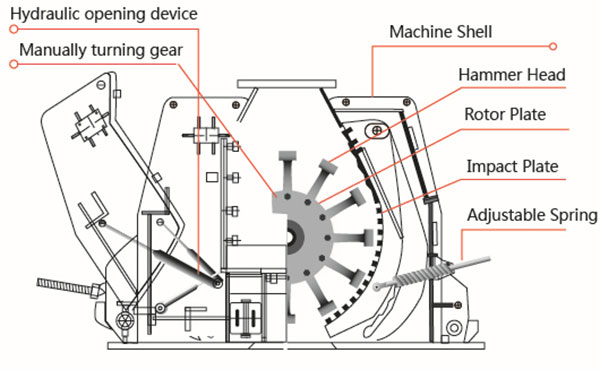

Working principle

After the falling material enters the reversible impact hammer crusher, it encounters the high-speed rotating hammer head; it is hit by the adjustable wear-resistant tooth plate at the entrance of the crusher for the first crushing, and the crushed materials have basically the same particles Evenly enter the main crushing cavity for secondary primary crushing, and the material particles that have been homogenized in the primary crushing cavity obtain kinetic energy from the hammer head again. It rushes to the sawtooth liner inside the impact chamber at high speed, rebounds upwards from the sawtooth liner, and is crushed by the hammer again. At the same time, the materials are also crushed by the impact of each other, and the cycle repeats. After repeated crushing in the counterattack cavity, the crushed materials are finally discharged from the discharge port, and the finely crushed materials are the final products.

reversible impact hammer crusher working principle

Specification

Model	Rotor size(mm)	Input Size (mm)	Output Size (mm)	Capacity (t/h)	Power (kw)	Overall Dimension (mm)
PCK1007	φ1000×700	<80	<15	25-40	45	2670×1665×1700
PCK1010	φ1000×1000	<80	<15	35-70	55	2670×1965×1700
PCK1012	φ1000×1250	<80	<15	70-90	55	2670×2215×1700
PCK1214	φ1250×1400	<100	<15	120-150	132	2830×2490×2200
PCK1416	φ1400×1600	<120	<15	160-250	160	3205×2845×2400
PCK1618	φ1600×1800	<140	<15	280-350	315	4550×3250×2680
