PCZ heavy hammer crusher is a single-stage crushing solution for medium-hard and brittle materials like limestone and coal gangue. It accepts large feed sizes and reduces them to finished product in one step, eliminating the need for secondary crushing and simplifying the overall process flow.

≤1200mmFeed Size
55-700KWMotor Power
100-700t/hProcessing capacity

Get Quotes Leave Message

60S Quick Response
30Min Technical Reply
24H Design Proposal
Email:hnbc@baichy.com

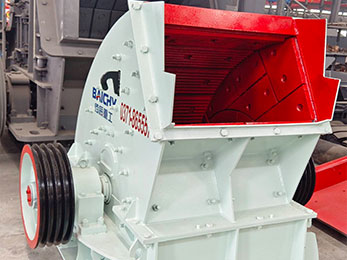

What is PCZ heavy hammer crusher?

Heavy hammer crusher is a kind of stone crushing equipment advanced technology in hammer crusher series. It adopts advanced production technology to realize one-time feeding and get finished products. Finished materials can be adjusted according to demand, coarse, medium, fine, all kinds of specifications are complete. it is suitable for crushing various medium-hard and brittle materials with compressive strength of the crushed material does not exceed 350 MPa, such as limestone, coal, salt, gypsum, alum, brick, tile, coal gangue, etc.

Why choose PCZ heavy hammer crusher?

1. With large crushing ration, heavy hammer crusher feeding granularity is large and discharge granularity is small. It could reduce the crushing stage and can save some equipment investment.

2. The heavy hammer crusher integrates coarse crushing and shaping functions when crushing stone. It does not need to go through the secondary crushing and shaping process.

3. With triple crushing force, the hammer head hits the material, the material hits the impact plate at high speed, and the stone rebounded by the impact plate hits the material hit by the hammer head. So PCZ hammer crusher can be more productive and energy-saving.

4. The heavy hammer crusher adopts a large blow bar to replace the hammer head of the original light hammer crusher. After optimized design, the kinetic energy is greater and the service life is longer.

Get Price List

Product features

Single-Stage Crushing

Achieves once-forming crushing that replaces traditional multi-stage systems, reducing equipment investment and operational costs.
Large Feed Capacity And Output

Accepts feed materials up to 1200mm directly and delivers high production capacity, significantly boosting overall plant throughput and efficiency.
Durable Hammerheads for longer Life

AMC alloy or high-chromium composite hammerheads extend service life, reducing wear part replacement frequency and lowering production costs.
Adjustable Discharge Size

Discharge size can be adjusted from 3-150mm to produce various specifications, with well-shaped cubic products and low powder content for construction and aggregate use.

Working principle

Motor drives the rotor quickly in the crushing cavity. When the materials get into the working area of hammers, the rotating hammers with high rotation speed are crushing them.

Without the grate design, wet and much soil raw material will not clogged. Finally, the finished porduct through the outlet smoothly.

PCZ heavy hammer crusher working principle

Specification

Model	Feeding Size (W*L)(mm)	Rotor Size (Dia.xL)(mm)	Input Size(mm)	Power(KW)	Capacity(t/h)	Overall Dimension (mm)
PCZ-0808	800×500	850×790	≤450	2×37	50-90	1760×1700×1540
PCZ-1308	850×800	1310×790	≤600	2×55	100-160	2818×2100×2390
PCZ-1310	1000x800	1310x1000	≤600	2×75	120-180	2818×2300×2390
PCZ-1510	1000×850	1500×950	≤700	2×132	160-210	3260×2370×2750
PCZ-1512	1210×900	1500×1160	≤750	2×160	220-350	3260×2580×2750
PCZ-1615	1500×1200	1650×1452	≤1000	2×200	350-500	3456×2915×3185
PCZ-2016	1500X1400	2000×1500	≤1200	2×315	500-800	3880×2990×3560
