Double Roller Crusher

Product Center / Sand Making Equipment / Double Roller Crusher

Double roller crusher is a compression crushing machine using two counter-rotating rollers to process coal, limestone, and soft to medium-hard materials with uniform particle size and low over-crushing. Depending on the requirements, the rolls are smooth or toothed.

≤100mmFeed Size
11-90KWMotor Power
10-85 t/hProcessing capacity

Get Quotes Leave Message

60S Quick Response
30Min Technical Reply
24H Design Proposal
Email:hnbc@baichy.com

What Is Roller Crusher?

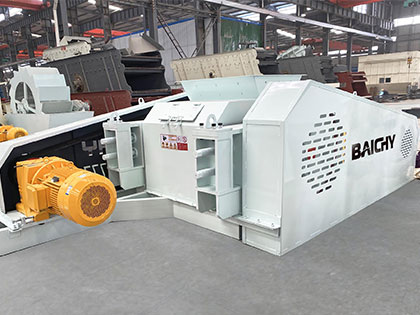

A double roller crusher is a crushing machine that uses two counter-rotating rollers to compress and crush materials between the roller surfaces. Compared with traditional crushing equipment, the roller crusher provides gentle crushing performance with a lower over-crushing rate. The distance between the two rollers can be adjusted, allowing operators to control the discharge size efficiently. With a compact structure, adjustable discharge size and stable operation, it is widely used in sand making plants, coal crushing systems and mineral processing plants. Baichy provides customized smooth roller crusher and toothed roller crusher solutions according to material, capacity and final product sizes.

Why Choose Roller Crusher?

Double roller crusher is suitable for various fine crushing requirements requiring controlled crushing and uniform particle size.

1. Sand Making Plants. The roller crusher can be used for fine crushing of limestone, river stone, quartz and other materials to produce qualified sand-making feed materials. In middle-east, Baichy's double roller crusher is applied to make high-quality manufactured sand using limestone as raw material.

2.Coal Crushing. The low-impact crushing method helps reduce excessive powder generation and is suitable for coal preparation and power plant applications. Baichy supplied a double-roller crusher in Indonesia for coal crushing , handling soft, medium-hard coal with uniform output size. The unit runs stably with low powder generation and helps the customer reduce maintenance cost in daily coal processing.

3.Mining and Mineral Processing.The roller crusher can be used for secondary and fine crushing of various mineral materials with suitable hardness.Baichy exported doule roller crusher for secondary fine crushing processng in stone crusher plant

Get Price List

Product features

Adjustable Discharge Size

Double roller crusher allows easy roller gap adjustment, providing flexible output size control for different crushing applications.
Stable Performance

Simple structure and durable components ensure reliable operation, easy maintenance and less production downtime.
Lower Over-Crushing Rate

The compression crushing principle produces uniform particles, reduces unnecessary powder generation and improves final product quality..
Customized Solution

According to material, capacity and final product requirements,Baichy provides smooth roller crusher, tooth roller crusher, hydraulic type roller crusher etc.

Working principle

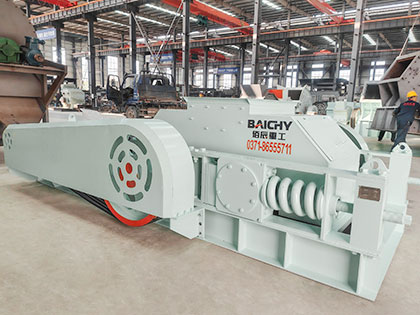

The materials to be crushed fall from the feeding mouth to the space between the two rolls.After being squeezed and crushed, the final products will naturally fall. When there are too hard materials or materials that cannot be crushed, the rolls of the roller crusher will automatically withdraw under the effect of hydraulic cylinder or spring to increase the gap between the rolls, and the too hard materials or the materials that cannot be crushed will fall down.Thus protecting the machine from being damaged. There is a certain gap between the two rolls that rotate at the opposite direction, and the maximum discharging granularity of the final products can be controlled by changing this gap. Double roller crusher's the materials by relying on the two round rollers rotating at the opposite direction, and four-roll crusher crushes the materials by relying on the two pairs of round rollers rotating at the opposite direction.

Specification

Model	Roller Diameter (mm)	Roller Length (mm)	Feeding Size (mm)	Capacity (t/h)	Motor Power (kw)
2PG-400X250	400	250	≤ 25	2-10	2*5.5
2PG-610X400	610	400	≤ 30	5-20	2*15
2PG-610X750	610	750	≤ 30	5-30	2*18.5
2PG-750X500	750	500	≤ 35	10-40	2*18.5
2PG-800X600	800	600	≤ 40	12-50	2*22
2PG-800X800	800	800	≤ 40	20-60	2*37

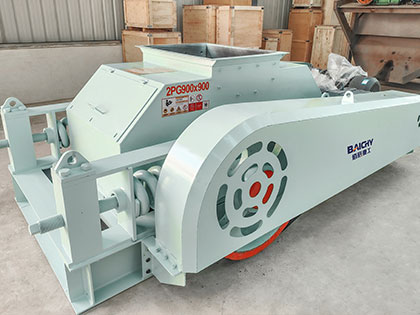

2PG-900X900	900	900	≤ 50	30-70	2*37
2PG-1000X1000	1000	1000	≤50	50-100	2*45
2PGY-1200×1000	1200	1000	≤50	60-120	2*75
2PGY-1200×1200	1200	1200	≤60	80-150	2*90
2PGY-1500×1000	1500	1000	≤80	90-200	2*132
2PGY-1800×1000	1800	1000	≤ 100	130-250	2*220
