Dolomite Grinding Mill Plant

A dolomite grinding mill plant is an industrial facility dedicated to processing dolomite into fine powder for various applications.

High-quality dolomite with consistent composition and low impurity content is essential for the production of high-quality dolomite powder. Therefore, the selection and pretreatment of raw materials are crucial steps in the plant.

About Dolomite Grinding Mill

Dolomite with hardness 3.5-4 and specific gravity 2.85-2.9, widely distributed in nature. Dolomite is a carbonate mineral, including iron dolomite and manganese dolomite. Dolomite is usually off-white in color and resembles limestone in appearance. It is widely used in building materials, ceramics, glass and refractory materials, chemical and agriculture, environmental protection, energy saving and other fields.

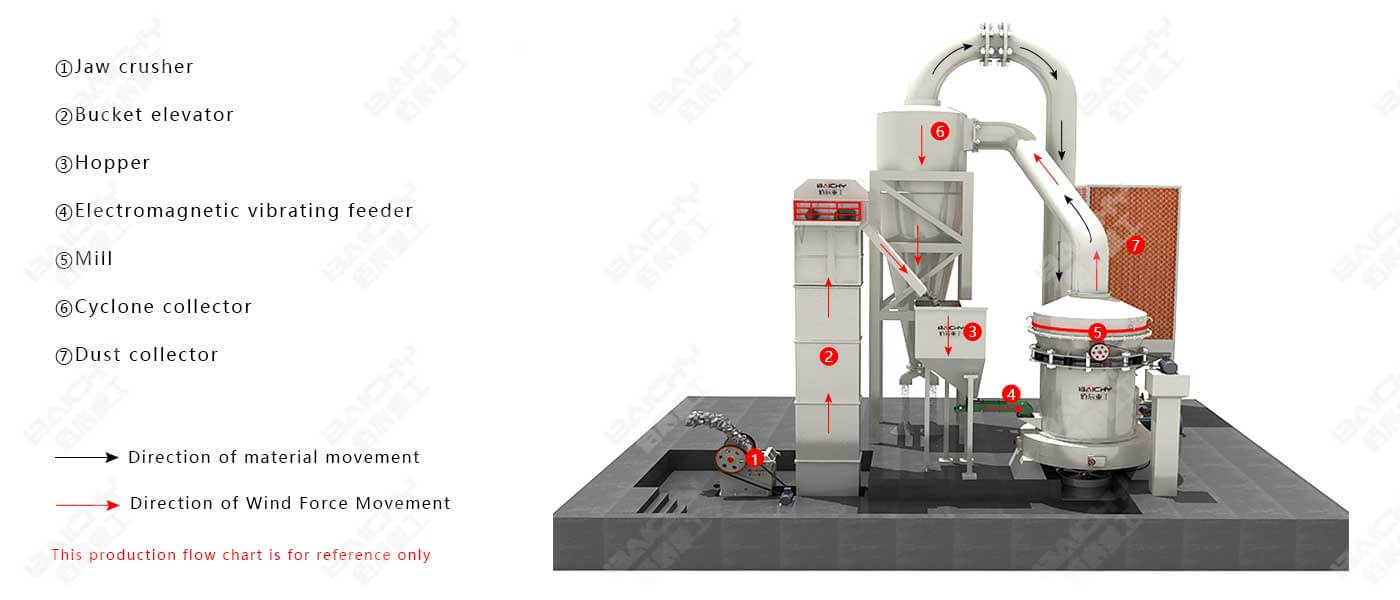

The complete dolomite powder grinding plant are composed four stages - crushing, grinding, powder classifiaction and packaging.

1. Crushing stage. Large material is broken by stone crusher to the fineness of feeding into raymond mill ( around 25 mm).The comment crushing machine is jaw crusher and hammer mill crusher.

2. Grinding stage. Small granulaty that meets grinding requirement enter raymond grinding mill evenly and quantitatively through feeding system, and grind into powder in grinding chamber. Inside the grinding chamber, the dolomite is ground by the raymond grinding mill under the action of grinding rollers.

3. Classification stage. The material after grinding is graded by separator with the air flow system. The unqualified powder is graded by separator and returned to grinding chamber for re-grinding. The qualified fine powder passes through the classifier and enters a cyclone collector.

4. Powder collecting stage. The fine powder collected by the cyclone collector is discharged from the pipes into a storage silo. Finally, the dolomite powder is packaged for storage and transportation.

Grinding Mill Plant Specification Sheet

Capacity		1-2 tph	2-4 tph	4-7 tph	7-12 tph	12-20tph
Raymond mill	Model	YGM75	YGM95	YGM130	YGM160	YGM190
	Main grinder(kw)	18.5	45	90	132	185
	Blower(kw)	15	37	90	132	185
	Classifier(kw)	2.2	5.5	7.5	15	22
Jaw crusher	Model	PE150X250	PE200X350	PE250X400	PEX250X750	PEX250X750
Jaw crusher	Motor(kw)	5.5	7.5	15	22	22
Bucket elevator	Model	T210X7m	T210X7.5m	T250X10m	T315X10m	T400X10m
Bucket elevator	Motor(kw)	3	3	4	4	4
Feeder	Model	GZG-2	GZG-4	GZG-4	GZG-5	GZG-5
Feeder	Motor(kw)	0.06	0.15	0.15	0.45	0.65
Silo	Customized according to actual situation

* The output will vary according to different materials, feed particle size and other factors

Dolomite Powder Mill Plant Features

1. Reasonable layout, small area. Compact structure design, vertical structure, small area. It has own production system.

2. Energy saving, stability and high efficiency. The production line has high output and stable operation. It adopts isolated cyclone powder collector, which can effectively improve the efficiency and precision of powder selection.

3. Simple operation and maintenance. Important parts are made of high quality steel, the whole machine durable and reliable. Superior performance, stable air volume and pressure, low failure rate, more convenient installation and debugging.

4. Green environmental protection, no dust spillover. Using negative pressure system, no dust pollution. Feeding system, grinding system and finished product conveying system are equipped with efficient dust removal device to achieve dust-free operation.
