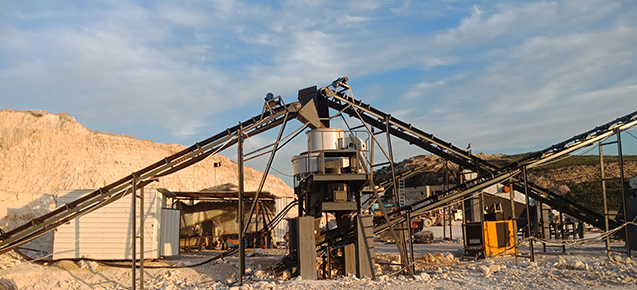

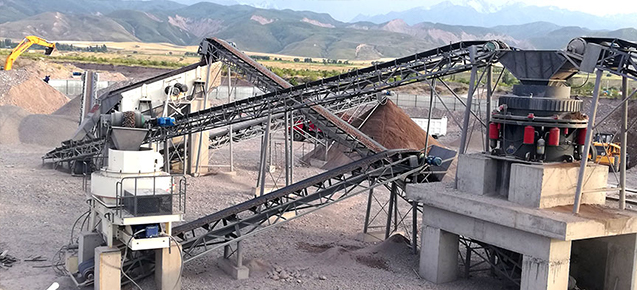

150-250tph Sand making plant

If you are looking for related products or have any other questions, do not hesitate to call our sales line or click on the right button to request a quote online. Phone:+0086-371-86555722, Whatsapp/Wechat:+0086-15093113821, Email:hnbc@baichy.com

Equipment configuration	Hopper, ZSW1100x4200 vibrating feeder, PE750x1060 jaw crusher， HPC300/CS220 cone crusher (or impact crusher), VSI1145 sand making machine, Vibrating screen, Sand recycling machine, Belt conveyor.
Raw materials	Limestone, Granite, Basalt, Quartz, River stone etc.
Feed Size	less than 630mm
Capacity	180-220t/h
Finished product	fine sand 0.25-0.35mm, medium sand 0.35-0.5mm, coarse sand 0.5mm
Application	in sand quarry, mine, construction site, highway, road and bridge construction, concrete mixing station, water conservancy and hydropower, chemical industry and other industries.
Advantages	High production efficiency and low operating cost; Multi-functions and Flexible application; Good shape of finished sand and fineness is adjustable.

150-250tph Sand making plant introduction:

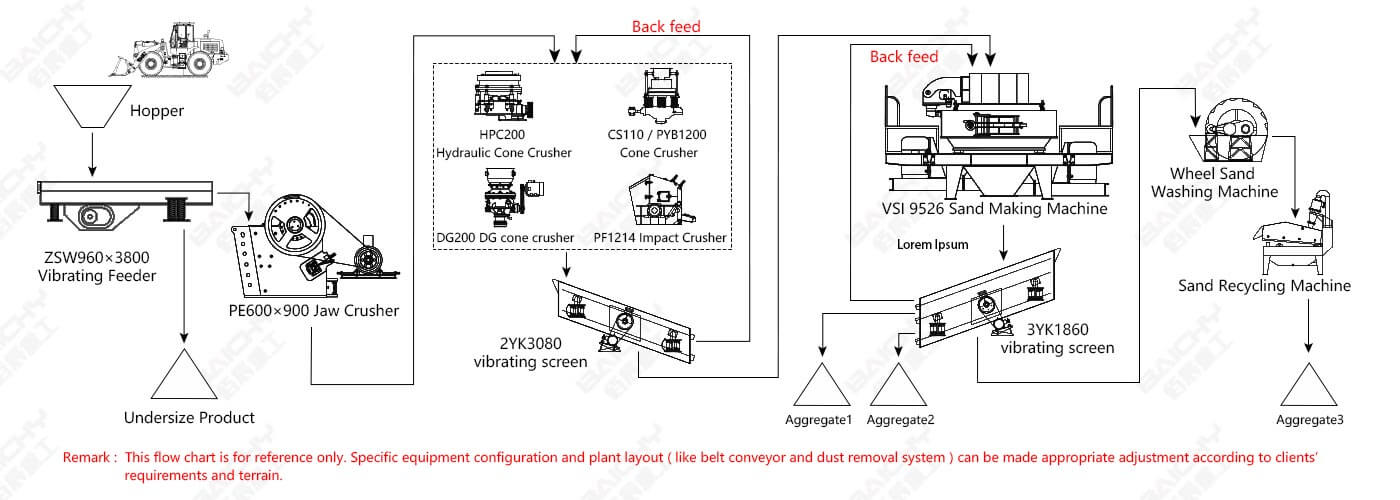

1. Crush and screen process
Raw stone materials go to Jaw crusher for primary crushing. Then the materials are transferred by the belt conveyor to secondary crusher ( impact crusher or Cone crusher) for further crushing. Vibrating screen will grade the materials, where stones that meet the granularity standard will be sent to VSI crusher (sand-maker), while the rest will be returned to crush again. Materials that don’t meet the required particle size will be sent back to the sand maker for further process or as final aggregate products. In wet type, the screen could be add a water-spraying system to remove the impurities in advance.

2. Sand washing process

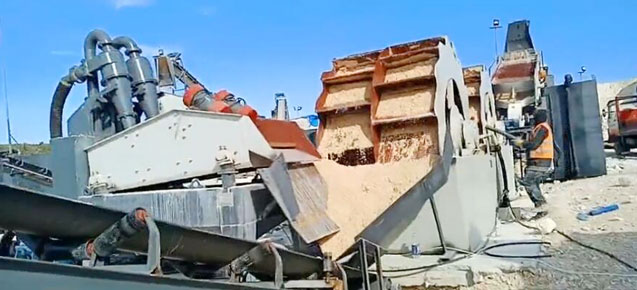

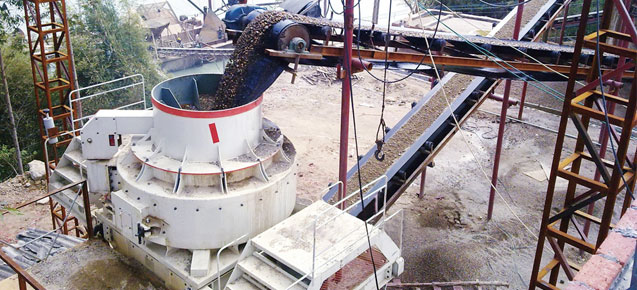

Part of the stones processed by VSI crusher (sand maker) will be made into sand and become sand products after being washed by sand washing machine and sand recycling machine. The sand washing machine could choose wheel type or spiral ty pe based on the site situation. Sand dewartering and recylcing machine is to help get fine sand and prevent sand loss. Filter machine and sand dryer is optional too according to demand. After the washing process, we get the finished products.
