Product Center / Crushing Equipment / Symons Cone Crusher

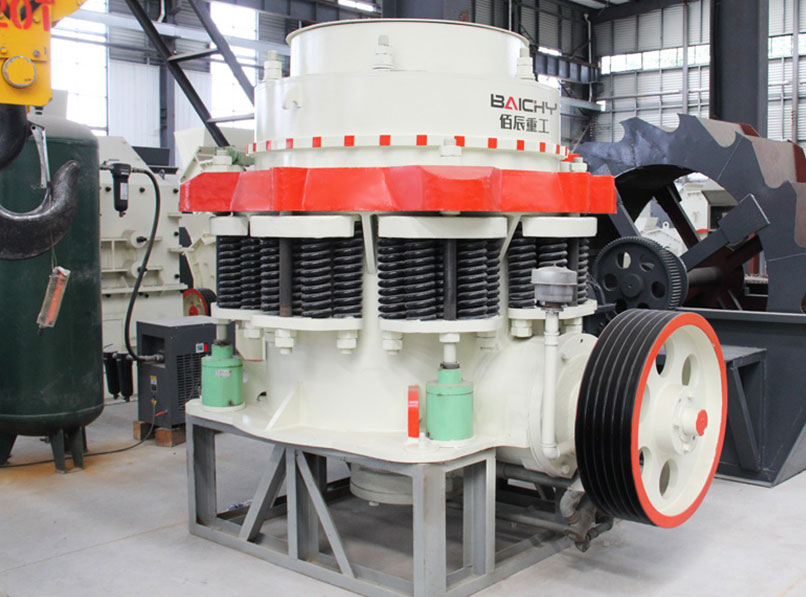

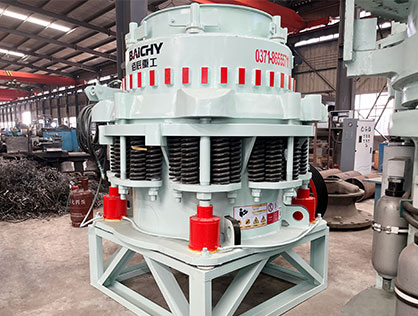

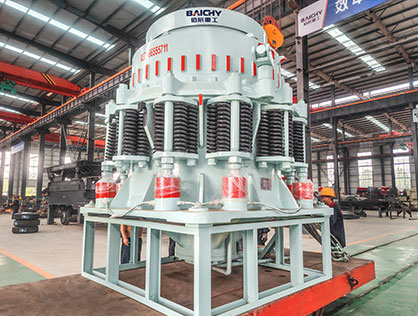

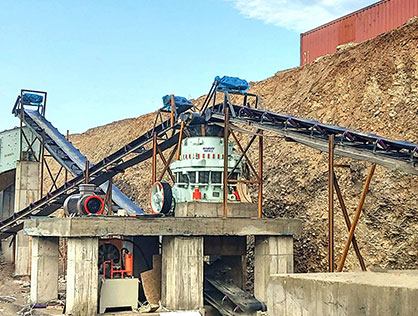

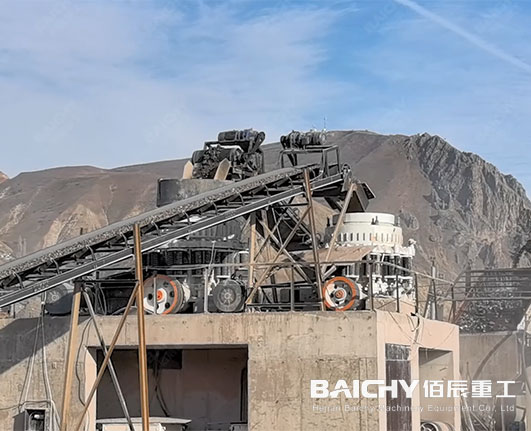

CS Symons cone crusher is a high-efficiency cone crusher widely used for secondary and fine crushingin mining, quarry and aggregate production. It applies laminated crushing principle to maximize performance for hard materials like iron ore and granite.

80-200mmFeed Size
75-315KWMotor Power
30–800 t/hProcessing capacity

Get Quotes Leave Message

60S Quick Response
30Min Technical Reply
24H Design Proposal
Email:hnbc@baichy.com

What is Symons Cone Crusher?

Simmons cone crusher is an improved, optimized and updated replacement product of spring cone crusher. Based on the principle of laminated crushing, it has developed into a modern high-performance cone crusher integrating high swing frequency, optimized cavity shape and reasonable stroke. CS cone crusher is suitable for various coarse, medium and fine materials whose compressive strength does not exceed 350MPa, such as river pebbles, granite, basalt, iron ore, shale, limestone, coal gangue, quartz, diabase, marble, copper ore, pebbles, etc.

Why choose Symons cone crusher?

1. Through the optimized design of the cavity and the combination of reasonable speed and stroke, CS cone crusher can perform the most work under the same diameter of the moving cone. Therefore, compared with the same type of spring cone crusher, it has higher performance and production capacity.

2. Based on the principle of lamination crushing, the proportion of cubes in the crushed s tone product is significantly increased, the needle-like stones are reduced, and the particle size is more uniform.

3. When unbreakable materials enter cone crusher crushing chamber, high-performance alloy steel springs are used as advanced overload protection system, it can effectively protect machine safety.

4. The automatic control system adopts large-diameter main shaft, heavy-duty main frame and independent thin oil lubrication system to ensure that the equipment is durable and reliable in operation.

Get Price List

Product features

Proven Symons Design Stability

Classic structure ensures reliable operation, stable crushing performance, and mature technology with low failure rate.
Hydraulic Cavity Cleaning System

Hydraulic cleaning system quickly clears the crushing chamber if non-crushable objects enter, significantly reducing downtime and simplifying maintenance.
Reliable Overload Protection

Spring release system allows tramp iron to pass through safely and automatically resets to original discharge setting, protecting key components from damage.
Durable Wear-Resistant Parts

High manganese steel liners and robust frame extend service life under heavy-duty mining conditions.

Working principle

Symons Cone crusher is a compression type of stone crusher. The feeding rock is crushed by squeezing or compressing the feed material between a wear resistant mantle and a manganese concave or a bowl liner. The mantle is a moving part that gyrates in an eccentric motion though an eccentrically gyrating spindle.

When rock enters the top of the cone crusher, it is squeezed between the mantle and the bowl liner or concave, as the eccentric spindle rotates to cause the compression within the chamber. The material gets smaller as it moves down through the wear liner as the opening in the cavity gets tighter. Large pieces of ore are broken once, and then fall to a lower position where they are broken again. This process continues until the pieces are small enough to fall through the narrow opening at the bottom of the crusher. Final sizing and reduction is determined by the closed side setting or the gap between the two crushing members at the lowest point.

The Symons cone crusher is adjusted by spinning the bowl up or down manually or through hydraulic rams. A series of powerful springs give the necessary tramp protection without damage to the crusher.

Specification

Model	Moving Cone Diameter(mm)	Cavity Type	Adjusting Range of Discharge Opening（mm）	Max feeding size (mm)	Capacity (t/h)	Motor (kw)	Overall size (mm)
CS75	900(3')	Coarse	25-38	150	59-163	75	2450×1820×2100
CS75	900(3')	Medium	13-38	85	45-91	75	2450×1820×2100
CS75	900(3')	Fine	6-22	35	27-90	75	2450×1820×2100
CS110	1200(4')	Coarse	15-50	180	110-250	110	2485×2050×2445
CS110	1200(4')	Medium	10-38	130	80-180	110	2485×2050×2445
CS110	1200(4')	Fine	10-31	90	63-140	110	2485×2050×2445
CS160	1295(4 1/4')	Coarse	19-50	205	172-349	160	2885×2320×2855
CS160	1295(4 1/4')	Medium	16-38	178	132-253	160	2885×2320×2855
CS160	1295(4 1/4')	Fine	13-31	115	109-181	160	2885×2320×2855

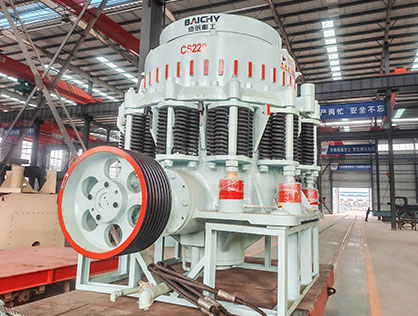

CS220	1400(4 1/2')	Coarse	30-60	235	210-530	220	3153×2358×2750
CS220	1400(4 1/2')	Medium	22-45	180	180-475	220	3153×2358×2750
CS220	1400(4 1/2')	Fine	19-40	100	130-260	220	3153×2358×2750
CS250	1650(5 1/2')	Coarse	30-60	228	299-635	250	3410×2620×3350
CS250	1650(5 1/2')	Medium	25-50	205	258-417	250	3410×2620×3350
CS250	1650(5 1/2')	Fine	20-45	178	181-327	250	3410×2620×3350
CS315	2135(7')	Coarse	31-64	314	1125-1814	400	4613×3302×4638
CS315	2135(7')	Medium	25-51	284	862-1424	400	4613×3302×4638
CS315	2135(7')	Fine	19-38	236	544-1034	400	4613×3302×4638
