Sand Recycling Machine

Sand Recycling Machine

Fine sand recycling machine, also known as fine sand collection machine, fine sand extraction machine, fine sand recovery machine etc.It could be used for dewatering, removing and removing mud materials.

  • 50-300 m3/hFeed Size
  • 1.5-6KWMotor Power
  • 50-300 m3/hProcessing capacity
  • 60S Quick response
  • 30 min Technical reply
  • 24h design proposal
  • Email:hnbc@baichy.com

What is sand recycling machine?

The main function of the fine sand recovery machine is to clean, dehydrate and classify the sand and gravel. It can well recover a large amount of fine sand lost by the sand washing machine in the traditional sand making industry. Not only improve economic benefits, it also reduces the treatment cost of tailings, and avoid damaging environment because of fine sand loss will cause pollution.

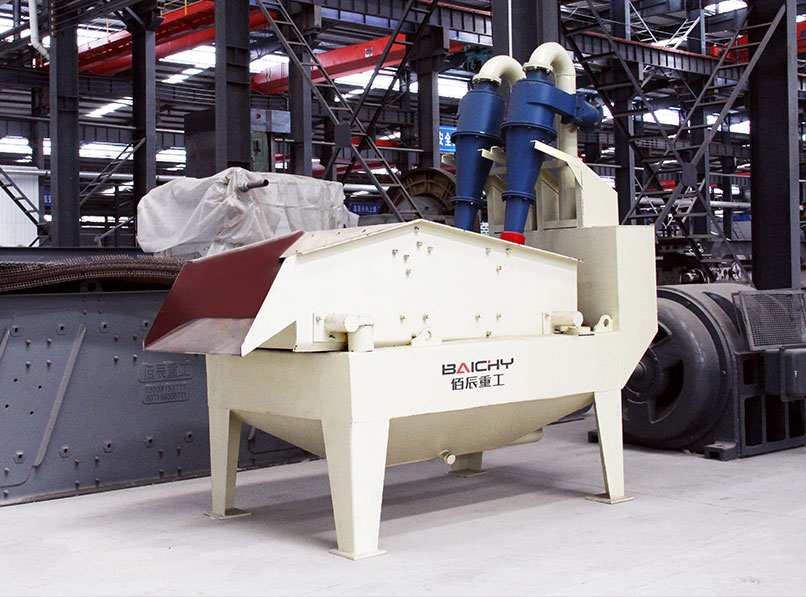

sand recycling machine sand dewatering machine

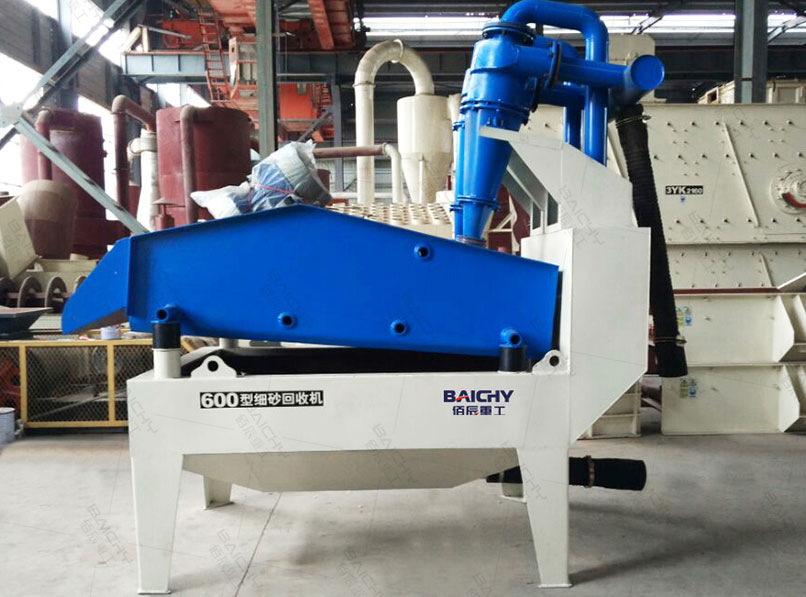

fine sand recyling machine
sand recycling machine sand dewatering machine

Why choose sand recycling machine?

The fine sand recycling machine can effectively reduce the loss of fine sand and the content of stone powder in the tail water, which solves the problem of high fineness mold of finished sand and low content of stone powder in the artificial aggregate processing system.

Fine particles are fully recovered, reducing the workload of cleaning cost of the sedimentation tank.

The vibrating screen produce by Baichy machinery adopts polyurethane screen with longer life than other types of screen, and will not block holes.

Get Price List
  • High Quality

    Effectively reduce the fine sand losing quantity.

  • Customized Design

    Reduce the amount of fine material piling up, can be directly transported to supply market.

  • Good Performance

    The vibrating screen is polyurethane screen cloth, which has longer life and smoothly finishes the work of condensing slime and clearing the liquid.

Product features

Making customerized machine according to different demands.

  • fine sand collection machine
  • sand extraction machine
  • fine sand reconvery machine
  • sand recycling plant

Working principle

The pump sends the sand and water mixture to hydrocyclone, the fine sand with eccentricity is sent to vibrating screen. The fine sand and water are effectively separated after dehydration, and little fine sand and mud go back to washing trough. When the liquid surface of the washing trough is high, the fine sand discharges from output opening. The linear vibrating screen can recover material with concentration 70%-85%. Adjusting fineness modulus can be realized by changing pump rotation speed, changing pulp consistency, adjusting overflow water and changing sand sinking mouth. By the process above, the fine sand recovery system can finish three functions, cleaning, dehydration and grading.

How does sand sand recyling machine work?

Specification

Model Pump Power
(kw)
Separator Spec
(mm)
Dewatering Screen Capacity
(m³/h)
Spec(mm) Power (kw)
FX250 11 250 800×2000 2×0.75 30-60
FX300 15 300 800×2000 2×0.75 60-100
FX350 18.5 350 1000×2000 2×1.5 70-130
FX550 22 250x2 1200×3000 2×2.2 100-220
FX650 30 300x2 1500×3000 2×3 120-272
FX750 37 350x2 1500×3000 2×3 180-350
FX900 55 300x3 1800×3600 2×4 450-650

*The output will vary according to different materials, feed particle size and other factors
