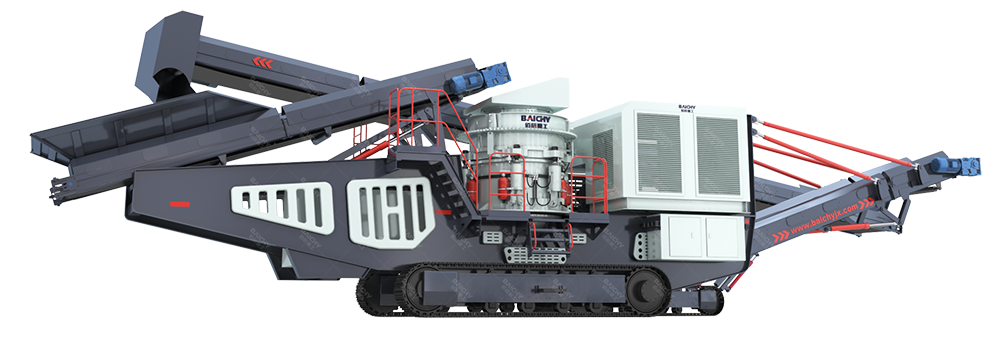

Track Mounted Cone Crusher - Mobile Cone Crusher Plant

Tracked Cone Crusher Introduction

The Track Mounted Integrated Cone Crushing and Screening Machine is a high-performance mobile crushing equipment integrating cone crushing, high-efficiency screening and self-propelled functions. It is specially designed for secondary and tertiary fine crushing of medium and high-hardness rocks as well as finished product screening. Moible cone crushing station is suitable for crushing and processing of natural stones and minerals with medium high hardness and high abrasion. This equipment integrates mechanical, hydraulic, electrical, automation and other technologies.

It has many advantages, such as high crushing efficiency, low production cost, convenient maintenance and adjustment, and excellent particle size of crushed products. It can show the characteristics of large energy production, good particle shape, low energy consumption, etc. in the secondary or tertiary crushing processing application of medium high hardness, medium high abrasive natural stone materials, such as granite, basalt, diabase, etc. This crushing equipment is not afraid of narrow terrain and harsh environment, and is the mainstream product in the construction industry and metal mining industry today.

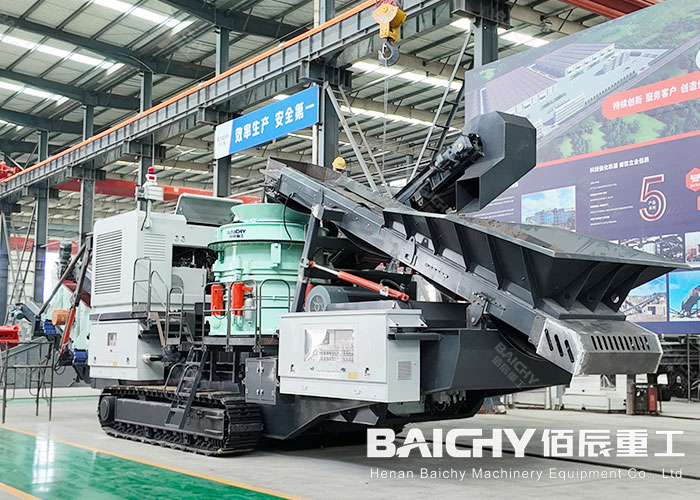

Crawler type mobile cone crusher

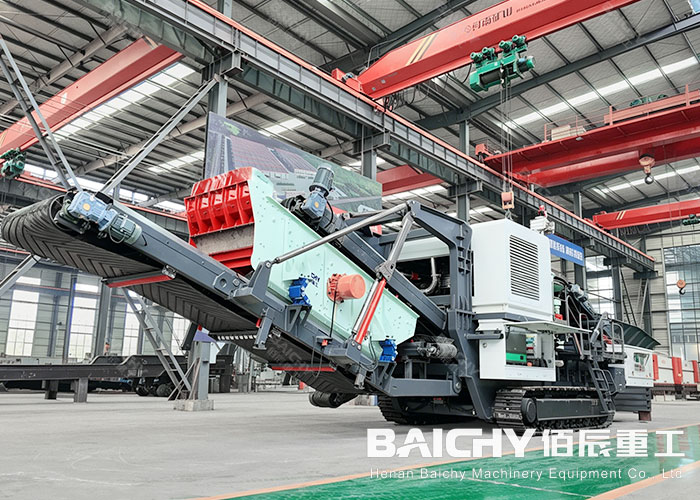

mobile cone crusherpant

Track Mounted Cone Crusher Plant Advantages:

1. High productivity and crushing efficiency

Equipped with an optimized cone design and advanced crushing mechanics, the hydraulic cone crusher delivers a consistent product size with minimal oversize material. Its high throughput makes it ideal for handling a wide range of materials, from medium-hard rocks to abrasive ores.
2. Compact structure and reliable performance

Mobile Cone Crusher Station integrates the superior vibrating feeder, crushers, vibrating screen, vehicle motor and control box as a whole, which makes the station have compact structure and reliable running.
3. Mobility & Flexibility

The track-mounted design allows the cone crusher to move easily between different job sites without the need for extra transport equipment. This mobility reduces setup time, lowers operational costs, and enables quick deployment in remote or confined areas.
4. User-Friendly Operation

Hydraulic adjustment, remote control, and simplified maintenance procedures make operation easier and safer. Downtime is minimized, and operators can quickly adapt settings to achieve the desired output size and efficiency.

Tech Datasheet

Model	Feeder	Cone Crusher	Main Discharge Belt	Inspection Screen	Discharge Belt Under Screen	Transition Belt1	Transition Belt2	Screen Front Side Discharge Belt	Return Belt Conveyor	Capacity
YMH20S	1000x7m	HP200	B1000x9.5m	2YK1436	B1200x6.5m	B500x2m	B500x2m	B500x4.5m	B500x8.2m	100-225t/h
YMH20	1000x7m	HP200	B1000x10m	—	—	—	—	—	—	100-225t/h
YMH30S	1000x7m	HP300	B1000x9.5m	2YK1436	B1200x6.5m	B500x2m	B500x2m	B500x4.5m	B500x8.2m	150-380t/h
YMH30	1000x7m	HP300	B1000x10m	—	—	—	—	—	—	150-380t/h
YMH40S	1200x8m	HP400	B1200x12m	2YK1545	B1200x6.5m	B650x2m	B650x2m	B650x4.5m	B650x9.2m	200-450t/h
YMH40	1200x8m	HP400	B1200x10m	—	—	—	—	—	—	200-450t/h

Working Principle of Integrated Mobile Cone Crusher Plant

Baichy track-mounted mobile cone crushing plant centered on the hydraulic cone crusher, integrating material feeding, crushing, conveying, and intelligent control into one self-propelled unit. Its full working principle unfolds as follows:

1. Material Feeding & Pre-Screening: Materials (medium-hard to hard ores/rocks) are fed into the unit via a belt feeder or grizzly feederMetso.The grizzly feeder pre-screens and removes fine materials ahead of crushing to improve efficiency and avoid over-crushingMetso. Fed materials are evenly guided into the crushing chamber to ensure stable loading.

2. Core Cone Crushing Process: Powered by hydraulic direct drive, the cone crusher's mantle rotates eccentrically, squeezing and shearing materials between the mantle and bowl liner for medium/tertiary crushing. Clears overload/non-crushable materials via hydraulic tramp release. Maintains consistent crushing force and chamber choke feed

3. Screening and Circulating Process: Crushed materials are conveyed to the screening equipment for grading. With 2 decked vibrating screen, qualified finished aggregates are discharged as final products; unqualified large-size stones are sent back to the cone crusher for re-crushing, forming a closed-circuit crushing and screening loop.

4. Power & Mobility: Driven by a diesel engine + hydraulic system to power crushing, tracks, and conveyorsMetso. Track-mounted chassis allows self-propelled movement on job sites; no fixed foundation is needed. Hydraulic track drive enables flexible positioning and relocation between sites. 5. Intelligent Control & Safety Automation system monitors load, temperature, pressure, and lubrication in real time. Remote controller permits safe, wireless adjustment of crushing settings.

Real Customer Case About Track-mounted Mobile Stone Crusher Plant

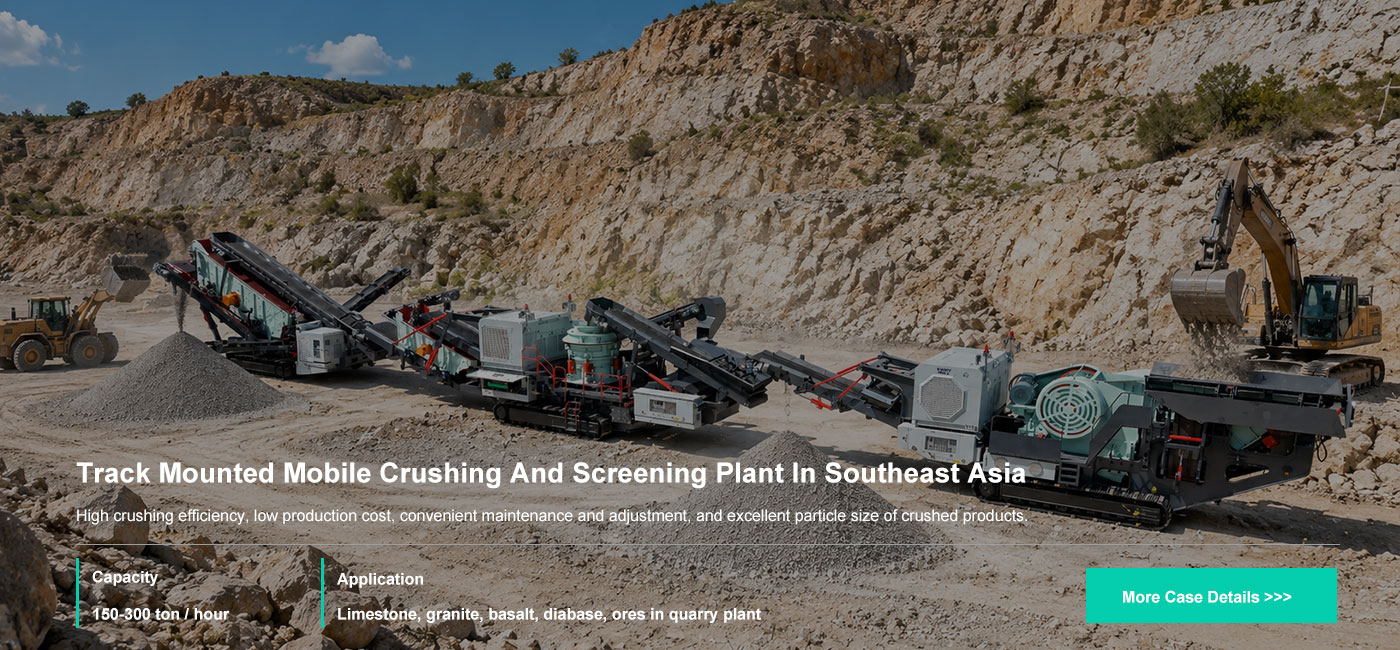

A leading Southeast Asia contractor chose Baichy’s integrated track-mounted mobile stone crusher plant solution – crawler jaw crusher (primary), crawler cone crusher (secondary), and mobile screening station – for a mountain road project, tackling rugged terrain and tight deadlines. The crawler jaw crusher processed 500mm raw rock, feeding the cone crusher (equipped with hydraulic adjustment) to produce graded aggregates, while the screening station sorted output into 5-10mm/10-20mm/20-40mm grades meeting local standards. Track mobility eliminated fixed foundations, cutting haulage costs, and Baichy’s good after sale service/spare parts hub ensured minimal downtime. “Baichy’s jaw-cone-screen system delivered reliable, high-quality output,” said the contractor. “Mobility and local support made this challenging project achievable.”

Baichy Machinery Crawler Mobile Crusher Plant – Comprehensive Service You Can Trust

At Baichy Machinery, we understand that investing in a crawler mobile crusher plant is a significant decision. That’s why our service goes beyond just providing high-quality equipment – we ensure every step of your purchase and operation is seamless, reliable, and backed by proven expertise.

1. Expert Equipment Selection: Our team works closely with you to analyze your project requirements, material type, and production goals. We provide professional guidance to select the most suitable crawler mobile crusher plant, ensuring optimal performance and efficiency. Every recommendation is tailored to maximize productivity while minimizing operational costs.

2. Timely Delivery: We respect your project timelines. Once the order is confirmed, our logistics team coordinates production and shipment to ensure your equipment arrives on schedule. With Baichy, you can rely on predictable, punctual delivery, reducing downtime and keeping your project on track.

3. On-Site Installation and Commissioning: Our experienced engineers provide on-site installation, setup, and commissioning. From aligning the crawler chassis to adjusting the crusher settings, we make sure your plant operates smoothly from day one. We also train your operators for safe and efficient use, empowering your team with hands-on knowledge.

4. Spare Parts and Ongoing Support: Baichy offers a full range of spare parts and consumables, ensuring your plant remains in top condition. Our customer service team is ready to assist with any technical inquiries, maintenance guidance, or replacement parts – minimizing downtime and prolonging equipment life.

5. Certified Quality Assurance: All our crawler mobile crusher plants come with ISO 9001 and CE certification, guaranteeing that the equipment meets international quality and safety standards. These certifications assure buyers that every component, from the crawler chassis to the impact crusher, is manufactured with precision and reliability.
