200tph Mobile Impact Crusher in Saudi Arabia​

200tph Mobile Impact Crusher in Saudi Arabia​

Share
Capacity:
150-200 ton / hour
Output size:
0-10mm, 10-20mm
Material:
Sandstone, shale etc
Configuration:

Mobile impact crusher plant PFW1315, Diesel engine generator

200tph Mobile Impact Crusher for Sandstone Processing in Saudi Arabia​

Project Overview:

Local sandstone (Mohs hardness 3–4, medium brittleness)—abundant in Saudi Arabia. This case study presents the application of a 200-ton-per-hour Mobile Impact Crusher plant for a sandstone quarrying operation in Saudi Arabia. The project's key requirement was a simple, highly efficient crushing circuit to process soft to medium-hard sandstone into two specific aggregate sizes for construction and sub-base applications. The solution utilized a mobile impact crusher in a primary crushing role, demonstrating a streamlined and cost-effective approach.

The Challenge:

The client needed a crushing solution for a sandstone deposit that was relatively soft and non-abrasive. The primary goals were to keep the initial investment and operational costs low while achieving a high output of 200 tph. The requirement for only two final product sizes allowed for a simplified process. A traditional two-stage setup (Jaw + Impact) was considered unnecessary for the material characteristics, prompting the search for a more efficient alternative.

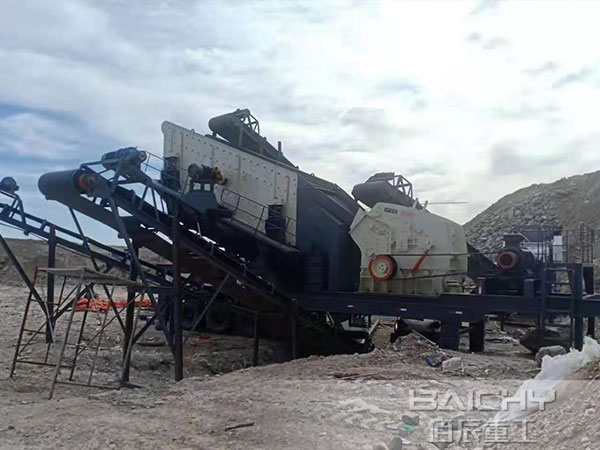

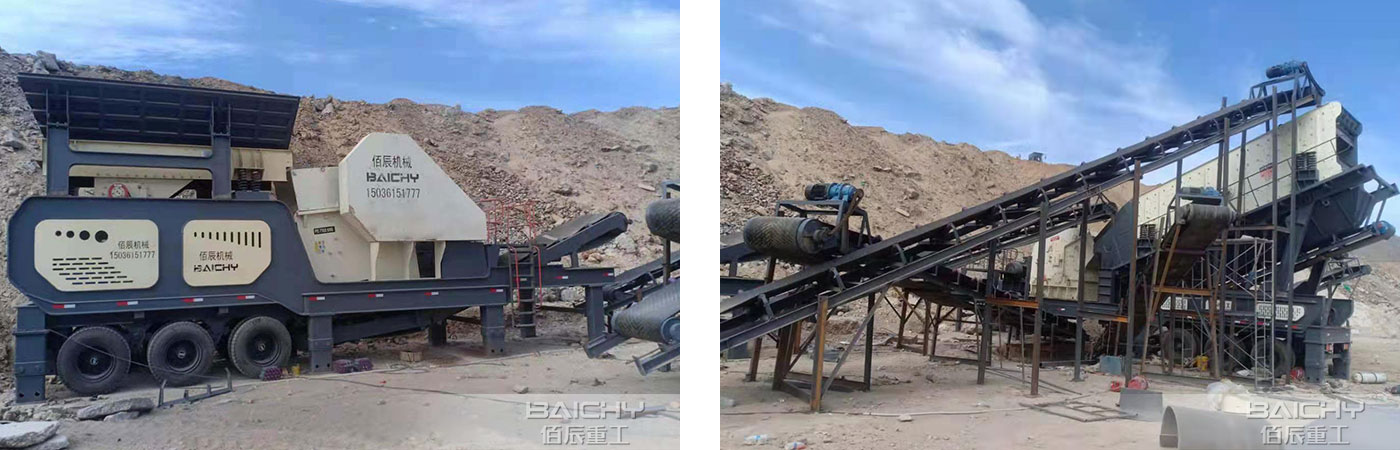

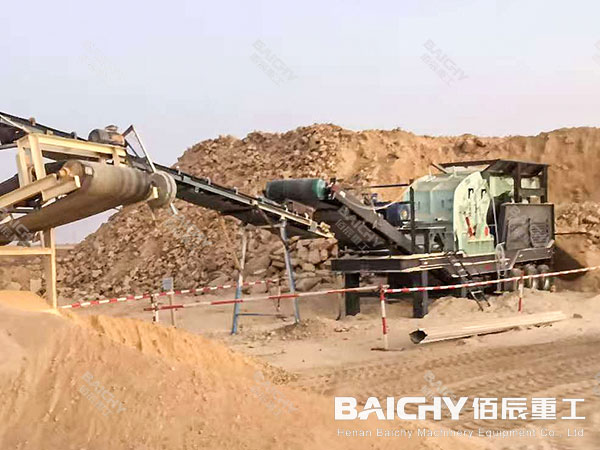

The Solution: A Simplified, Single-Stage Mobile Impact Crushing Plant

The optimal solution was a mobile unit featuring a powerful impact crusher used in a primary crushing role. This configuration eliminates the need for a separate primary jaw crusher, simplifying the entire flow, reducing equipment costs, and minimizing fuel consumption. The natural friability of sandstone makes it perfectly suited for impact crushing, which excels at producing a well-graded, cubical product.

The entire operation is handled by a single mobile unit:

1. Feeding & Primary Crushing:

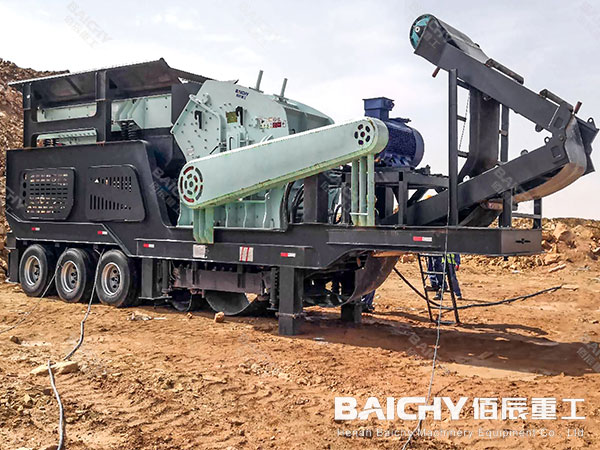

Equipment: The mobile plant integrates a heavy-duty vibrating feeder and the PF1315 impact crusher.

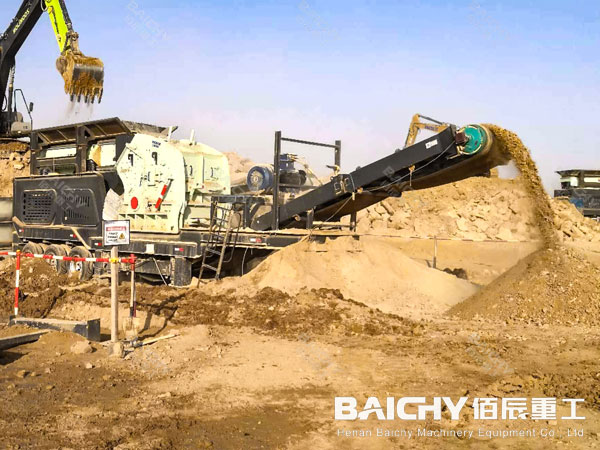

Function: Large sandstone blocks (up to ~700mm) are directly fed by an excavator into the unit's vibrating feeder. The feeder steadily conveys the raw material into the PF1315 impact crusher.
rocess: The PF1315 impact crusher acts as the primary and only crusher. Its high-speed rotor hammers the sandstone blocks, causing them to break upon impact against the aprons. This single impact action efficiently reduces the large raw material to the required sizes in one step.

2. Screening & Final Products:

The crushed material is then discharged onto an integrated onboard vibrating screen. The screen precisely separates the output into the two specified product sizes: 0-20mm and 20-40mm.
Any oversized material is recirculated back into the impact crusher for further processing (closed-circuit operation), ensuring high efficiency and consistent product gradation.

Key Benefits & Results:

1. Simplified Circuit & Lower Investment: By using the impact crusher for primary crushing, the need for a separate jaw crusher unit was eliminated. This resulted in significantly lower initial capital expenditure and reduced operational costs (e.g., less equipment to maintain and fuel).

2. High Efficiency for Soft Rock: The impact crushing principle is ideal for sandstone, achieving high reduction ratios and the target capacity of 200 tph with ease.

3. Excellent Product Shape: The impact crusher produces aggregates with a superior, cubical shape, which is highly desirable for providing better compaction and strength in construction applications.

4. Exceptional Mobility & Quick Setup: The single-unit design offers ultimate mobility. The plant can be relocated and set up for operation very quickly, allowing it to follow the quarry face and minimize truck haulage distances.

5. Operational Flexibility: The discharge gap of the PF1315 impact crusher can be easily adjusted hydraulically, allowing operators to fine-tune the final product sizes if market demands change.

Baichy Service Support in Saudi Arabia​

Crushing Solutions Design

Baichy Machinery can customize a crushing plant for you based on the specific conditions of your project: such as the construction site, hardness of the raw materials, output, output size, budget, etc.

On-site Installation & Training

Our team provides on-site installation and thorough training to ensure safe operation of the crushing plant.

Quality Control & Global Delivery

Rigorous quality checks ensure compliance with standards, and we handle worldwide delivery to your location.

After-Sales Support

Baichy Machinery provides you with spare parts supply, project transformation, investment return analysis, etc.

Crushing Solutions Design
On-site Installation & Training
Quality Control & Global Delivery
After-Sales Support

Frequently Asked Questions (FAQs)

Find answers to the most common questions about Baichy Machinery. If you can’t find what you’re looking for here, please contact us.

1. How does an impact crusher work?

On a mobile unit impact crushers are driven directly by a diesel-engine or indirectly driven by an electric motor or a hydraulic pump. It provides a large crushing chamber and a powerful rotor, capable of processing large sandstone blocks.

2. What's the difference between mobile crusher and fixed crusher?

The mobility of mobile crushers provides more flexibility in meeting on-site work requirements. You can easily move them around a worksite as needed. Stationary crushers are fixed in place, usually situated at a quarry or mine. They are limited to one site, so all materials must be brought to them.

3. What are the three types of crushers?

There are many different variations of concrete crushers, but we'll talk about the three main types; jaw crushers, impact crushers and cone crushers.

4. How to choose the right mobile crusher?

Here are some key considerations: material characteristics. hardness and abrasiveness, different crushers are designed to handle varying levels of hardness and abrasiveness, capacity requirements, mobility and size, technology and features, operational costs, safety and environmental considerations, manufacturer support.
