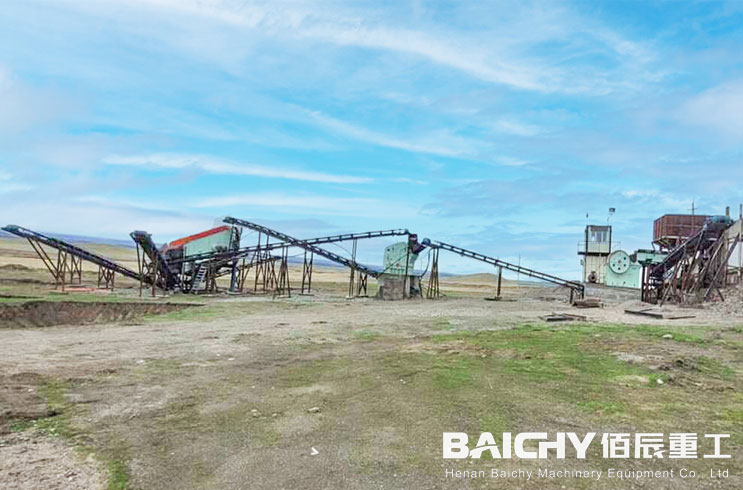

200 tph stone crusher plant introduction

200tph stone crusher plant is designed to efficiently crush and process large quantities of raw materials to produce high-quality aggregates for construction projects. It plays a crucial role in the production of concrete, asphalt, and other construction materials. It is a a two stage crushing and screening plant. The main machines includes: jaw crusher PE750X1060, impact crusher PF1320, 4YK vibrating screen and belt conveyors. It could manufacture of aggregates (coarse aggregates, crusher run, rock sand, fine aggregates) from limestone, basalt, granite, andesite, etc.

Stone Crushing Plant Configuration

Stone Crushing plants make use of a large range of equipment, such as hopper, vibrating feeder, magnetic separator, vibrating screen, crushing unit, such as jaw crushers and impact crusher etc.

1. Primary crusher.

The process usually begins with a primary jaw crusher PE750X1060, This crusher is responsible for breaking down large rocks into smaller pieces.

2. Secondary crusher.

After the primary crushing stage, the material is often processed further by a secondary crusher, such as a cone crusher CS220 or an impact crusher PF1320. The secondary crusher further refines the material into the desired size and shape.

3. Vibrating feeder.

A vibrating feeder is often used to transport the material from the primary crusher to the secondary crusher. It ensures a consistent flow of material and regulates the feed rate to the crushers.

4. Vibrating screen.

A vibrating screen is used to separate the crushed materials into different sizes. This is important for producing different grades of aggregate.

5. Conveyor belts.

Conveyor belts are used to transport the crushed material from one stage of the crushing process to another. They are essential for the efficient operation of the stone crusher plant.

6. Control system.

A control system is used to monitor and regulate the entire crushing process. It may include features such as automated settings, remote monitoring, and safety interlocks.

7. Dust suppression system.

To minimize dust emissions during the crushing process, a dust suppression system may be integrated into the stone crusher plant. This is important for environmental and occupational health and safety compliance.

How Does 200 tph Stone Crusher Plant Work?

200tph stone crusher plant works by efficiently processing raw materials through primary and secondary crushing stages, screening, conveying, and storage to produce high-quality aggregates for construction applications. The plant's operation is carefully monitored and controlled to ensure the production of consistent and compliant materials.

1.Raw materials are evenly conveyed into jaw stone crusher for primary crushing via the hopper of vibrating feeder.

2.The crushed stone materials are conveyed to crushing plant by belt conveyor for secondary crushing before they are sent to vibrating screen to be separated.

3.After separating, qualified materials will be taken away as final products, while unqualified materials will be carried back to the stone crushing equipment for recrushing.

4.Customer can classify final products according to different size ranges. All the final products are up to the related standards. Dust is generated during the working process while the dust control units are needed.

Our service

1. Baichy machinery has 20+ years of experience in the stone crushing production plant. We are skilled in the production plant design and has a high-cost performance. We insists on providing customers with high yield, energy-saving and environmental protection rock crushers and other relative machines.

2. We can customize stone crusher plants for customers, including stone crusher plant layout, stone crusher plant machines and stone crusher plant estimated cost.

3. We insists on providing clients with overall solutions from equipment recommendation to debugging and installation, worker training, technical support and maintenance. The spares parts is provided all servide life.

4. Our machines have delivered to hundreds of countries, such as Indonesia, Philippines, Vietnam, Malaysia, India, Pakistan, Kenya, the USA, Ghana, Zimbabwe, America, Australia Canada, Peru, Columbia, Guatemala, Uzbekistan, Russia etc. The engineers are assigned to install and train in cusomter site.
