Tracked Impact Crusher

Tracked Impact Crusher Introduction

The tracked mobile impact crusher is a highly efficient mobile crushing and screening plant. Equipped with a self-propelled hydraulic crawler chassis, it integrates material crushing, screening and conveying functions into a single unit, allowing for on-site operation in challenging conditions such as rugged terrain, mountainous areas, wetlands, and remote mining sites.

● Its ability to turn in place, climb steep slopes, and move between different locations via remote control, without the need for towing equipment, makes it widely favored in quarrying, mining, demolition, and construction waste recycling.

● Its powerful adaptability and mobility make it the preferred choice for contractors looking to increase productivity and reduce transportation costs.

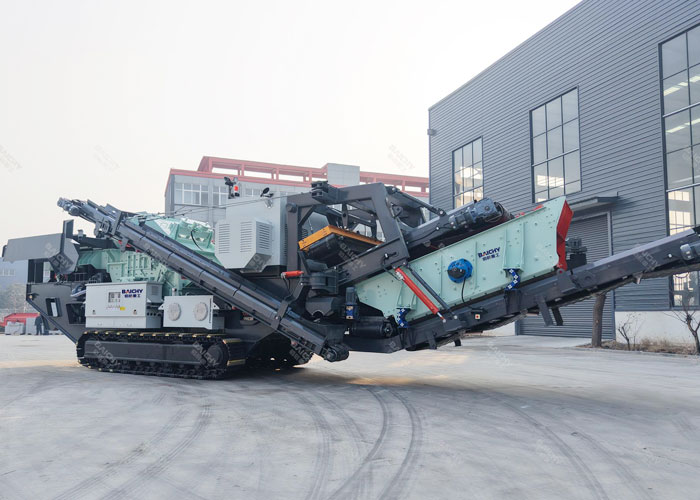

Crawler Impact Crusher Plant

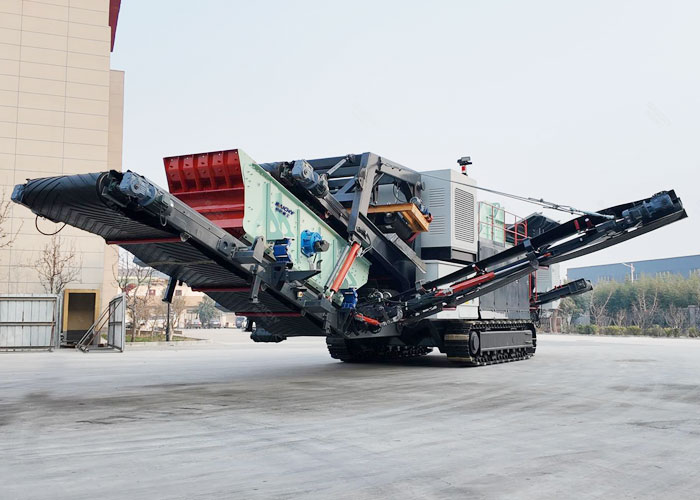

Crawler Impact Crusher

Tracked Mobile Impact Crusher Plant Features:

1. High Crushing Capacity

The large-mouth impact crusher features a wide feed opening, enabling it to handle large-sized materials and deliver high throughput. Its impact-based crushing mechanism ensures uniform particle shape, ideal for high-quality aggregate production.
2. Integrated & Efficient Design

The combination of feeder, large-mouth impact crusher, and vibrating screen streamlines the crushing process—raw materials are fed evenly by the feeder, crushed by the high-capacity impact crusher, and sorted into different particle sizes by the vibrating screen in one continuous operation.
3. Exceptional Mobility

Equipped with crawler tracks, the crusher can traverse rough terrain, muddy ground, and uneven job sites with ease, allowing quick relocation between crushing zones without relying on heavy-duty transport vehicles.
4. Cost-Effective Operation

By reducing transportation costs (no need to haul raw materials to fixed crushing plants) and minimizing labor input for setup and maintenance, the tracked mobile impact crusher plant lowers overall operational expenses.

Tech Datasheet

Model	Feeder	Impact Crusher	Main Belt	Side Discharge Belt	Inspection Screen	Discharge Belt Under Screen	Transition Belt1	Transition Belt2	Screen Front Side Discharge Belt	Return Belt Conveyor	Capacity
YMCI10S	GZD9538	CI1110	B1000x10m	B500x3.8m	2YK1436	B1200x6.5m	B500x2m	B500x2m	B500x4.5m	B500x8.2m	100-200t/h
YMC12S	GZD1135	CI1213	B1000x10m	B500x3.8m	2YK1436	B1200x6.5m	B500x2m	B500x2m	B500x4.5m	B500x8.2m	150-300t/h
YMCI12	GZD1135	CI1213	B1000x10m	B500x3.8m	—	—	—	—	—	—	150-300t/h
YMCI13S	GZD1235	CI1313	B1200x10m	B500x3.8m	2YK1436	B1200x6.5m	B500x2m	B500x2m	B500x4.5m	B500x8.6m	220-500t/h
YMCI13	GZD1235	CI1313	B1200x10m	B500x3.8m	—	—	—	—	—	—	220-500t/h

Mobile Impact Crusher: Wheel Type vs Crawler Type

Both tracked impact crushers and wheeled impact crushers share core functionalities and design principles, making them reliable choices for crushing operations:

1.Crushing Mechanism: Utilize the same impact-based crushing principle—high-speed rotating rotors with impact hammers strike materials, breaking them into uniform, cubical particles suitable for aggregates, recycling, or mining.

2. Core Components: Integrate essential systems: vibrating feeders(uniform material supply), impact crushing chambers (primary/secondary crushing) and vibrating screens (particle classification)

3. Material Compatibility: Process identical material types, including limestone, granite, concrete debris, asphalt, ore, and construction waste (Mohs hardness 1–8).

4. Power Options: Offer diesel or electric power configurations, supporting both on-grid (urban sites) and off-grid (remote quarries) operations.

5. Modular Design: Support optional upgrades (magnetic separators for steel removal, additional screen decks) to enhance functionality for specific use cases.

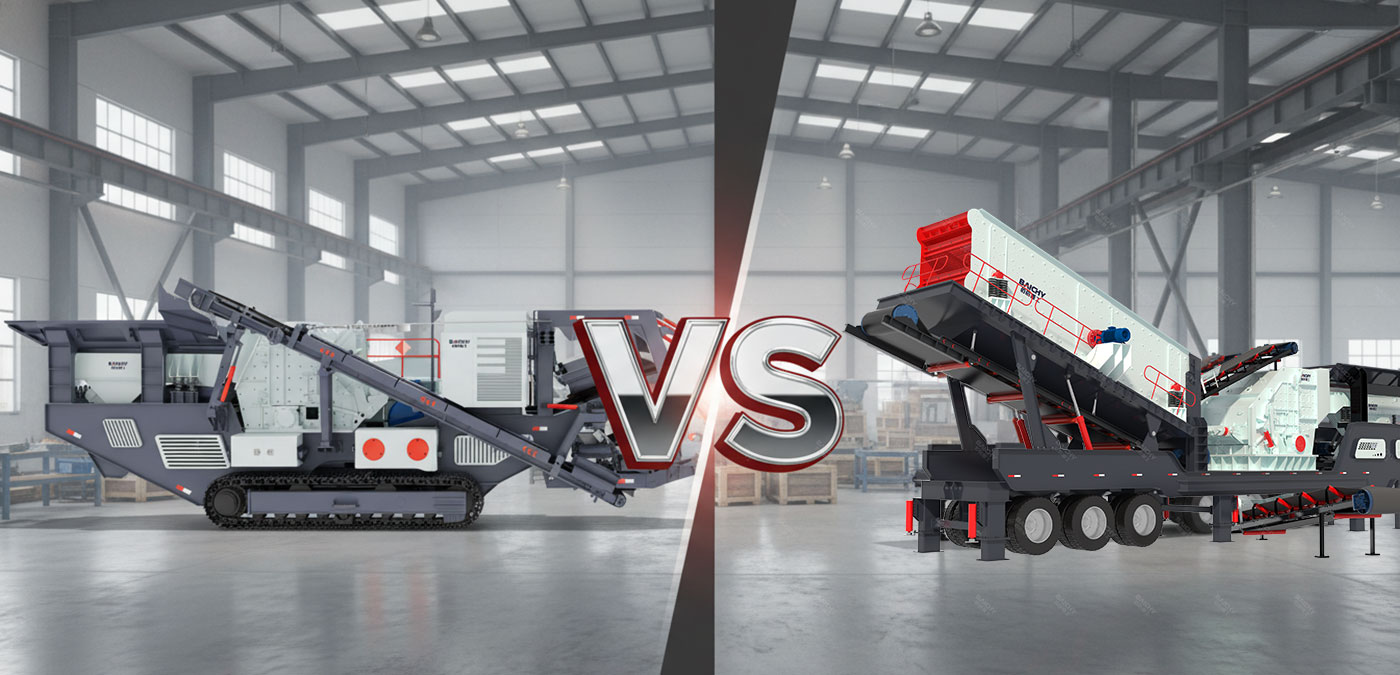

Tracked Impact Crusher VS Tire Mobile Impact Crusher

Key Differences Between Tracked and Wheeled Impact Crushers

No	Item	Track Type	Wheel Type
1	Mobility	Excellent off-road capability; crawler tracks handle rough terrain (quarries, mines, construction sites with uneven ground). No need for additional transportation equipment.	Dependent on paved roads; requires trailers for long-distance transport. Suitable for flat, accessible job sites.
2	Installation	Quick setup (1-2 hours); self-propelled, no foundation needed. Ideal for temporary or mobile crushing projects.	equires loading onto trailers for relocation; longer setup time (3-4 hours) due to leveling and stabilization needs. Better for semi-permanent operations.
3	Application	Remote job sites, hard-to-reach areas, large-scale mining/quarrying. Handles high-volume, heavy-duty crushing (rock, ore, demolition waste).	Urban projects, short-distance relocations, recycling facilities. Suitable for medium-volume crushing (concrete, asphalt, limestone).
4	Cost & Maintenance	Higher initial cost; higher maintenance (tracks, hydraulic systems). Lower long-term cost for mobile, remote operations.	Lower initial cost; simpler maintenance (tires, standard components). Higher transportation costs for frequent relocations.
