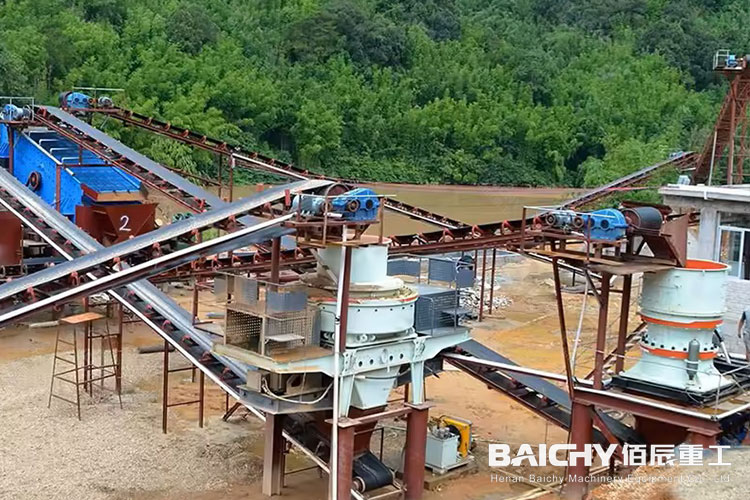

Equipment configuration | Hopper, vibrating feeder ZSW1100x4200, jaw crusher PE750x1060, cone crusher HPC300/CS220 or impact crusher PF1320, vibrating screen, belt conveyor. |
Raw materials | Limestone, Granite, Basalt, Quartz, River stone etc. |
Feed Size | less than 630mm |
Capacity | 180-220t/h |
Finished product | 0-6mm, 6-12mm, 12-25mm, 25-40mm |
Application | Produce aggregate of limestone, granite, basalt, river stone, marble, iron ore, dolomite, quartz, slag etc, which is widely applied for hydropower, construction, highway, railway, airport runway, civil engineering projects and etc. |
Features |
1. Low operating cost and high crushing rate; 2. Energy saving, large output and simple maintenance, in line with the national building sand standards; 3. Uniform particle size of finished products, reasonable configuration. |

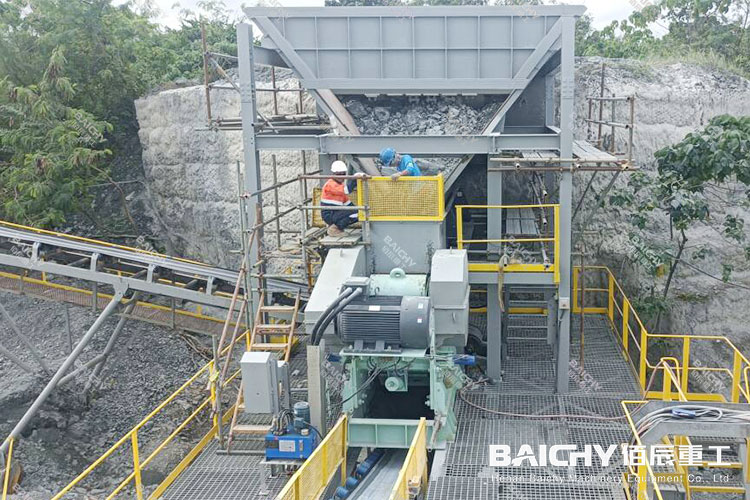

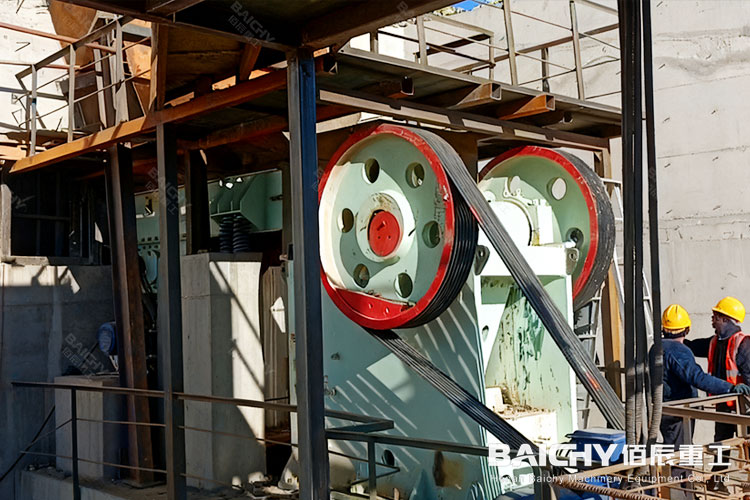

1.Hard stones go into the hopper by loader forklift, then feed into jaw crusher evenly and continuously by vibrating feeder for primary crushing.

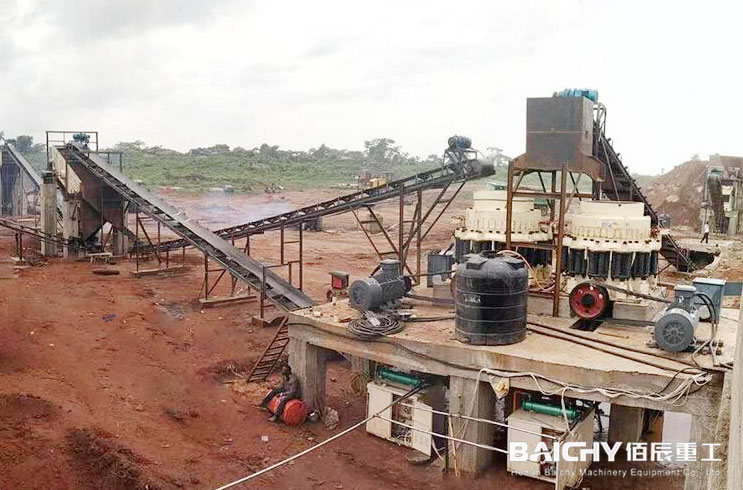

2.Then the coarsely crushed materials are conveyed to secondary crusher (according to material hardness and output sizes request),secondary crusher can choose impact crusher, CS cone crusher, HP multi cylinders cone crusher and DG single cylinder cone crusher.
3.The final crushed rocks go to vibrating screen to classify final qualified products according to different size ranges as stock pile forsale, or for road builidng use. Unqualified materials will be carried back to the stone crushing equipment for recrushing.
4.Customer can classify final products according to different size ranges. All the final products are up to the related standards within and beyond China. Dust is generated during the working process while the dust control units are needed.
