Mobile concrete crusher is a crawler-mounted stone crushing and screening plant designed for breaking and recycling concrete waste, offering flexible operation, high mobility, and efficient material processing.

<600mmFeed Size
15-380kwMotor Power
20-300tphProcessing capacity

Get Quotes Leave Message

60S Quick Response
30Min Technical Reply
24H Design Proposal
Email:hnbc@baichy.com

What is mobile concrete crusher?

The mobile concrete crushing plant adopts construction waste treatment technology. After solid waste application process, it can produce various types of new building materials that meet the quality inspection specifications. Mobile concrete crusher is an important equipment for the current development of construction waste treatment. It is suitable for crushing waste materials such as construction waste, industrial waste residue, cinder, coal rock, slag, fly ash, building material non-metallic solid waste, etc., It turns waste into treasure and protecting the environment.

Application of mobile concrete crusher

After the construction waste crusher plant crushes urban waste, the waste is sorted, removed and crushed by express delivery. Most of them can be reused as renewable energy, such as waste building steel bars, waste fine iron wires, waste cables and various waste steel materials.

1. Metal materials such as spare parts can be reprocessed and processed into stainless steel plates of specifications after sorting, centralization, and re-refining by express delivery.

2. Waste bamboo and wood can be used to produce synthetic wood.

3. Waste such as bricks, stones, and concrete After crushing, it can replace sand and be used as masonry mortar, plastering mortar, foundation cushion, etc., and can be used to make decorative building materials such as aerated blocks, paving bricks, and lattice partition bricks.

Get Price List

Product features

Excellent Terrain Mobility

Equipped with heavy-duty crawler tracks, this plant can navigate rugged terrains and steep slopes autonomously, allowing it to work directly at the demolition or recycling source.
Superior Product Quality

The impact crushing mechanism ensures superior grain shape and high cubicity of the recycled aggregates, which is essential for producing high-grade concrete for new projects.
Integrated Closed-Circuit

It features an integrated screening system that returns oversized material back to the crusher. This closed-circuit design allows for precise control of the final aggregate size.
Cost and Eco Efficiency

By processing concrete on-site, it drastically reduces transportation costs and waste disposal fees, while promoting sustainability through efficient material recycling at the source.

Working principle

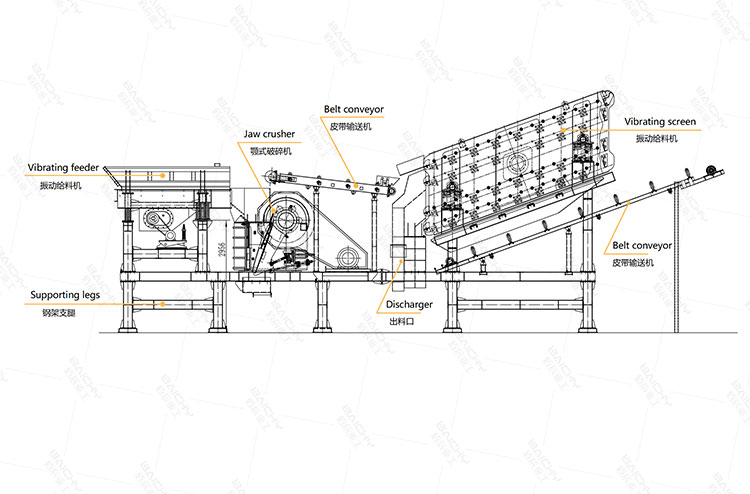

Construction waste mobile crushing plant is composed of mobile frame, vibrating feeder, construction waste special crusher, screening machine, belt conveyor, iron removal equipment, electric control system, etc. It is also possible to combine configurations according to customer requirements.

The raw materials are directly sent to the silo by the loader, and enter the vibrating feeder from the silo. The vibrating feeder sends concrete evenly to the special crusher for construction waste crushing. The crushed material is sent by the belt conveyor through the iron remover to send to vibrating screen. The crushed material is classifed to different sizes by vibrating screen. Coarse aggregate (10-20mm, 20-30mm) can be used for filling soil, paving base material, concrete, asphalt aggregate. Fine aggregate (0-5mm, 5-10mm) can be used for unburned bricks, eaves bricks, mortar raw materials, cement composites, etc.

Specification

Model	Vibrating Feeder	Impact Crusher	Main Belt	Side Discharge Belt	Inspection Screen	Discharge Belt Under Screen	Transition Belt1	Transition Belt2	Screen Front Side Discharge Belt	Return Belt Conveyor	Capacity (tph)
YMCI10S	GZD9538	CI1110	B1000x10m	B500x3.8m	2YK1436	B1200x6.5m	B500x2m	B500x2m	B500x4.5m	B500x8.2m	100-200
YMC12S	GZD1135	CI1213	B1000x10m	B500x3.8m	2YK1436	B1200x6.5m	B500x2m	B500x2m	B500x4.5m	B500x8.2m	150-300
YMCI13S	GZD1235	CI1313	B1000x10m	B500x3.8m	2YK1436	B1200x6.5m	B500x2m	B500x2m	B500x4.5m	B500x8.2m	220-500
