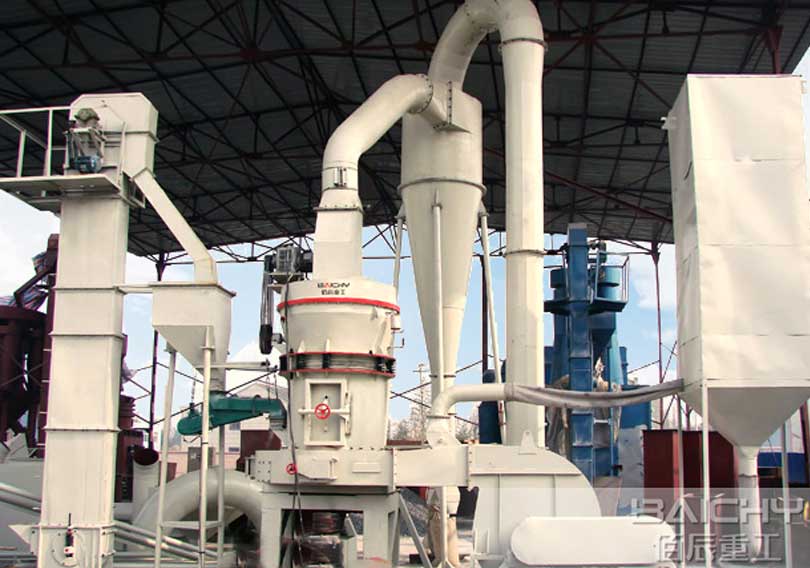

Gypsum grinding mill plant is a complete production system that processes natural gypsum into fine powder for construction, cement, chemical and other industrial uses. It typically includes crushing, feeding, grinding, classification, dust collection and packing systems.

Baichy provides customized gypsum powder production solutions according to raw material, capacity and final product fineness.

Leave Message

Get Price List

60s Quick Response

30 Min Technical Reply

24h Design Proposal

What Is A Gypsum Grinding Mill Plant?

Stone crusher breaks large size of gypsum ore into small particles less than 30mm, which are transported to raymond mill for grinding. After grinding, the gypsum powder reaching the required fineness of the product is sent to the boiling furnace for calcining by the separator. The coarse powder will be returned to raymond mill for grinding again until qualified. After calcined qualified gypsum powder into the clinker storage or into the product workshop for use.

Gypsum Grinding Process Flow

A complete gypsum grinding production line usually includes crushing, feeding, grinding, classification and powder collection. Each stage works together to ensure stable production and consistent gypsum powder quality.

1. Gypsum Crusher: Raw gypsum ore is usually mined in large blocks and needs to be crushed before grinding. A jaw crusher or hammer mill crusher is commonly used to reduce the material size and provide suitable feed particles for the grinding mill, improving grinding efficiency and reducing equipment wear.

2. Gypsum Feeding System: After crushing, gypsum material is stored in a hopper and evenly fed into the grinding mill through a vibrating feeder or conveyor. Stable feeding helps maintain continuous operation and ensures consistent powder quality.

3. Gypsum Grinding Stage: The grinding mill is the key equipment in gypsum powder production. The crushed gypsum is ground into fine powder according to the required fineness and application. Raymond mills are commonly used for medium-scale gypsum grinding, while larger projects may select other grinding systems based on capacity requirements.

4. Classification and Powder Collection:After grinding, the gypsum powder enters the classifier for particle size separation. Qualified fine powder is collected by the dust collection system, while coarse particles return to the mill for further grinding. This process improves powder quality and production efficiency.

5. Finished Powder Storage and Packing:The finished gypsum powder is collected and transported to storage or packing systems. The final configuration can be customized according to production capacity and transportation requirements.

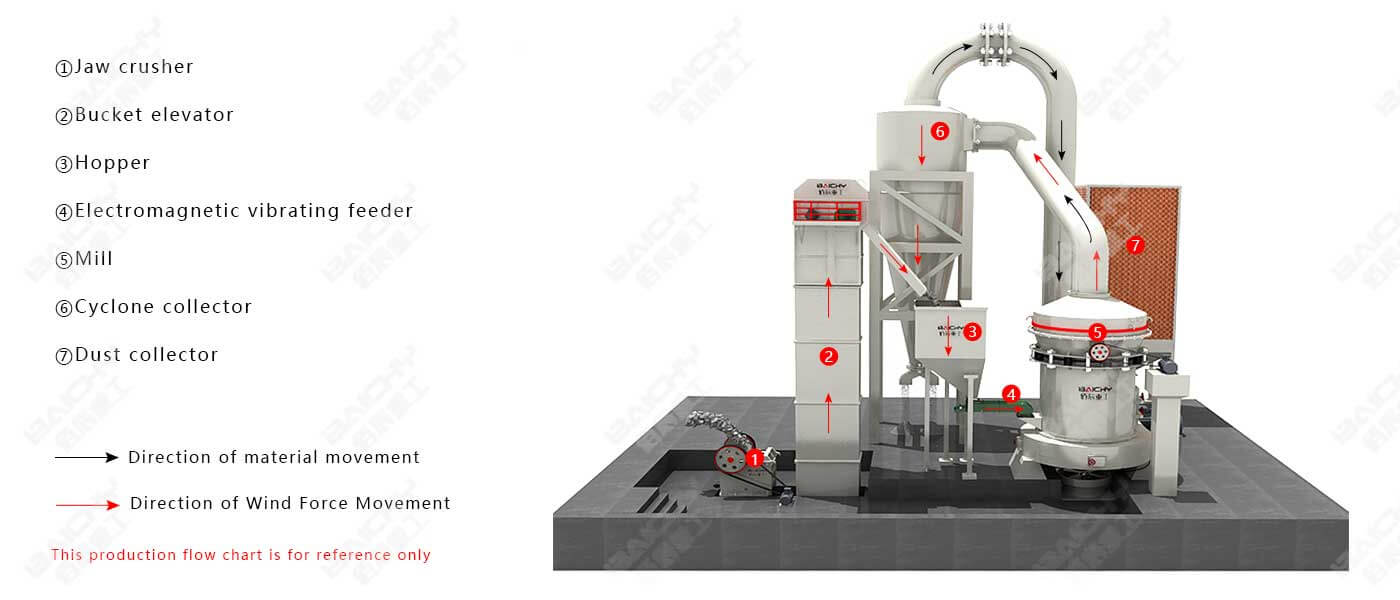

gypsum powder production plant flowchart

Grinding Mill Plant Specification Sheet

>>>Send Inquiry Now

Capacity		1-2 tph	2-4 tph	4-7 tph	7-12 tph	12-20tph
Raymond mill	Model	YGM75	YGM95	YGM130	YGM160	YGM190
	Main grinder(kw)	18.5	45	90	132	185
	Blower(kw)	15	37	90	132	185
	Classifier(kw)	2.2	5.5	7.5	15	22
Jaw crusher	Model	PE150X250	PE200X350	PE250X400	PEX250X750	PEX250X750
Jaw crusher	Motor(kw)	5.5	7.5	15	22	22
Bucket elevator	Model	T210X7m	T210X7.5m	T250X10m	T315X10m	T400X10m
Bucket elevator	Motor(kw)	3	3	4	4	4
Feeder	Model	GZG-2	GZG-4	GZG-4	GZG-5	GZG-5
Feeder	Motor(kw)	0.06	0.15	0.15	0.45	0.65
Silo	Customized according to actual situation

* The output will vary according to different materials, feed particle size and other factors

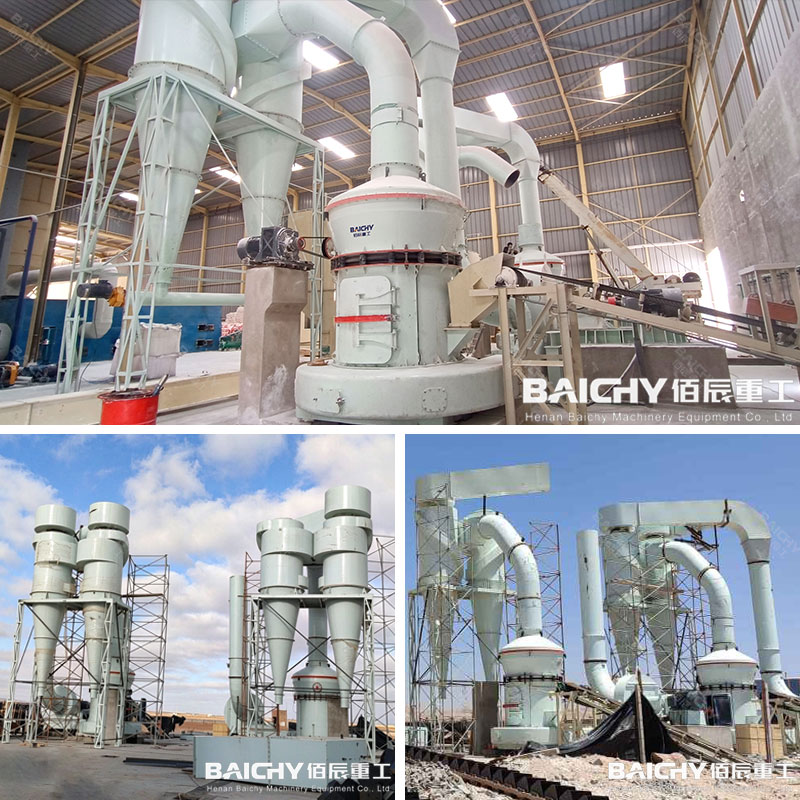

Advantages of Baichy Gypsum Powder Production Plant

1. Stable Grinding Performance for Gypsum Processing
YGM Raymond mill is suitable for gypsum grinding due to its stable operation and reliable grinding performance. The system can continuously process gypsum materials into uniform powder with controlled fineness, meeting the requirements of building materials and industrial applications.

2. Adjustable Powder Fineness for Different Applications
The grinding fineness of the YGM Raymond mill can be adjusted according to production requirements. By optimizing the classifier and grinding system, the plant can produce gypsum powder with different particle sizes for applications such as gypsum board, plaster products and cement additives.

3. Complete Production System with Dust Control

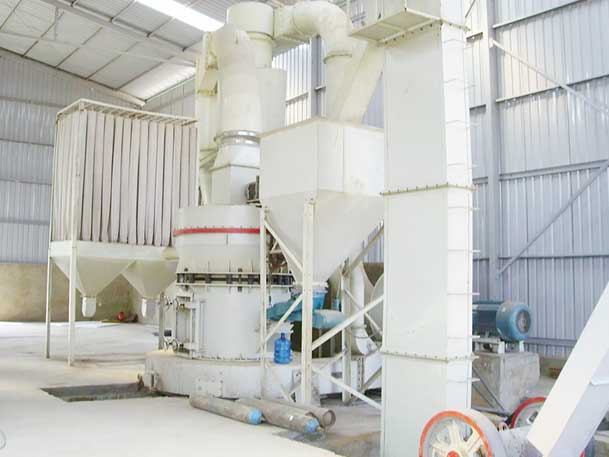

A YGM Raymond mill gypsum powder production plant usually integrates crushing, feeding, grinding, classification and dust collection systems. The closed-loop design reduces material loss, improves powder collection efficiency and helps maintain a cleaner working environment.

4. Easy Operation and Cost-Effective Maintenance
The YGM Raymond mill system features a simple structure and convenient maintenance. The wearing parts are easy to replace, helping reduce downtime and operating costs during long-term gypsum powder production.
