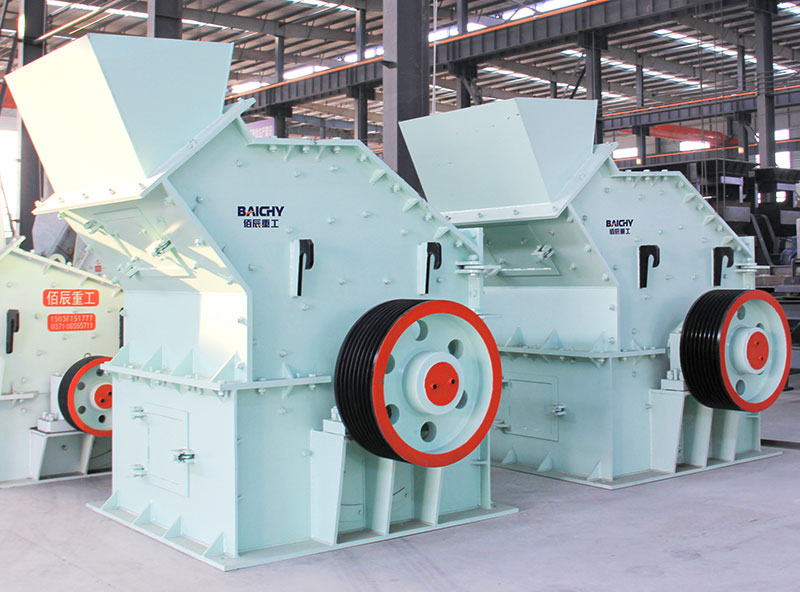

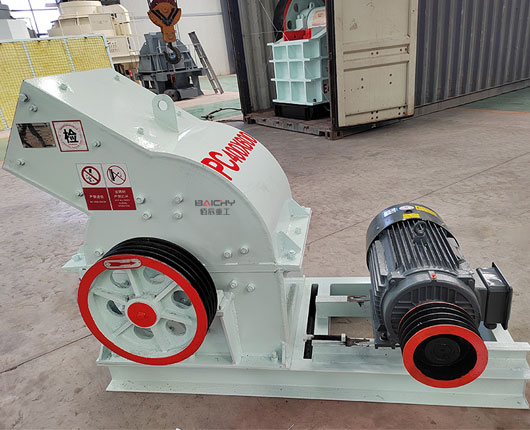

Hammer mill crusher is an impact crushing machine that uses high-speed rotating hammers to crush limestone, coal, gypsum, gold ore and other soft to medium-hard materials into fine and uniform particles.. It could be made in mobile type in diesel engine or electrical motor.

≤400mmFeed Size
4-132KWMotor Power
5–75 t/hProcessing capacity

Get Quotes Leave Message

60S Quick Response
30Min Technical Reply
24H Design Proposal
Email:hnbc@baichy.com

What is hammer crusher?

PC Hammer crusher is to crush stone by impact force. It has features of simple structure, large crushing ratio, high production efficiency. And it can be used for dry and wet crushing. Hammer crusher is suitable for crushing medium hardness and brittle materials in mining, cement, coal, metallurgy, building materials, highway and other departments. The main working part of hammer crusher is rotor assembly with hammer head. The lower part of the rotor is equipped with a sieve plate, which can adjust the gap between the grate bars and change the discharge granularity according to the user's needs .

How to choose hammer crusher?

Materials to be crushed. Hammer crusher is suitable for crushing medium hardness and brittle materials, such as gold ore, limestone, coal, salt, gypsum, brick, tile, coal gangue etc. And moisture should not exceed 10%.

Check the material of main parts. A hammer crusher quality is determined by the material of its components. Hammer head is the most important working part. Hammer head from Baichy Machinery is casted with high chromium manganese steel with longer service life. In order to prevent the wear of the frame, manganese steel is used as the lining board to ensure the superior wear resistance and impact resistance.

Check the tightness of the body structure. Hammering the seal of the body structure can solve the problems of dust pollution and dust leakage of the body in the crushing workshop.

Check whether the grate gaps can be adjusted to control the outlet size.

Get Price List

Product features

Large Crushing Ratio

This machine can process large feed sizes and reduce them to fine particles in one stage, enabling efficient crushing with high reduction ratio and stable production capacity.
Flexible Sizing Control

Equipped with adjustable grate bars at the bottom, the crusher allows users to precisely control the final output size. This ensures a consistent and uniform product for various uses.
Low Initial Investment

Due to its simple structure and high integration, it offers a cost-effective solution for small to medium plants. It provides high performance with lower purchasing and setup costs.
Durable and Easy to Maintain

The hammers are made of high-strength wear-resistant alloys, ensuring a long service life. The easy-open frame allows for fast replacement of parts, significantly reducing downtime.

Working principle

Motor drives the rotor quickly in the crushing cavity. Raw materials enter the crusher through the feeding inlet and are impacted, cut and ground by high-speed hammer heads. There is a grate under the rotor assemblly, so that materials with size smaller than the grate mesh will be screened out and others are left to be further hammered until they reach the standard size. The size of the final product can be adjusted by changing the grate, the gap between the rotor assemblly and the grate can also be adjusted according to different requirements.

Specification

Model	Input Size (mm)	Output Size (mm)	Capacity (t/h)	Power (kw)
PC400x300	<100	<15	5-10	11
PC600x400	<220	<15	10-25	22
PC800x600	<350	<15	20-40	55
PC1000x800	<400	<15	25-80	110
