PCX High Efficiency Fine Crusher vs PC Hammer Crusher: Are They the Same?

 In the mining and building materials industry, the PCX high efficiency fine crusher and the PC hammer crusher are two common pieces of crushing equipment. Many users get confused because both model names start with "PC." They often think these are just different names for the same machine.

These two machines are very different in design, working principle, performance, and application. This guide will give you a complete comparison based on detailed specifications. It will help you make the right choice for your project.

Quick Overview: Key Differences at a Glance

One sentence conclusion: PCX is an upgraded high-efficiency fine crusher. It gives finer output and uses less energy. PC is a traditional general-purpose hammer crusher.

Section 1: Product Positioning Comparison

1.1 PCX High Efficiency Fine Crusher

The PCX series high efficiency fine crusher is a new generation of fine crushing equipment. It is based on advanced German technology. The design has been improved for better performance.

The main goal of this machine is to replace traditional two-stage or three-stage crushing with just one machine. This greatly simplifies the production process.

This machine is widely used in sand making production lines, cement plants for fine crushing, and refractory material plants. It can handle medium-hard materials like limestone, cement clinker, iron ore, and granite.

1.2 PC Hammer Crusher

The PC hammer crusher is a traditional medium and fine crushing machine. It works by using high-speed rotating hammers to impact and break the material.

This machine has a simple structure and is easy to maintain. It is used in mining, metallurgy, and building materials. It is good for medium and fine crushing of brittle, medium-hard materials like limestone, coal, and gypsum.

The Relationship Between Them: According to equipment manufacturers, the PCX high efficiency fine crusher is a new generation upgrade developed from the high-performance PC hammer crusher.

Section 2: Technical Specifications Comparison

The PCX output is stable at about 3mm. The PC hammer crusher output is usually in the 25-30mm range.
The PCX machine gives finer output with similar power. Some models claim to save over 30% energy compared to traditional three-stage crushing.

Section 3: Structural Design Differences

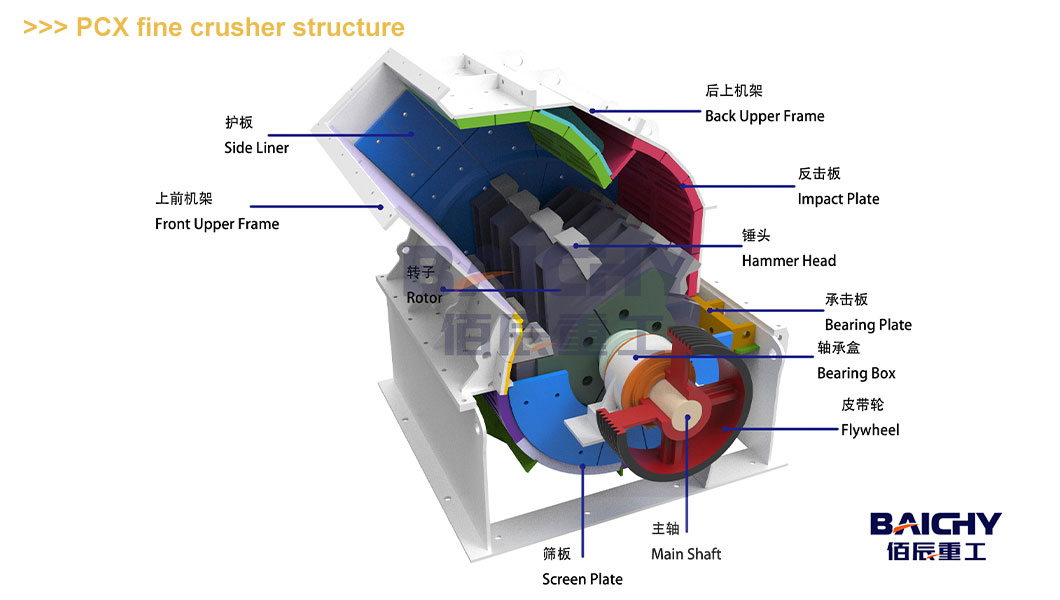

3.1 PCX Design Features
The PCX high efficiency fine crusher has several design improvements:

  ● Multi-chamber crushing design: The crushing chamber is shaped to improve material flow and crushing efficiency.

  ● Easy double adjustment system: You can easily change the output size with a simple adjustment.

  ● New wear-resistant materials: The hammers and liners are made from high-chromium alloy. This gives them better wear resistance and impact resistance.

  ● Easy maintenance design: One person can do a complete inspection and maintenance check in just 20 minutes using only a wrench.

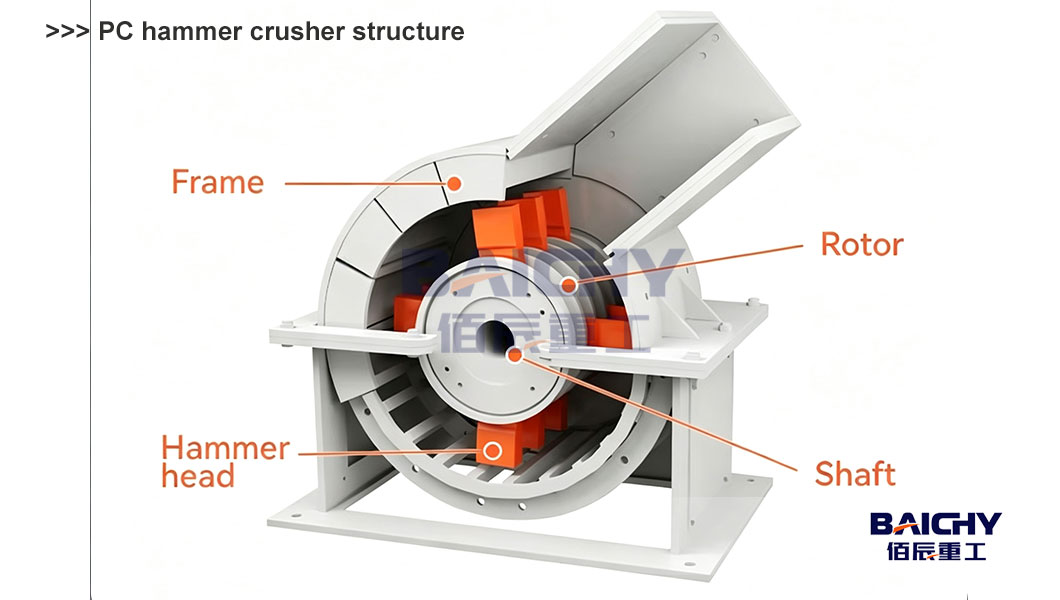

3.2 PC Hammer Crusher Design Features
The PC hammer crusher has these design characteristics:

  ● Simple and compact structure: It is small in size and light in weight.

  ● Grate bar controls output: The product size is controlled by the grate bars at the discharge port.

  ● Large, impact-resistant hammers: The hammers are made with new casting technology.

  ● Sealed body design: This reduces dust pollution and prevents leakage.

Section 4: Difference in Maintenance and Wear Parts

Both machines use wear-resistant hammer heads, but their maintenance requirements are different.

The PC hammer crusher has a simpler structure, making maintenance easier for small-scale operations.

The PCX crusher uses improved internal design to reduce unnecessary wear and improve service life. Key components are made of high-strength wear-resistant materials with strong impact resistance, suitable for long-term continuous operation. Once the hammer head is worn, its position can be swapped to allow for continued use. So PCX fine crusher has longer service time.

Proper maintenance includes:

  ● Regular inspection of hammer wear
  ● Checking rotor balance
  ● Adjusting discharge opening
  ● Replacing worn parts on time

Baichy Machinery: Real-World Customer Applications

To better understand how these machines perform in the field, let’s look at two recent projects from Baichy’s global clients.

Case 1: PCX Fine Crusher for Manufactured Sand in the Philippines

Customer Profile: A large-scale construction aggregate supplier in Cebu, Philippines. Material: Medium-hard Limestone. Goal: Produce high-quality 0-5mm sand for local concrete batching plants.

The Solution: Baichy provided a PCX-1212 High Efficiency Fine Crusher. By implementing the PCX as the tertiary stage after a jaw crusher, the client achieved a stable output of 0-5mm sand with a 85% passing rate in a single pass. The "stone-on-stone" crushing effect inside the PCX also improved the particle shape, making the sand more cubic and valuable in the local market. The client reported a 20% saving in electricity compared to their previous equipment.

Case 2: PC Hammer Crusher for Brick Raw Materials in Tanzania

Customer Profile: A brick manufacturing factory in Dar es Salaam, Tanzania. Material: Soft Limestone and Shale. Goal: Reduce 200mm raw stone to 25mm aggregate for the brick-making process.

The Solution: For this application, a PC-1000x1000 Hammer Crusher was the ideal choice. Since the customer did not require ultra-fine sand and was processing relatively soft material, the PC series offered a high reduction ratio at a much lower initial investment cost. The machine's simple design allowed the local team to handle routine maintenance easily, and the Baichy PC crusher has now been running for over two years with minimal downtime, providing the high-volume coarse aggregate needed for the factory's daily production.

Frequently Asked Questions - FAQ

Q1: What does "PC" mean in both models?

"PC" usually stands for "hammer crusher" in the industry. The "X" in PCX means "fine" or "new type." This shows it is different from the traditional PC series.

Q2: Can the PCX completely replace the PC hammer crusher?

No, it cannot replace it in all cases. But it is a great replacement in fine crushing and sand making applications. It can replace the PC hammer crusher and traditional two-stage or three-stage crushing. However, if your material is very hard (over 150MPa) or you do not need fine output (over 25mm), the PC hammer crusher is still a good, cost-effective choice.

Q3: Is the price difference big?

The PCX high efficiency fine crusher is more advanced. So it usually costs more than a PC hammer crusher of the same size. But the PCX can simplify your process (replacing two machines with one) and save energy. This can balance out or even reduce your total investment and operating costs.
