High-Efficiency Barite Raymond Mill for Fine Powder Processing

Barite (barium sulfate) is a dense mineral widely used as a weighting agent in drilling muds, as a filler in paints and rubber, and in medical X-ray shielding applications. Processing this heavy mineral into fine powder requires specialized grinding equipment that delivers consistent fineness, high throughput, and reliable performance.

Baichy's high-pressure barite Raymond mill—available in YGM65, YGM75, YGM85, YGM95, YGM130, and YGM160 models—is engineered for efficient barite powder production. With adjustable fineness from 30 mesh (0.613 mm) to 425 mesh (0.033 mm) and capacities ranging from 0.5 to 60 tonnes per hour, this equipment meets the diverse needs of mining, chemical, and construction industries.

Key Features of Baichy's Barite Raymond Mill

1. High-Pressure Spring Design for Enhanced Grinding

The YGM series Raymond mill improves upon traditional R-series mills by incorporating high-pressure spring devices. These springs increase the centrifugal force of grinding rollers on materials by 800-1500 kgf, boosting production capacity by 10-30% under the same power conditions. This design ensures thorough grinding of hard materials while maintaining consistent output quality.

2. Versatile Material Processing Capability

Barite Raymond mills can process over 400 types of non-flammable, non-explosive minerals with Mohs hardness up to 7 and moisture content below 6%. Applications include:

  ● Barite: For drilling mud weighting agents and filler materials

  ● Limestone and calcite: For construction and industrial fillers

  ● Dolomite, talc, and gypsum: For various powder applications

  ● Quartz and feldspar: For ceramics and glass production

3. Adjustable Product Fineness

Operators can easily adjust finished particle size from 0.613 mm (30 mesh) down to 0.033 mm (425 mesh), with some models achieving up to 1000 mesh for ultra-fine applications. This flexibility allows one machine to serve multiple product specifications.

4. High Screening Rate and Product Uniformity

The mill achieves a screening rate of 99%, ensuring consistent product quality with minimal oversized particles. The classifier system recirculates coarse material for regrinding, maximizing yield and reducing waste.

5. Energy-Efficient Operation

Replacing traditional sliding bearings with full-diameter, double self-aligning rod bearings reduces friction and energy consumption, making the equipment easier to start and more economical to operate.

6. Dust Collection System

Integrated bag dust filters capture fine powder during operation, meeting national emission standards and preventing barite dust from entering the workshop environment—protecting worker health and reducing material loss.

Complete Technical Specifications

Barite Raymond Mill Working Principle

The barite Raymond mill operates on a centrifugal grinding principle:

  ● Material Feeding: Raw barite is fed evenly into the grinding chamber via the feeder.

  ● Grinding Process: Due to centrifugal force during rotation, grinding rollers swing outward and press firmly against the grinding ring. A shovel carries material between the rollers and ring, where it is ground into powder.

  ● Classification: Ground powder is carried by airflow to the classifier. Coarse particles are returned to the grinding chamber for regrinding, while fine powder passes through to the cyclone collector.

  ● Product Collection: Fine powder is collected and discharged as finished product. The system operates under negative pressure, with excess air filtered through the dust collector.

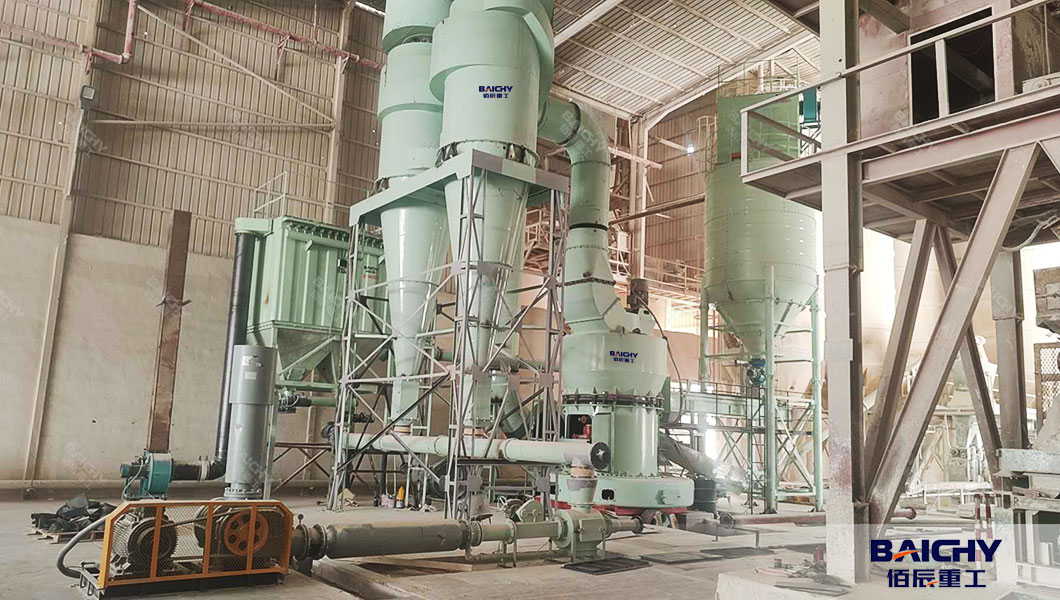

Customer Success Story: 5 TPH Barite Mill in the Philippines

A Philippine mineral processor recently installed a Baichy YGM95 high-pressure Raymond mill to grind barite to 200-325 mesh for drilling mud applications. The system consistently delivers 5 tonnes per hour with stable fineness and low maintenance requirements.

"The YGM95 exceeds our expectations—reliable output, excellent dust control, and energy-efficient operation. Baichy's technical support made the installation smooth and hassle-free."

This real-world success demonstrates the YGM series' capability to deliver dependable performance in demanding tropical environments.
