Barite Raymond Mill 5 TPH – Efficient Grinding Solution for Barite Powder Production

A 5 TPH Barite Raymond Mill is a specialized industrial grinding system designed to process raw barite (BaSO₄) into fine powder at a rate of 5 metric tons per hour. It is the industry-standard solution for medium-sized plants producing drilling-grade barite used in petroleum exploration, as well as fillers for paints and chemicals.

1. Why Choose a Raymond Mill for Barite?

When processing barite to a standard fineness (usually 200–325 mesh), the Raymond Mill offers distinct advantages in energy density and cost-to-output ratio:

   ● Higher Energy Efficiency: Saves approx. 30% in power consumption per ton of powder compared to ball mills.
   ● Precise Quality Control: Easily achieves the API 13A specific gravity requirement by ensuring uniform particle size distribution.
   ● Compact Footprint: Integrates crushing, grinding, and classifying in one vertical system, reducing land use by 40%.

   ● Reliable & Low Maintenance – Fewer moving parts than ultrafine mills.

Comparison: Raymond Mill vs. Alternatives

2. Recommended Raymond Mill for 5 TPH Barite Grinding

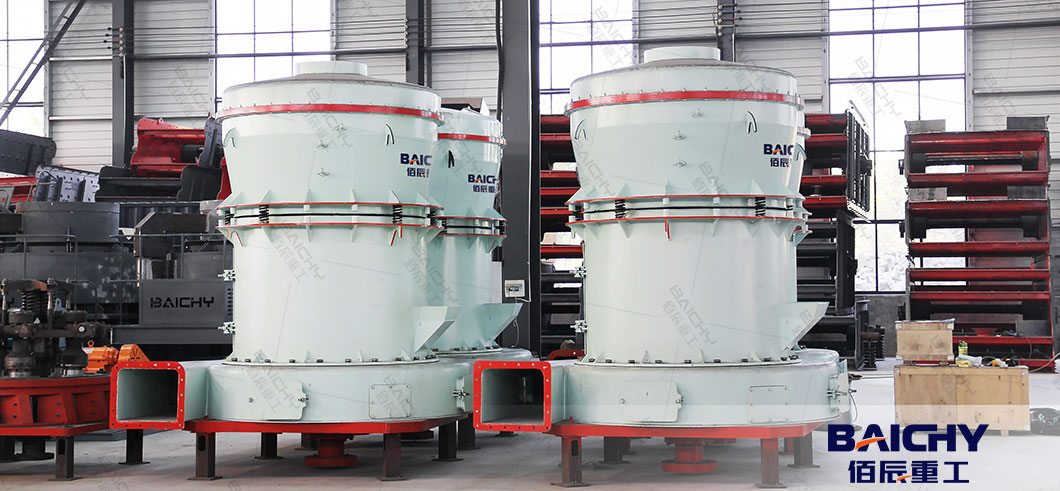

For a targeted output of 5 TPH at 200–325 mesh, the YGM130 Upgraded Raymond Mill is the recommended configuration.

- Model: YGM130 (Upgraded Raymond Mill)
- Max Feed Size: ≤210 mm (pre-crushed by jaw crusher)
- Output: 4.5 – 6.5 TPH (depending on hardness)
- Motor Power: 132 kW Main Mill + 37 kW Classifier
- Grinding Rollers: 5 rollers (high-wear-resistant alloy)
- Classifier: Dynamic or static (adjustable fineness)

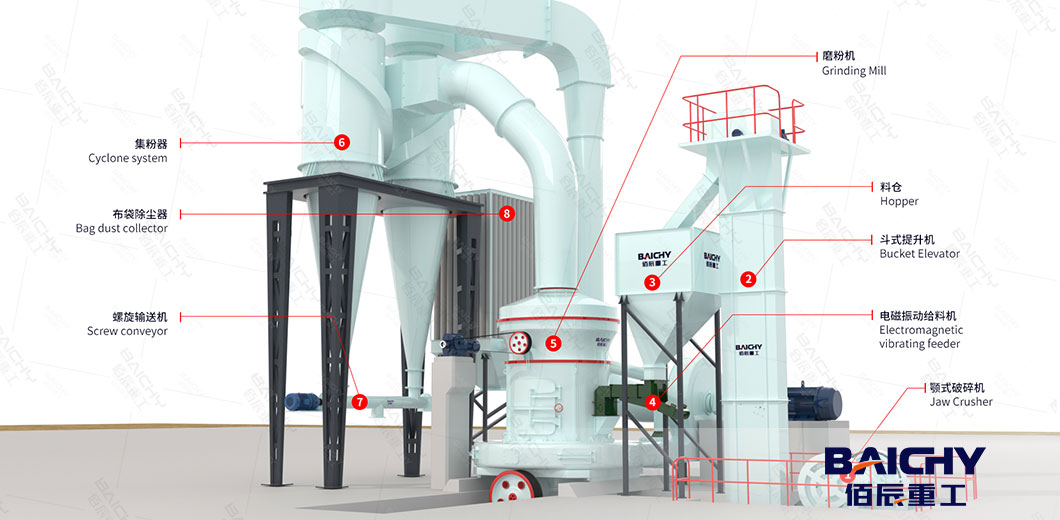

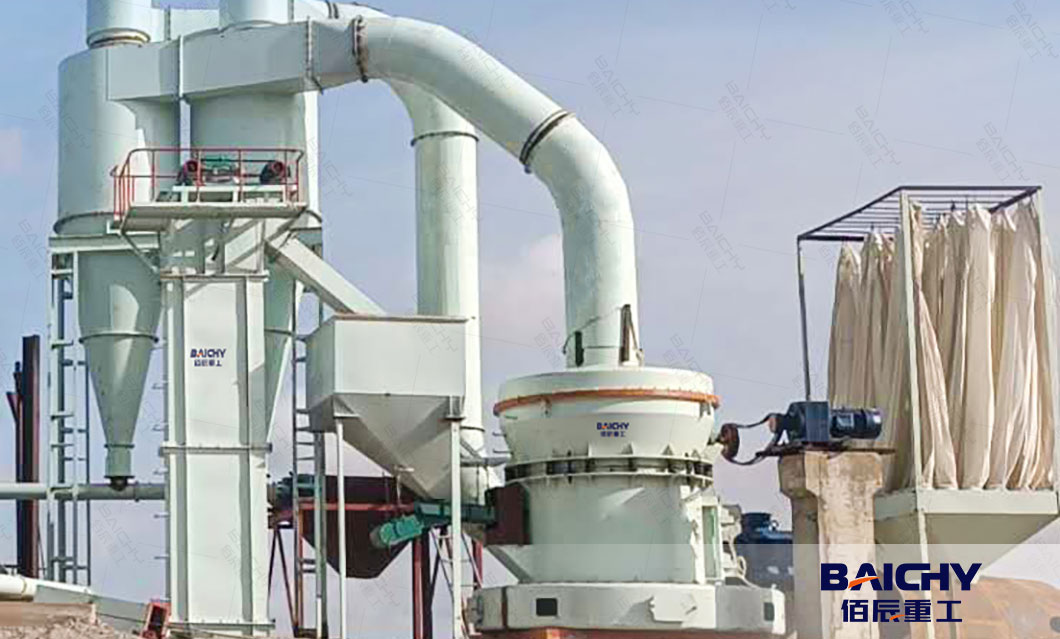

3. Key Components for a 5 TPH Barite Grinding Plant

- Jaw Crusher (Pre-crush barite to <30mm before grinding).
- Bucket Elevator (Feeds material into the mill).
- Raymond Mill (YGM130) (Main grinding unit).
- Pulse Dust Collector (Ensures clean production).
- Classifier (Controls final fineness).
- Packaging System (For bagging barite powder).

4.Key Features of the Barite Raymond Mill 5 TPH​​

- High Efficiency:​Equipped with advanced grinding technology, the mill ensures consistent and high-quality grinding results.
- Durable Construction: Built with high-quality materials, the mill is designed to withstand the rigors of continuous operation.
- Easy Maintenance:​The modular design allows for quick and easy maintenance, minimizing downtime and maximizing productivity.
- Energy Saving: Optimized for energy efficiency, the mill reduces operational costs while maintaining high performance.
- Versatility: Suitable for grinding a variety of materials, the mill is particularly effective for barite processing.

5. How to Meet API 13A Standards in Barite Grinding?

To ensure the 5 TPH output meets international oilfield standards (API 13A), operators should focus on three critical parameters:

   ● Feed Size Control: Maintain raw barite feed at <30mm. Over-sized feed increases vibration and reduces TPH by 15%.
   ● Moisture Management: Raw barite moisture should be <6%. Higher moisture leads to "pasting" on the grinding rollers, significantly dropping efficiency.
   ● Classifier Tuning: For drilling mud (200 mesh), the classifier speed should be set to allow a 97% pass rate, ensuring the final product’s Specific Gravity stays above 4.2 g/cm³.

The Barite Raymond Mill YGM130 is a reliable and efficient solution for grinding barite, catering to the needs of various industries. Its advanced features, cost-effectiveness, and versatility make it a top choice for businesses looking to optimize their barite processing operations.Baichy Machinery Company is headquartered in Zhengzhou, Henan. As a manufacturer specializing in the production of raymond mill for more than 20 years, it has a good reputation in the industry. If you have any questions about raymond mill plant, please click on the online customer service, which will answer you 24 hours a day.
