Mobile Sorting Line On Wheels For Quarries

In modern quarries and the construction recycling industry, finding ways to sort heavy materials quickly is absolutely critical. However, dealing with multiple job sites presents a massive challenge. Traditional stationary vibrating screen sorting plants require expensive, permanent concrete foundations. While heavy tracked screeners are great for deep mud, they are incredibly costly and difficult to transport long distances on public highways. This is exactly where the mobile sorting line on wheels becomes the ultimate solution. By mounting high-capacity vibrating screens and modular picking stations onto a heavy-duty trailer chassis, contractors can transport their entire sorting factory effortlessly. This guide explores how these highly portable wheeled systems can dramatically boost your daily production while slashing your expensive hauling costs.

What is a Mobile Sorting Line on Wheels?

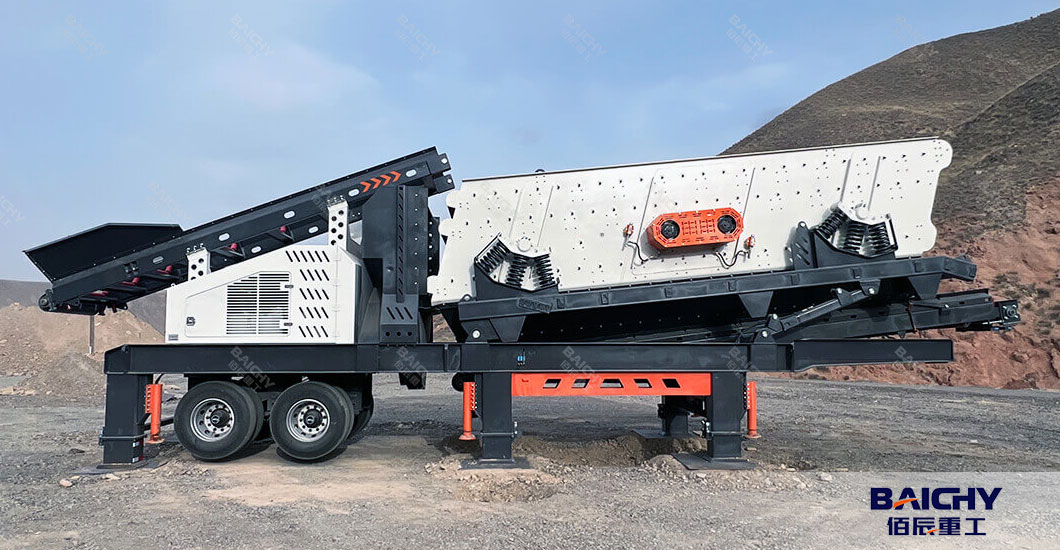

A mobile sorting line on wheels is a fully integrated material processing system mounted directly onto a heavy-duty, road-legal trailer. Instead of slowly crawling on heavy steel tracks, this entire sorting plant can be quickly hitched to a standard semi-truck. The machine is essentially a complete factory designed for rapid relocation.

The core components of this system include a heavy-duty receiving hopper, a multi-deck vibrating screen, powerful overband magnetic separators, and fold-out discharge conveyors. Many advanced models also feature an enclosed, climate-controlled picking station where workers can safely remove wood, plastic, or uncrushable trash by hand before the clean stone is sorted and stockpiled.

Key Features of a Trailer-Mounted Sorting Station

Modern wheeled sorting lines are packed with smart engineering features designed to maximize your daily profits and protect your workforce.

1. High-Speed Highway Mobility

The greatest advantage of a wheeled sorting line is its incredible high-speed mobility. Unlike heavy tracked machines that require expensive, specialized flatbed trailers and special road permits to move, a wheeled system is designed for the highway. You simply hook the trailer to a truck and drive directly to your next quarry or urban demolition site, saving you thousands of dollars in heavy transport fees.

2. Modular Picking Bays

Safety and comfort are crucial when sorting heavy construction waste. Advanced mobile lines feature enclosed, modular picking bays. These secure, climate-controlled cabins protect workers from the dangerous dust, extreme heat, and loud noise of the quarry. Inside the cabin, workers stand safely beside the conveyor belt, manually picking out unwanted trash like wood, rubber, and plastic to ensure the final stone aggregate is perfectly clean.

3. Advanced Magnetic Separation

When recycling crushed concrete, hidden steel rebar is a massive problem. To solve this, these mobile sorting lines are equipped with highly advanced magnetic separation technology. A powerful overband magnet is suspended directly over the main conveyor belt. As the crushed material flows underneath, the magnet automatically pulls out all the scrap iron and steel wire, depositing it into a separate waste bin for easy recycling and extra profit.

4. Rapid Setup and Teardown

Time is money in the aggregate business. A wheeled sorting line is designed for immediate processing. When the truck arrives at the quarry, the operator simply lowers the built-in hydraulic jacking legs to stabilize the machine on the dirt. The discharge conveyors fold out hydraulically within minutes. There is absolutely no need to pour expensive concrete foundations or build complex steel structures. You can literally start sorting rocks within an hour of arriving.

Applications in Modern Quarries and Recycling

These portable, wheeled sorting lines are incredibly versatile. They are heavily utilized across three major processing industries to separate valuable materials from useless dirt and trash.

1. Aggregate and Gravel Sorting

In a traditional commercial quarry, these machines are used primarily for aggregate and gravel sorting. The heavy-duty vibrating screens can separate raw, blasted rock into two, three, or even four different specific sizes simultaneously. This precise sorting allows quarry owners to quickly produce exact sizes of premium gravel and road base to meet the strict demands of local highway contractors and ready-mix concrete plants.

2. C&D Waste Recycling

The construction and demolition (C&D) waste recycling industry relies heavily on these mobile stations. When old buildings are torn down, the resulting rubble is a messy mix of concrete, bricks, wood, plastic, and steel. The wheeled sorting line is the perfect tool for this chaos. The vibrating screens remove the fine dirt, the magnets extract the steel, and the human pickers remove the wood and plastic, leaving behind perfectly clean, reusable crushed concrete.

3. Topsoil and Mulch Processing

Beyond heavy rocks, these machines are excellent for the landscaping industry. Landscapers use them for high-capacity topsoil and mulch processing. As raw dirt is fed into the machine, the vibrating mesh screens filter out large, unwanted rocks, tree roots, and hidden trash. The final product is a beautifully fine, clean, and highly nutritious topsoil that can be sold at a premium price to local garden centers and residential developers.

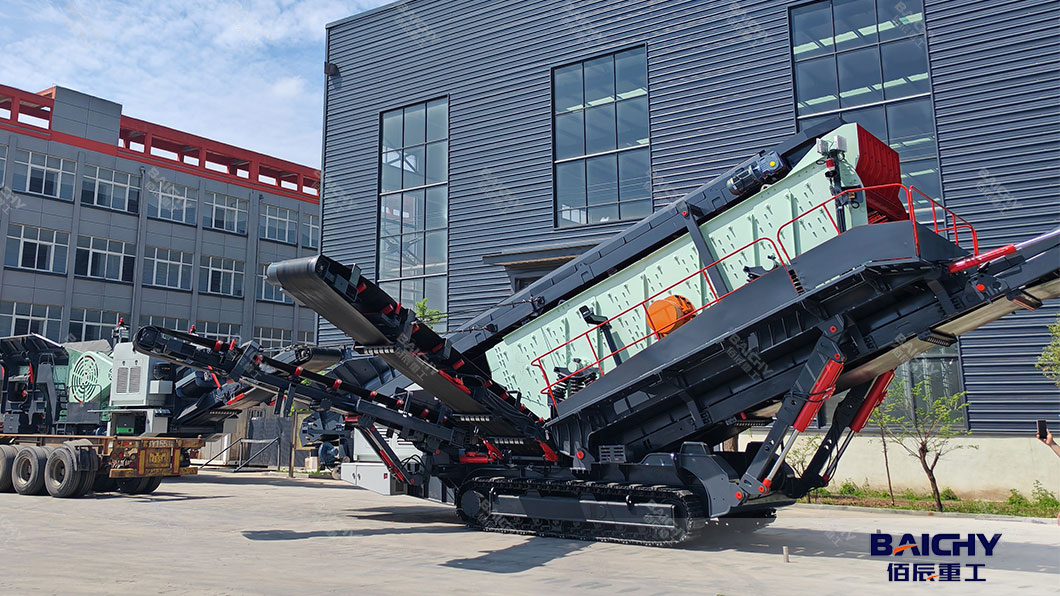

Tracked vs. Wheeled Mobile Screeners: Which is Better?

When buying a mobile screener, you must choose between steel tracks or rubber wheels. If you are operating deep inside a muddy, wet mine and need the machine to slowly follow an excavator all day, a tracked screener offers the extreme off-road traction you need.

However, if you operate multiple small quarries, or if you are a recycling contractor who constantly moves between different city demolition sites every week, the wheeled option is far superior. It eliminates the need to rent expensive heavy-haul trailers for every move, drastically lowering your daily logistical costs and significantly speeding up your overall project timeline.

A mobile sorting line on wheels is the ultimate, highly profitable solution for modern quarries and fast-paced recycling contractors. By combining rapid highway mobility, precise vibrating screens, and safe manual picking stations, these trailer-mounted machines allow you to produce premium, clean aggregates anywhere, at any time. Contact the expert engineering team at Baichy Machinery today! We design and manufacture robust mobile sorting lines on wheels tailored perfectly to your specific material needs and budget. Reach out now for a free, customized equipment quote!
