Baichy 300t/h Mobile Crushing Plant For Quarry & Mining

Baichy 300t/h mobile crushing plant is a fully integrated portable crushing and screening system designed for large-scale aggregate production. It combines feeding, crushing, screening, and conveying into one mobile unit, enabling fast relocation and rapid commissioning. Compared with traditional stationary crushing lines, Baichy mobile crusher eliminates complex civil foundation work and significantly reduces installation time and project cost. It is widely used in quarrying, mining, highway construction, and construction waste recycling projects where high mobility and fast deployment are required.

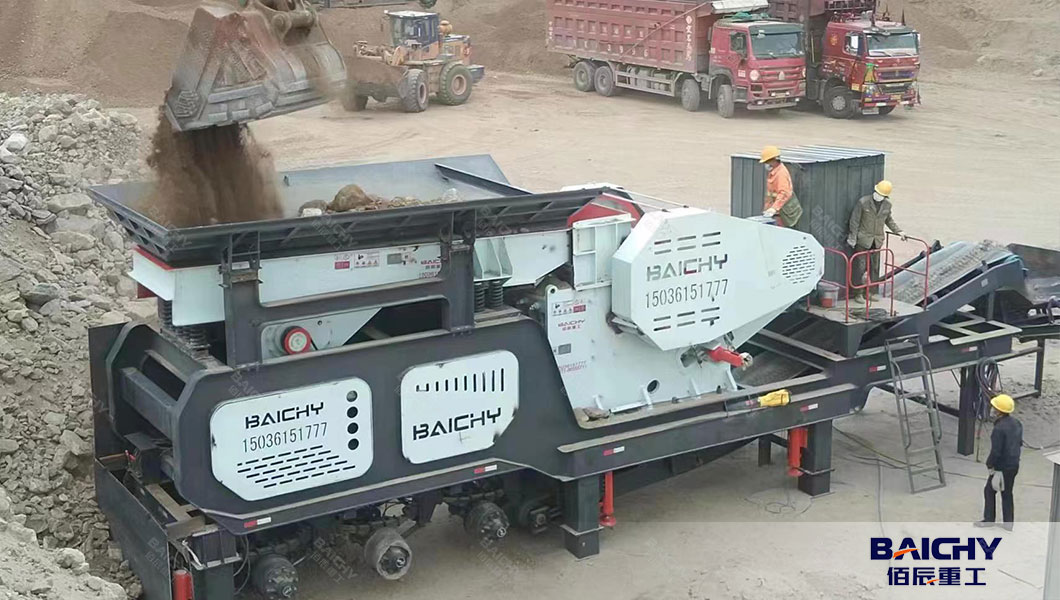

Baichy Moible Crusher 300 t/h

Working Principle of Baichy Mobile Crusher Plant

Baichy mobile crushing plant operates through a continuous and intelligent crushing workflow:

1. Feeding System

Raw materials such as limestone, basalt, granite, or demolition waste are loaded into the hopper by excavators or wheel loaders.

2. Primary Crushing Stage

A high-strength jaw crusher performs initial crushing, reducing large stones into medium-size aggregates.

3. Secondary Crushing Stage

Depending on material hardness and output requirements, a cone crusher or impact crusher further refines the material.

4. Screening System

A vibrating screen separates materials into multiple grades such as:

0–5 mm fine sand
5–10 mm
10–20 mm
20–40 mm aggregates

5. Conveyor Discharge

Belt conveyors transport finished products directly to stockpiles or next processing stage.

Technical Parameters of Baichy 300t/h Mobile Crushing Plant

Baichy offers customized configurations based on project requirements:

   ● Capacity: 200–350 t/h (standard 300 t/h)
   ● Max Feed Size: ≤800 mm
   ● Output Size: 0–5 mm, 5–10 mm, 10–20 mm, 20–40 mm
   ● Crusher Options: Jaw + Cone / Jaw + Impact
   ● Power System: Diesel engine or electric drive
   ● Chassis Type: Wheel-mounted or crawler-type mobile platform
   ● Control System: Intelligent PLC control system
   ● Installation Time: 2–5 days

This flexible design ensures compatibility with different raw materials and production goals.

Core Equipment Configuration (Baichy Mobile Solution)

A complete Baichy mobile crushing system includes:

   ● ZSW vibrating feeder (stable feeding system)
   ● PE series jaw crusher (primary crushing)
   ● Hydraulic cone crusher / impact crusher (secondary crushing)
   ● Circular vibrating screen (multi-grade screening)
   ● Belt conveyor system (efficient material transfer)
   ● Central control cabin (intelligent operation system)

Each module is optimized for high efficiency and low maintenance.

Why Baichy Mobile Crushing Plant Outperforms Traditional Plants?

1. Faster Deployment & Installation

No large civil foundation required. The system can be operational within days after arrival.

2. Higher Mobility

Crawler or wheel-mounted design allows direct relocation between quarry faces.

3. Stable 300t/h Continuous Output

Engineered for continuous heavy-duty operation with stable performance.

4. Flexible Crushing Combinations

Supports multiple configurations based on material hardness:

Hard rock: Jaw + Cone
Medium rock: Jaw + Impact

5. Superior Aggregate Shape

Especially with impact or cone crushing, final products are cubic-shaped and high quality.

6. Lower Total Project Cost

Reduces civil works, transportation cost, and installation downtime.

Application Scenarios of Baichy Mobile Crusher

Baichy 300t/h mobile crushing plant is widely used in:

   ● Limestone, granite, basalt quarrying
   ● River stone aggregate production
   ● Mining crushing operations
   ● Construction and demolition waste recycling
   ● Road base and railway ballast production
   ● Cement raw material preparation

It is especially suitable for projects requiring frequent relocation and fast production start.

Baichy Global Project Case Study

This Baichy 300 tons per hour mobile crushing solution was deployed for limestone processing in Colombia, assembled with a mobile jaw crusher, mobile cone crusher and matched vibrating screen unit. The system produces premium graded aggregates sized 0–5 mm, 5–20 mm and 20–40 mm to meet local construction raw material demands.

The whole line runs steadily with consistent hourly throughput and achieved quick, smooth commissioning. The customer highly praised the compact mobile design: installation cycles were drastically shortened versus fixed crushing stations. Steady output, uniform finished aggregate quality and boosted overall operational efficiency brought remarkable economic gains. The client also noted easy relocation and low on-site foundation workload, greatly cutting early construction investment and setup labor costs.

Baichy Mobile Crusher In Columbia

Frequently Asked Questions (FAQ)

Q1: What is the advantage of Baichy mobile crushing plant?

It offers fast installation, high mobility, flexible configuration, and stable 300t/h production capacity.

Q2: What materials can Baichy mobile crusher process?

It can process limestone, granite, basalt, river stone, ore, and construction waste.

Q3: Can it work in hard rock mining?

Yes. With jaw crusher + cone crusher configuration, it is ideal for hard rock crushing.

Q4: How long does installation take?

Typically 2–5 days for full setup and commissioning.

Q5: Can output sizes be customized?

Yes, by adjusting crusher settings and vibrating screen mesh.
