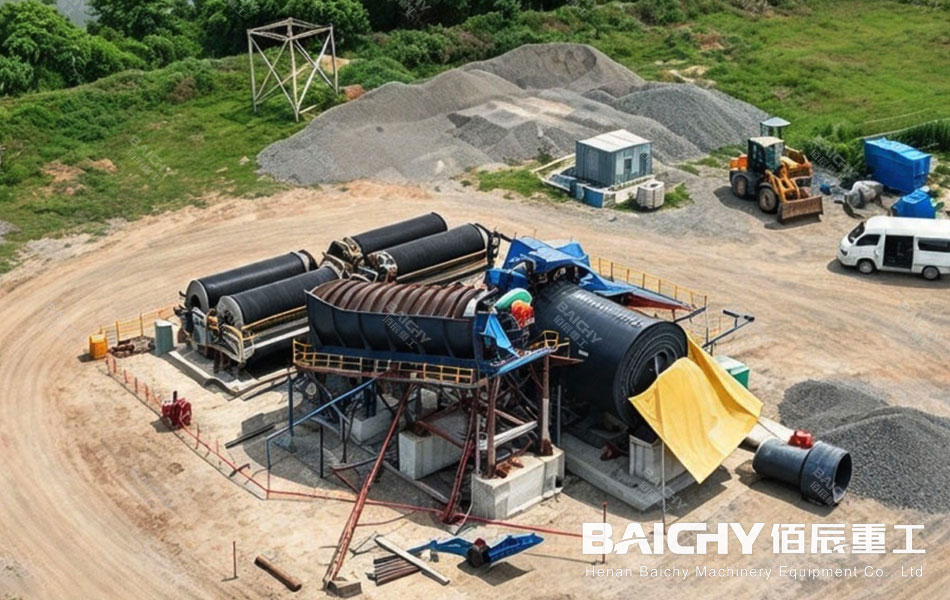

Iron Ore Beneficiation Plant in Philippines

Project Overview

A Philippines mining company required a reliable iron ore beneficiation solution to improve the quality of locally mined hematite ore. Based on the ore characteristics and processing requirements, Baichy Machinery provided key beneficiation equipment, including a 3200×4500 ball mill and spiral classifier, to support the customer's hematite processing plant.

The customer adopted a gravity separation process for hematite beneficiation. By utilizing the density difference between iron minerals and gangue minerals, the process can effectively upgrade iron ore concentrate while reducing waste materials.

Hematite Beneficiation Process Design

The hematite beneficiation process is mainly determined by the ore particle size, mineral composition, and degree of mineral liberation. According to different ore characteristics, hematite gravity separation can be divided into coarse particle separation and fine particle separation.

1. Crushing and Grinding Process

The raw hematite ore first enters the crushing stage to reduce the particle size and prepare suitable feed material for grinding. For finely disseminated hematite, grinding is an important step to achieve mineral liberation. The ore enters the ball mill 3200×4500 supplied by Baichy Machinery, where the iron minerals are fully separated from gangue minerals through efficient grinding. After grinding, the slurry enters the spiral classifier for particle size classification. Qualified fine particles are sent to the beneficiation stage, while coarse particles return to the mill for further grinding, forming a closed-circuit grinding system.

2. Gravity Separation Process

After classification, the suitable slurry enters the gravity separation stage. Gravity separation mainly uses the density difference between hematite and waste rock minerals. Heavy iron-bearing minerals settle faster, while lighter gangue minerals are separated and discharged as tailings. For coarse-grained hematite ore with relatively high geological grade, the "crushing without grinding" process can be adopted. Coarse tailings can be removed directly through gravity separation, reducing grinding energy consumption. For fine-grained hematite ore, grinding and gravity separation are combined to achieve better mineral liberation and improve iron concentrate grade.

3. Magnetic Separation and Gravity Separation Combination

For some weakly magnetic iron ores, gravity separation alone may not achieve the required concentrate grade. Therefore, a combined magnetic separation + gravity separation process is often used. The process usually adopts:

● Weak magnetic separation to remove strongly magnetic minerals such as magnetite;
● Strong magnetic separation to discard low-grade tailings;
● Gravity separation to further upgrade magnetic concentrate.

This combined process improves beneficiation efficiency and produces higher-grade iron concentrate.

Main Equipment Supplied by Baichy Machinery

According to the project requirements, Baichy provided key equipment for the hematite beneficiation plant, including:

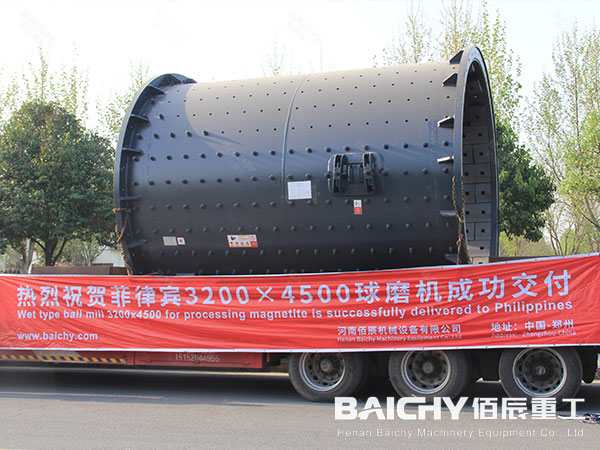

1. Ball Mill 3200×4500

The large-scale ball mill is used for grinding crushed iron ore. It provides sufficient grinding force to achieve mineral liberation and improves the efficiency of downstream beneficiation.

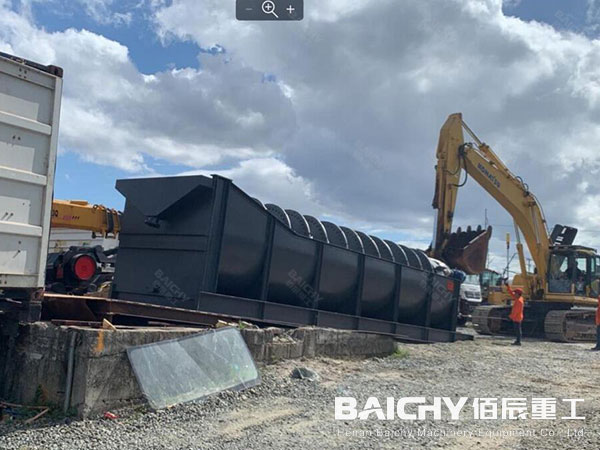

2. Spiral Classifier

The spiral classifier is used for slurry classification. It controls grinding fineness, separates qualified materials, and improves the stability of the entire beneficiation process.

3. Other Supporting Equipment

A complete iron ore beneficiation plant may also include:

● Crushing equipment
● Feeding equipment
● Belt conveyors

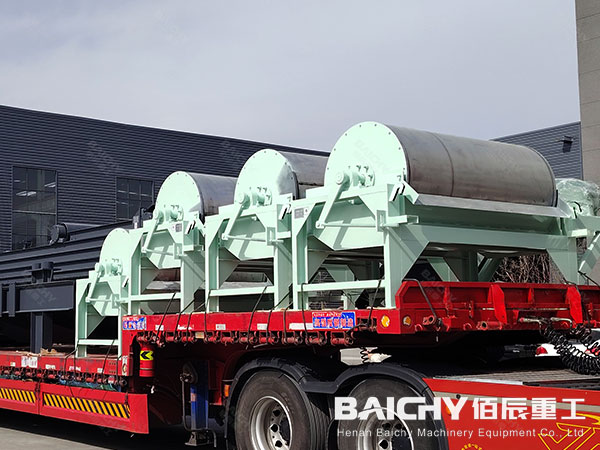

● Magnetic separators
● Gravity separation equipment
● Concentrate and tailings handling systems

The final equipment configuration is customized according to ore properties and production capacity.

Advantages of This Hematite Beneficiation Solution

1. Customized Process Design

Different hematite ores have different mineral characteristics. Baichy designs beneficiation solutions according to actual ore conditions, including grinding fineness, separation method, and equipment selection.

2. High Resource Utilization Efficiency

The combination of efficient grinding and gravity separation improves mineral liberation and reduces the loss of valuable iron minerals in tailings.

3. Energy-Saving and Cost-Effective Operation

For suitable hematite ores, gravity separation can reduce the use of chemical reagents and lower operating costs. The optimized process design helps customers achieve stable production with reasonable investment.

4. Stable Production and Easy Maintenance

The production line adopts mature beneficiation technology and reliable equipment. The simple structure and convenient maintenance reduce downtime and improve plant operation efficiency.

Crushing Solutions Design

Baichy Machinery can customize a crushing plant for you based on the specific conditions of your project: such as the construction site, hardness of the raw materials, output, output size, budget, etc.

On-site Installation & Training

Our team provides on-site installation and thorough training to ensure safe operation of the crushing plant.

Quality Control & Global Delivery

Rigorous quality checks ensure compliance with standards, and we handle worldwide delivery to your location.

After-Sales Support

Baichy Machinery provides you with spare parts supply, project transformation, investment return analysis, etc.

Crushing Solutions Design

On-site Installation & Training

Quality Control & Global Delivery

After-Sales Support

Frequently Asked Questions (FAQs)

Find answers to the most common questions about Baichy Machinery. If you can’t find what you’re looking for here, please contact us.

1.What is an iron ore processing plant?

An iron ore processing plant is a facility that crushes, grinds, and separates raw iron ore to produce a high-grade iron concentrate. It typically includes crushing, grinding, gravity separation, magnetic separation, and dewatering circuits.

2.What equipment is used in an iron ore processing plant?

Common equipment includes jaw crushers, cone crushers, ball mills, spiral classifiers, magnetic separators, gravity separators (such as jigs and shaking tables), thickeners, and filter presses.

3.What beneficiation methods are used for iron ore?

The choice depends on ore type and particle size. Gravity separation is suitable for coarse-grained hematite with high density difference, while magnetic separation is used for magnetite and fine-grained weakly magnetic ores. For complex ores, a combined gravity-magnetic process is often adopted.

4.What is the typical capacity of an iron ore processing plant?

Capacity varies widely, from 10 t/h for small pilot plants to over 1,000 t/h for large industrial operations. The plant capacity depends on ore properties, equipment size, and project requirements.
