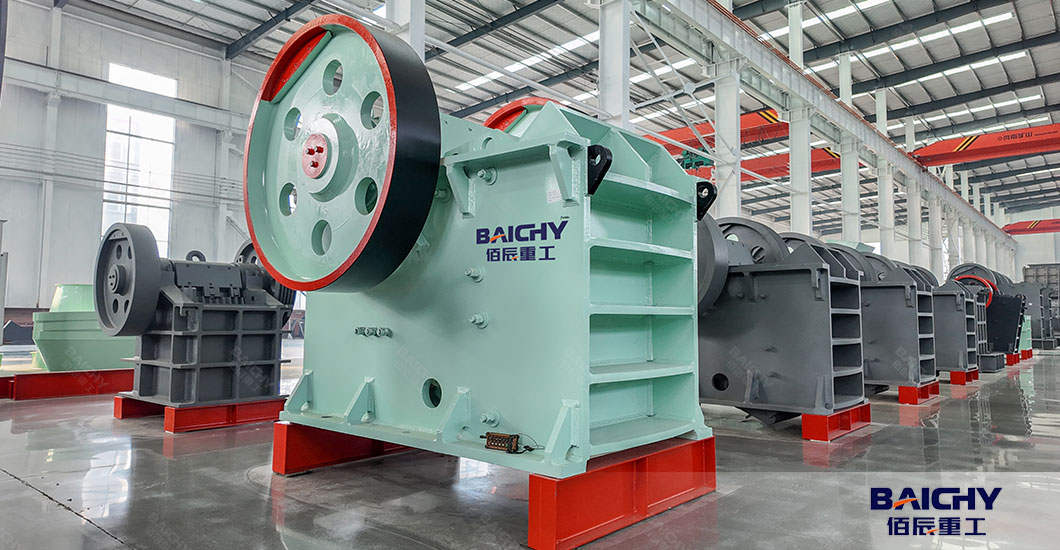

The PE600X900 jaw crusher features a deep, symmetrical crushing cavity that optimizes the engagement angle and stroke, ensuring high reduction ratios for materials with compressive strengths up to 320MPa. Its heavy-duty eccentric shaft and high-quality manganese steel jaw plates provide the structural integrity required for continuous primary crushing in granite, basalt, and iron ore operations. The design focuses on maximizing throughput while minimizing wear on internal components, providing a reliable foundation for any multi-stage crushing circuit.
1.Jaw Crusher PE 600X900 Technical Parameters
The jaw crusher PE600X900 represents a benchmark in primary crushing technology. Featuring a feed opening of 600x900 mm, this unit is engineered to handle large boulder sizes effectively. The design philosophy focuses on maximizing throughput while maintaining a compact footprint. By balancing the weight of the flywheels with the eccentric shaft rotation, the engineering ensures stable operation under heavy loads. This model serves as the critical first stage in many aggregate production lines, offering reliable performance.
● Structural Integrity for High-Hardness Materials
To withstand the immense pressures of crushing high-hardness materials like granite or basalt, the PE600X900 utilizes a heavy-duty welded frame. The use of high-strength structural steel provides the necessary rigidity to prevent deformation during peak stress cycles. Precision welding techniques and stress-relief heat treatments further enhance the longevity of the chassis. This robust construction ensures that the machine maintains its alignment and integrity even when subjected to the continuous impact of hard mineral ores.
● Kinematics and the Deep Crushing Chamber
The kinematics of the PE600X900 are optimized through a deep crushing chamber design and a precise nip angle. This geometry facilitates immediate material engagement, ensuring that hard rocks are gripped firmly without slipping. The stroke length is calculated to provide maximum compression at the discharge point, increasing the reduction ratio. By preventing material buildup and blockages, the optimized motion of the swing jaw enhances overall flow. This design is essential for maintaining a consistent feed rate in primary stages.
● Metallurgical Advantages of Wear Components
High-hardness primary crushing demands superior metallurgy for all contact surfaces. The PE600X900 incorporates jaw plates made from high-manganese alloy, specifically chosen for its work-hardening properties. As abrasive rocks strike the surface, the alloy becomes harder, extending the operational life of the wear parts. Advanced heat-treatment processes ensure that the internal toughness remains high while the surface resists wear. This strategic choice of materials significantly reduces the frequency of component replacements.
● Operational Efficiency and Maintenance Simplified
Operational efficiency is maintained through a simplified discharge adjustment system, allowing operators to control the output size with precision. The mechanical shim adjustment or hydraulic options provide flexibility for varying production requirements. Furthermore, the design prioritizes ease of access for routine maintenance tasks, such as lubrication and bolt tightening. By minimizing the time required for inspections and parts replacement, the PE600X900 ensures maximum uptime and lower total cost of ownership in demanding environments.
4.Which Crusher Is Matched With Jaw Crusher PE600X900?
Jaw crusher 600x900 is typically matched with secondary crushing equipment like a cone crusher or impact crusher. Common matching models include:
The specific choice depends on the material hardness, desired output size, and production capacity requirements. A vibrating feeder (e.g., GZD-1100x4200) and vibrating screen are also essential components in the complete crushing circuit.
5. Case Studies
A granite quarry in Southeast Asia selected the PE600X900 as its primary jaw crusher. It reliably processed raw granite stones with a feed size of up to 480mm. The crusher maintained a stable output of 120 tons per hour, producing well-sized material. This efficient primary crushing stage significantly reduced the processing load and wear on the downstream secondary cone crushers, enhancing the entire production line's throughput and operational economy.
In a demanding basalt processing application, the PE600X900 jaw crusher was integrated into a mobile crushing station. It successfully handled the extreme hardness and abrasiveness of basalt feed material. The crusher demonstrated high durability against wear and delivered a consistent, well-graded particle size distribution. This performance ensured stable feed for subsequent stages and highlighted the machine's reliability in tough, mobile operating conditions.
People also frequently asked for-FAQ
1.What is the output of a jaw crusher?
The output of a jaw crusher is typically a uniform, cubical-shaped material with a size range of 10-350mm.
2.What is the maximum capacity of a jaw crusher?
Jaw crusher is mainly three series:
● PE jaw crusher: capacity 20-1100t/h; Feed size 120-1200mm; Discharge size 25-360mm
● SKJ European Jaw crusher: capacity 100-1200t/h; Feed size 580-1180mm; Discharge size 10-275mm
● C series jaw crusher: capacity 50-1400t/h; Feed size 400-1200; Discharge size 40-300mm
3. How to buy a crusher?
In choosing the right stone crusher, you must know these key aspects of the material you'll be handling: abrasiveness and hardness, raw material dimensions, final size, capacity, reliable manufacturer to get good price and solution.
