In primary crushing, getting the raw rock into your machine is just as important as the crusher itself. If you dump massive boulders directly into a jaw crusher, you risk severe jamming, motor overloads, and unpredictable production rates. This is why a complete hopper jaw crusher system is absolutely essential. By combining a storage bin, a controlled feeder, and a heavy-duty rock crusher, you guarantee a smooth operation. Let’s explore how this integrated system maximizes your profits.
What is a Hopper Jaw Crusher System?

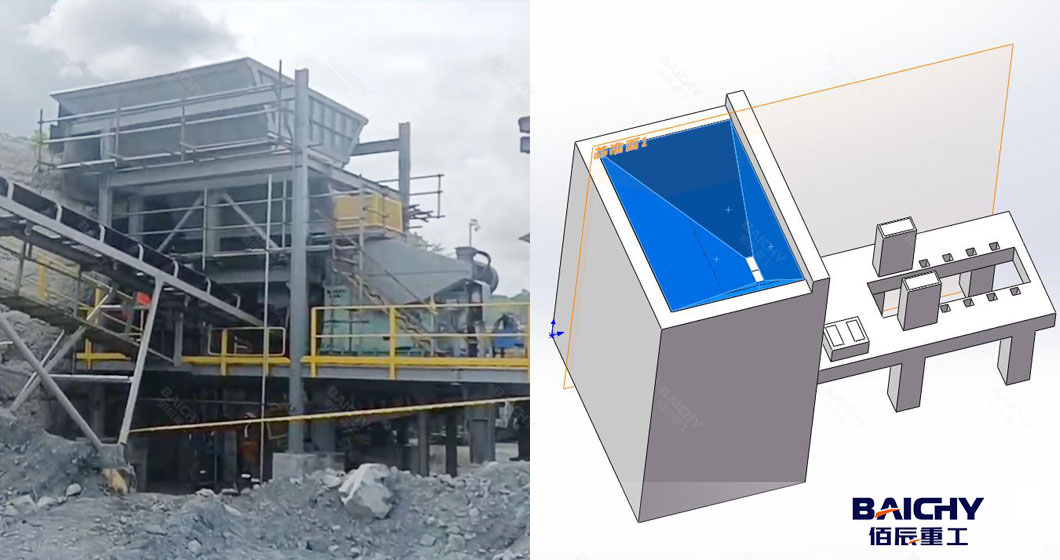

A hopper jaw crusher is not just a single piece of equipment. It is a fully integrated, turn-key system designed to optimize your material flow. The front end features a large steel hopper that stores the raw rocks. Below it, a vibrating feeder strictly controls the speed at which the material enters the machine. Finally, the heavy-duty primary jaw crusher at the back crushes the rocks down to size. This teamwork prevents blockages and keeps your primary crushing station running perfectly.
Key Components of the Hopper Feeder Crusher Setup
1. The Heavy-Duty Hopper
The heavy-duty hopper acts as the primary receiving reservoir for your entire plant. When a massive excavator or wheel loader dumps tons of shot rock, the hopper absorbs that tremendous initial impact. It serves as a vital buffer zone between your loading equipment and the crusher. By holding a large volume of raw material, the hopper ensures that your production line never runs completely empty. This constant supply is the secret to maintaining a highly efficient and profitable operation.
2. The Variable Speed Feeder
The variable speed feeder is the brain of the material flow. Situated directly beneath the hopper, it uses controlled vibrations to move the rocks steadily forward. Most modern feeders come equipped with sturdy grizzly bars. These bars act as a filter, allowing sticky dirt and natural fine sand to fall through before they ever reach the crushing chamber. By adjusting the vibration speed, operators can prevent the jaw crusher from choking, ensuring maximum performance without any sudden jams.
3. The Primary Jaw Crusher
The primary jaw crusher is the heavy-duty muscle of the entire setup. Featuring a massive feed opening and a deep V-shaped crushing cavity, it uses immense compressive force to easily break down the hardest rocks. As the swinging jaw plate repeatedly presses against the fixed plate, massive boulders shatter into manageable pieces. Operators can quickly adjust the closed side setting (CSS) to control the exact size of the discharged gravel, perfectly preparing it for the secondary crushers.
Main Applications: What Can a Hopper Jaw Crusher Process?
1. Hard Rock Mining
Hard rock mining demands incredibly rugged and reliable equipment. A hopper jaw crusher system is perfectly engineered to process extremely hard and abrasive ores. Whether you are crushing solid granite, tough basalt, dense quartzite, or valuable iron ore, this system handles the brutal conditions with ease. The steady feed prevents dangerous power spikes, while the high-manganese steel jaw plates easily chew through the toughest minerals on earth without suffering from rapid, costly wear.
2. C&D Waste Recycling
Construction and demolition (C&D) recycling is a massive industry that requires specialized handling. The hopper jaw crusher is perfectly suited for breaking down large chunks of broken concrete, thick asphalt slabs, and mixed demolition debris. Even when the concrete contains heavy steel rebar, the slow, powerful squeezing action of the jaw plates effortlessly snaps the material apart. This allows recycling contractors to quickly separate the valuable steel from the reusable crushed concrete.
3. Aggregate Production
High-quality aggregate production relies entirely on a steady, uninterrupted flow of material. Commercial quarries use hopper jaw crushers to produce massive volumes of coarse gravel every single hour. Because the feeder strictly controls the rock input, the crusher maintains a consistently high tons-per-hour (TPH) output. This raw, crushed aggregate is then easily transported on a conveyor belt directly to secondary cone or impact crushers to be perfectly shaped for asphalt and concrete use.
3 Types of Hopper Jaw Crusher Configurations
1. Stationary Hopper Jaw Systems
Stationary hopper jaw systems are the traditional choice for massive, permanent mining operations. These enormous units are bolted securely onto deep, reinforced concrete foundations. They feature gigantic hoppers designed to accept loads directly from massive haul trucks. While they require a significant upfront investment in civil engineering and take weeks to install, they offer the highest possible production capacity and incredible longevity for commercial quarries operating for decades.
2. Modular Jaw Crusher Modules
Modular jaw crusher modules represent the perfect middle ground for modern aggregate plants. In this setup, the hopper, vibrating feeder, and jaw crusher are pre-installed onto a standardized, heavy-duty steel skid. This stand-alone machine is shipped directly to your site and requires zero expensive concrete foundations. You simply place it on flat ground, wire it up, and start crushing within days. It is highly cost-effective and perfect for medium-term projects lasting a few years.
3. Mobile and Tracked Jaw Crushers
Mobile or tracked jaw crushers are the ultimate solution for contractors who demand extreme flexibility. The entire hopper and crushing system is mounted on a heavy-duty crawler chassis powered by a diesel engine. Operators can literally drive the crushing plant directly up to the blasted rock face or navigate through tight urban demolition sites. While they have a much higher initial purchase price, they save contractors an absolute fortune in expensive haul truck and material transport fees.
Top Benefits of Using a Hopper Feeder with Your Jaw Crusher
1. Maximize Your TPH Output
Using an integrated hopper and feeder is the absolute best way to maximize your tons-per-hour (TPH) output. Without a feeder, the crusher constantly alternates between being completely empty and dangerously overflowing. This stops you from reaching your true production potential. A variable speed feeder guarantees a continuous, perfectly spaced flow of rock. This keeps the crushing chamber full at all times, ensuring your machine consistently operates at its absolute maximum efficiency rating.
2. Prevent Jamming and Choking
There is nothing worse than shutting down your entire plant because your primary crusher choked on a massive rock. A hopper feeder setup eliminates this nightmare completely. The operator can clearly see the material flow and adjust the feeder speed to prevent overcrowding. More importantly, the integrated grizzly bars automatically filter out sticky mud, clay, and small stones. This keeps the crushing cavity clean and free-flowing, drastically reducing unplanned downtime and maintenance hours.
3. Protect the Crusher Frame
Your jaw crusher is a massive investment, and protecting it should be your top priority. If an excavator drops three tons of solid granite directly onto the crusher's moving jaw, the mechanical shock can severely damage the internal bearings and main shaft. The hopper acts as an essential mechanical shield. It safely absorbs the violent impact of the falling rocks. The feeder then gently slides the stones into the crushing chamber, extending the overall lifespan of your expensive equipment.
4. Lower Labor and Operating Costs
Integrating a hopper and feeder system actively reduces your daily operating costs. Because the material flow is completely automated, you do not need an extra worker standing by to manually clear jams or monitor the crusher inlet. The excavator operator simply dumps the raw material into the large hopper and focuses entirely on loading. This streamlined, automated workflow reduces manual labor, lowers overall fuel consumption, and creates a much safer, highly profitable working environment.
Whether you are running a massive commercial quarry or processing concrete at an urban recycling site, a well-matched hopper jaw crusher system is the foundation of your success. It prevents costly blockages, protects your machinery, and guarantees a highly profitable, steady material flow. Are you ready to upgrade your primary crushing station? Contact Baichy Machinery today! Our expert engineers will design a customized, high-capacity crushing solution tailored exactly to your project needs.
