Which Key Components Define a High-Performance Modular Type Stone Crusher Plant?

In the aggregates and mining industries, the shift toward modular crushing plant solutions represents one of the most significant advancements in recent years. But what exactly distinguishes a high-performance modular stone crusher plant from a traditional stationary operation? The answer lies in understanding the critical components that define these systems—from pre-engineered structural design to intelligent automation.

Modular crushing plants solve a fundamental challenge that has long plagued operators: how to achieve stationary-plant performance without the extended engineering timelines, high labor costs, and complex on-site construction of custom-built systems. By using pre-designed and pre-engineered components that bolt together on-site, modular plants can reduce installation time by 30-40% compared to conventional stick-built plants .

1. The Steel Structure: Foundation of Modular Performance

Rugged Construction

The structural framework is arguably the most overlooked yet essential component. High-performance modular plants feature steel structures manufactured with galvanized or painted finishes, incorporating fully integrated walkways, stairs, guardrails, and access platforms .The entire module is CE compliant and built to perform in demanding quarry and mining applications .

Extra-Heavy-Duty I-Beam Frames

For the most demanding applications, high-performance modules utilize extra-heavy-duty I-beam frames that provide superior stability and vibration resistance . This robust construction ensures the plant maintains precise alignment under full load, extending component life and reducing maintenance requirements.

Bolt-Together Simplicity

Perhaps the defining feature is the bolt-together assembly method. Unlike traditional plants that require extensive concrete foundations and structural welding, modular plants can be assembled with basic tools and minimal civil works. Some configurations even allow installation directly on compacted gravel bases .

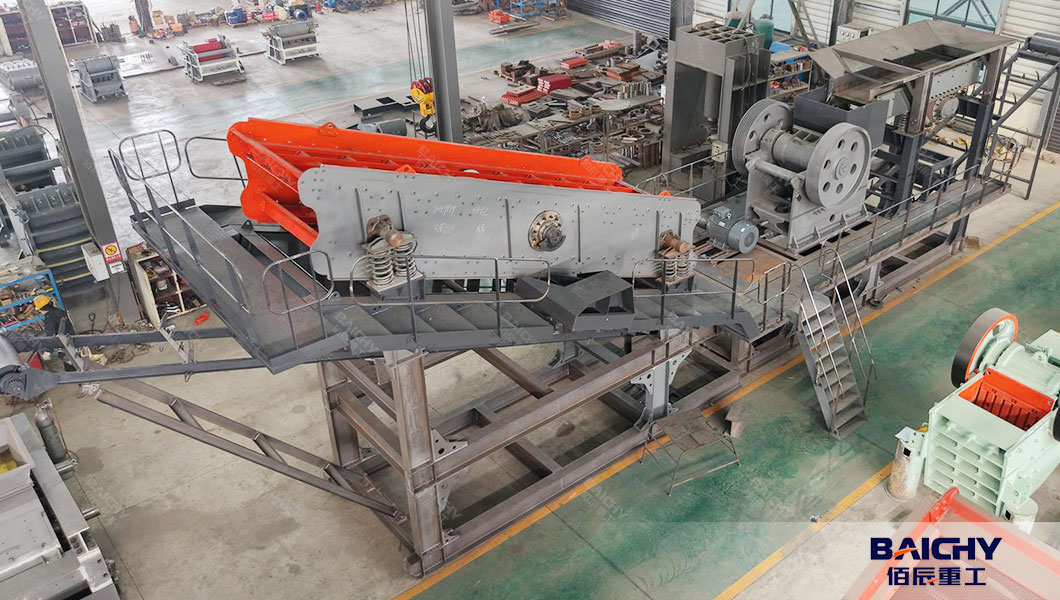

2. Primary Crushing Modules: The Jaw Crusher Station

High-Capacity Feeding Systems

A high-performance modular jaw crusher plant begins with a properly sized feed hopper and vibrating grizzly feeder. The feeding system combines a large-capacity truck dump hopper with a heavy-duty vibrating grizzly feeder, capacities ranging from 100 to 500 tons per hour .

Industry-Leading Jaw Chambers

The jaw crusher itself must deliver consistent performance across a wide range of materials. High-performance modules utilize proven jaw crusher technology such as: hydraulically actuated wedge systems for quick closed-side setting adjustments, single-toggle design for high production efficiency , forged heavy-duty eccentric shafts ensuring reliability in hard rock applications (Granite, Basalt)

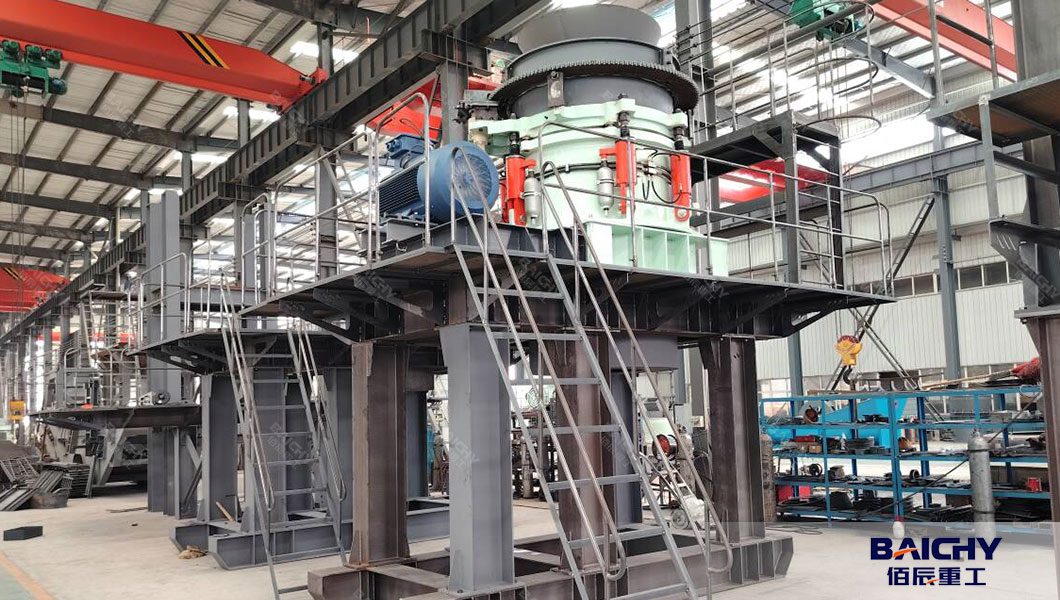

3. Secondary Crushing: Cone Modules

High-Efficiency Cone Crushers

To achieve high-quality cubical end-products, the secondary crushing stage is critical. The high-performance modular plant favors Multi-Cylinder Hydraulic Cone Crushers.
  ● Trampl Iron Protection: If a non-crushable object enters, the hydraulic cylinders automatically release the pressure and reset the cavity.
  ● IoT Integration: Real-time monitoring of oil temperature, pressure, and liner wear status.

4. Screening and Classification Modules

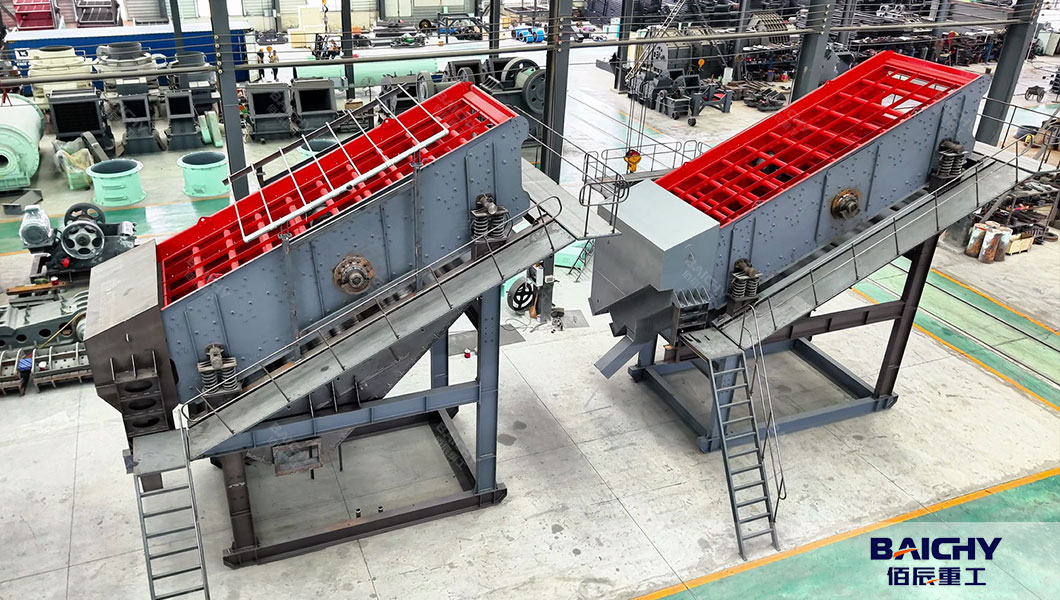

Incline Screen Stations
Screening modules are designed for maximum production efficiency in applications ranging from sand and gravel to crushed stone and recycled materials. Incline 3-deck or 4-deck Screen Modules feature robust static structures carrying the screening unit, with integrated material discharge chutes, walkways, and access steps for maintenance .

5. Plug-and-Play Electrical and Control Systems

High-performance modular plants arrive pre-wired with plug-and-play design, dramatically reducing on-site electrical installation time. Robust, weather-protected control panels house user-friendly computer controls that simplify operation and monitoring .

  ● Advanced Automation Capabilities
  ● Modern modular plants incorporate sophisticated controls that enable:
  ● Centralized monitoring of all plant operations
  ● Remote diagnostics and predictive maintenance capabilities
  ● Automated material tracking and reporting

6. Conveying and Material Handling Components

Integrated Discharge Conveyors
Well-designed modular plants include pre-engineered product conveyors with features such as:
  ● Skirted conveyor designs with replaceable feed box liners
  ● Multiple discharge conveyor positions for flexible site layout
  ● Straight-line conveyor configurations for efficient material flow

7. Maintenance and Safety Features

Wrap-Around Access Platforms
Maintenance accessibility directly impacts uptime. High-performance modules feature wrap-around maintenance access platforms that provide safe, convenient access to all service points .

  ● Comprehensive Safety Systems
  ● Standard safety features include:
  ● Guard rails and handrails throughout the structure
  ● Strategic placement of emergency stops
  ● Oversize walkways with anti-slip surfaces
  ● CE compliance meeting international safety standards

8. Transportability and Logistics

Container-Compatible Design

A defining feature of high-performance modular plants is their ability to ship in standard 40-foot shipping containers plus flat racks . This standardization reduces shipping costs and enables rapid mobilization to new sites.

Relocation Capability

Unlike permanent custom-built plants, modular systems can be disassembled, transported, and reassembled at new locations, preserving the initial investment and providing flexibility for project-based operations .

Conclusion: The High-Performance Modular Plant Defined

A truly high-performance modular stone crusher plant is defined by the seamless integration of these key components:

  ● Structural Excellence: Galvanized steel construction with bolt-together assembly

  ● Processing Power: Proven crusher technology from leading manufacturers

  ● Control Intelligence: Pre-wired automation with advanced monitoring capabilities

  ● Operational Accessibility: Comprehensive safety features and maintenance access

  ● Logistical Flexibility: Container-shippable design enabling rapid deployment

The modular approach delivers what every aggregate producer needs: faster time to production, reduced installation costs, predictable project timelines, and the flexibility to adapt as operations evolve. With pre-engineered components that work together as an integrated system, these plants represent the future of efficient, high-performance crushing operations. Looking for a customized modular crushing solution? Contact Baichy Machinery Expert for a 50TPH-500TPH project price and ROI analysis.
