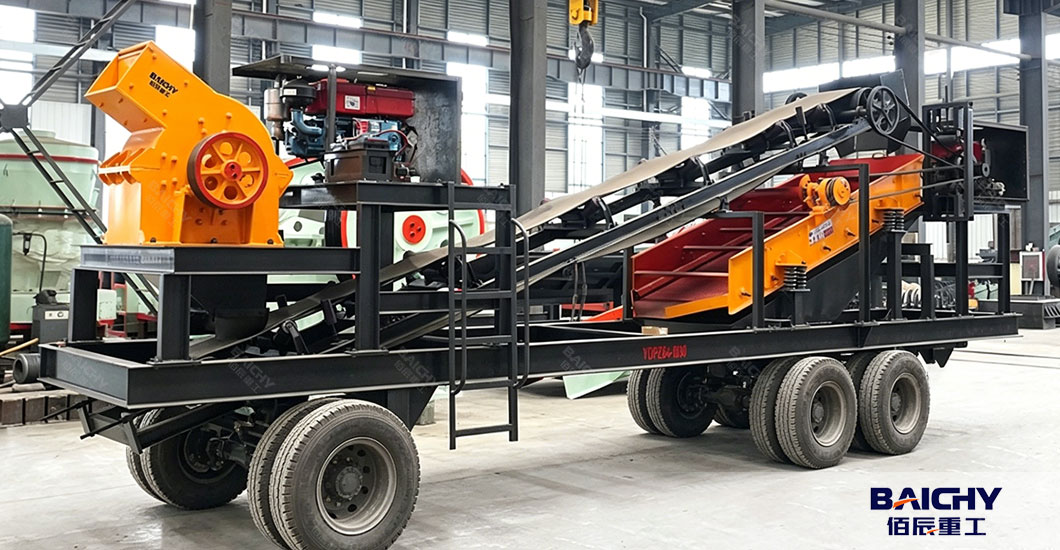

What is a Portable Sand Grinding Mill Machine？

A portable sand grinding mill machine, also known as a hammer crusher mill, is a mobile sand making system designed for crushing medium-hard and brittle materials into sand-sized particles. It integrates crushing, shaping, and screening functions on a mobile chassis, enabling fast relocation between quarries and construction sites. It is widely used for limestone, coal, gypsum, weathered rock, and construction waste, producing 0–5 mm manufactured sand suitable for road and building applications.

Working Principle

The system operates through high-speed impact crushing. Material is fed into the crushing chamber, where rotating hammers impact and break it into smaller particles. The crushed material passes through a screen system, while oversized particles are returned for re-crushing in a closed loop. This process ensures high reduction ratio, stable particle size, and efficient sand production.

Key Components

The system includes a vibrating feeder for stable feeding, a hammer crusher unit with rotor and impact hammers, a screening system for controlling final output size, a conveyor system for material transport, a mobile wheel or track chassis for flexible movement, a diesel or electric power unit, and a dust suppression system for environmental control.

Technical Advantages

High reduction ratio up to 1:20
Fast installation within 1–3 days
Produces stable 0–5 mm sand
Low transportation and civil cost
Flexible deployment for mining and construction projects

Application Areas

Used in road construction, building aggregate production, limestone quarry crushing, mining tailings processing, and construction waste recycling. It is especially suitable for remote regions requiring mobile production capacity.

Nigeria Case Study

A construction aggregate company in Lagos, Nigeria deployed a portable hammer crusher mill system to process limestone and weathered rock. The system included a vibrating feeder, hammer crusher unit, conveyor system, diesel generator, and screening module. With a feed size of ≤300 mm, the system achieved 80–100 TPH capacity and produced 0–5 mm sand with a 90% passing rate. Installation was completed in 2 days, and fuel consumption was reduced by approximately 18% compared to a fixed plant. The project significantly improved production flexibility and reduced transportation costs.
