Top 5 Granite Crushing Machines: Expert Guide to Low Wear Costs

Granite is one of the hardest and most abrasive stones on earth. With a Mohs hardness of 6-7 and high silica content, granite doesn't just break; it grinds away steel. For quarry owners, this presents a dangerous financial trap. If you use a limestone crusher (like a Hammer Crusher) on granite, you might be replacing wear parts every 24 hours. The profit isn't in crushing the stone; it's in saving the liners.

At Baichy Machinery, we have engineered hundreds of granite crushing lines. Based on wear analysis and operating costs, here are the 5 Best Machines for Granite Crushing, ranked by their role in your production line.

1. The Jaw Crusher (PE Series)

Role: Primary Crushing (The Unskippable First Step)

You cannot process granite without a Jaw Crusher. It is the only machine capable of taking 1000mm blasted boulders and reducing them to 300mm chunks without destroying itself.
● Why it works for Granite: It operates on "Compressive Force." Granite has high compressive strength, and the Jaw Crusher matches this with heavy flywheels and high-manganese steel jaw plates.
● Baichy Advantage: Our PE Series features a Deep V-Cavity. This ensures that the hard granite is gripped firmly (no "pop-out" or fly-rock) and crushed progressively. This design maximizes capacity and extends the life of the jaw plates.

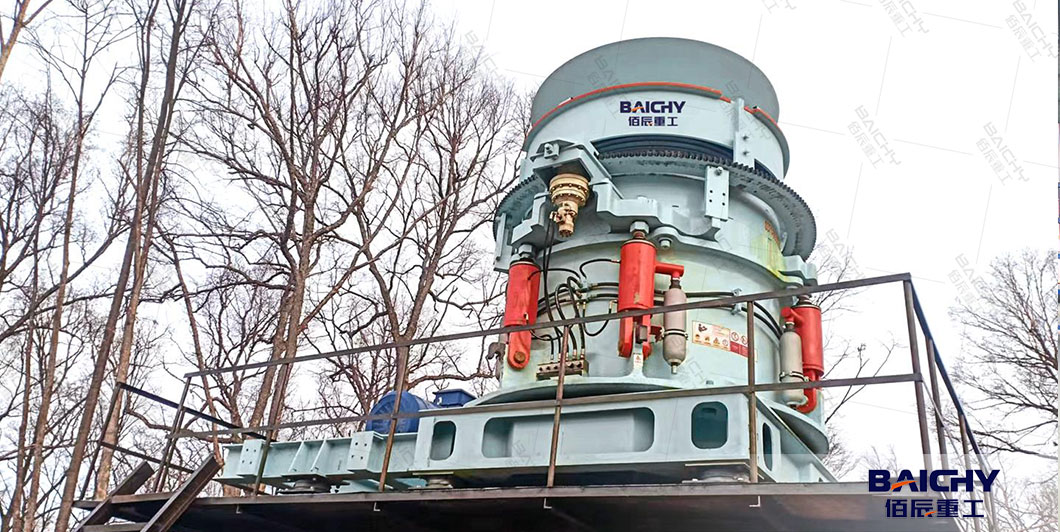

2. The Cone Crusher (HPC / CH Series)

Role: Secondary Crushing (The "Cost-Saver")

This is the most critical decision in your plant design. For granite, you MUST use a Cone Crusher as your main secondary machine. We suggest single cylinder CH series cone crusher and multi-cylinder HPC cone crusher for your reference.
● Why NOT an Impact Crusher here? While Impact Crushers are cheaper to buy, their blow bars wear out incredibly fast when hitting hard granite.
● Why the Cone Crusher is King: It uses the "Lamination Principle" (rock crushing rock). The mantle and concave squeeze the stone, utilizing the granite's own hardness against itself.
● The ROI: Although a Hydraulic Cone Crusher has a higher upfront cost, it saves massive amounts of money on wear parts. It is the only way to keep your Cost-Per-Ton low.

3. The Impact Crusher (PFW Series)

Role: Tertiary / Shaping (Use with Caution)

Impact crusher could crusher granite but with higher wearing parts cost. However, it is exclellent to shape the rocks into good granulate for high standard construction aggregates.
● Here is the expert nuance: Cone Crushers are efficient, but they can produce "flaky" (needle-like) stones. If your client demands premium cubical aggregate for highway asphalt, you need an Impact Crusher—but only for the final step.
● The Strategy: Do not use it for heavy reduction. Use it after the Cone Crusher to "shape" the stone.
● Baichy Advice: When using PFW Impact Crushers on granite, always opt for High-Chrome Blow Bars to resist the abrasive silica content.

4. The VSI Sand Maker (VSI5X/6X Series)

Role: Sand Making (0-5mm)

If you need to turn granite into manufactured sand, traditional "Fine Crushers" (Hammer style) will fail. You need a Vertical Shaft Impact (VSI) crusher.
● The Secret: The VSI uses a "Rock-on-Rock" cavity design. The granite is accelerated to high speeds and collides with other granite rocks lining the chamber.
● The Benefit: Since the stone hits a "bed of stone" rather than metal liners, the wear cost is minimized. It produces the highest quality cubical sand on the market, perfect for high-strength concrete.

5. Mobile Crushing Station

Role: Flexibility / Remote Processing

Granite quarries are often located in rugged, remote terrain. Hauling raw boulders to a stationary plant costs fuel and time.
● The Solution: Put the factory on wheels. A Mobile Jaw + Mobile Cone combination allows you to drive the machines directly to the blast face.
● The Baichy Configuration: We mount our heavy-duty PE Jaw and HPC Cone onto mobile chassis (tire or crawler). You get the robust performance of a stationary plant with the flexibility to move as the mining face advances.

Summary: How to Configure Your Line?

To maximize profit, match the machine to your goal:

Your Goal	Recommended Configuration	Wear Cost	Product Shape
Lowest Operating Cost	Jaw Crusher + Cone Crusher	Lowest	Good
Best Aggregate Shape	Jaw + Cone + Impact Crusher (Shaping)	Medium	Excellent (Cubical)
Making Sand	Jaw + Cone + VSI Sand Maker	Low	Excellent

Processing granite is a battle against wear. The wrong machine will eat your profits in spare parts. At Baichy Machinery, we don't just sell machines; we engineer Granite Solutions. We calculate your wear life and ROI before you even buy the equipment. Equipment selection is only the first step; true success lies in controlling the entire process, from ore characteristic analysis to process design.
