PF vs PFW Impact Crusher: Key Differences & How to Choose

PF and PFW horizontal shaft impact crushers are the two most popular secondary crushing machines in aggregate production, mining, and construction waste recycling. Many buyers mistake them for identical models due to similar appearance and working principles. In fact, the PFW European-style impact crusher is an upgraded version of the traditional PF impact crusher, with obvious improvements in structural design, operational stability, and intelligent adjustment. Choosing the wrong model will lead to low crushing efficiency, high wear costs, or unqualified finished particle size. This article clearly compares PF vs PFW impact crushers and helps you make a precise selection.

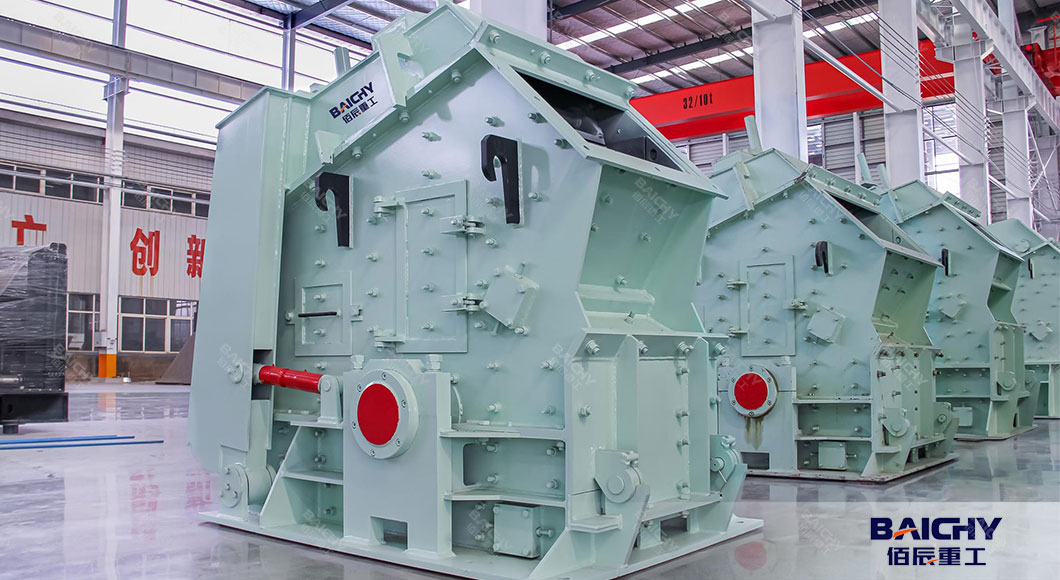

 PF impact crusher

1. Core Structural Differences

1.1 Blow Bar Design & Fixing Method

The traditional PF impact crusher adopts a straight rectangular blow bar fixed by pressure blocks. This simple structure is low-cost but features small material contact area and unstable fixing. Under long-term high-intensity impact, the blow bar is prone to loosening and uneven wear.
In contrast, the PFW impact crusher uses a European crescent-shaped blow bar with a wedge fastening device. The crescent design increases effective impact contact area for higher crushing efficiency. The wedge fixing structure locks the blow bar more firmly, avoiding displacement during high-speed operation and greatly improving overall equipment stability.

1.2 Rotor & Crushing Chamber

PF series crushers are equipped with lightweight conventional rotors with limited inertia, which results in weaker impact force and lower crushing efficiency for hard materials. Meanwhile, the traditional PF impact crusher adopts a two-crushing-chamber design. Its standard crushing chamber is designed for basic medium-fine crushing with no targeted optimization for high-standard shaping, and it can only complete two rounds of material impact crushing, leaving limited room for particle optimization.

PFW models adopt a heavy-duty optimized rotor with larger rotational inertia, delivering stronger crushing force and more uniform particle breaking effect. Different from PF models, the PFW European impact crusher features an upgraded three-crushing-chamber structure. The multi-stage crushing design enables materials to undergo repeated impact, crushing and shaping in three chambers, which further reduces material rebound and overflow, ensures full crushing of raw stones, and greatly improves finished particle uniformity.

1.3 Adjustment & Maintenance System

PF impact crushers rely on manual mechanical adjustment for discharge particle size. The maintenance process is cumbersome, requiring manual disassembly and regular shutdown inspections, which increases downtime and labor costs.
As an upgraded European model, PFW impact crushers are equipped with a hydraulic adjustment system and top-opening maintenance structure. Operators can quickly adjust the discharge size and easily replace vulnerable parts without complex disassembly, greatly saving maintenance time and reducing operational difficulty.

2. Performance & Operation Differences

2.1 Crushing Efficiency & Finished Quality

PF impact crushers meet basic crushing demands with stable output for conventional materials. However, they have a higher rate of flaky particles and cannot support ultra-fine shaping or high-standard aggregate production.
Benefiting from the crescent blow bar and heavy rotor, PFW impact crushers achieve a higher crushing ratio and better cubical particle shape. The finished aggregates feature uniform size and fewer defects, fully meeting strict standards for highways, high-speed railways, and commercial concrete aggregates.

2.2 Wear Resistance & Service Life

PF vulnerable parts wear faster under continuous heavy-load operation, requiring frequent replacement and increasing long-term operating costs. PFW models adopt optimized wear-resistant configurations and stable locking structures, effectively reducing part wear. The service life of core vulnerable parts is 20%–30% longer than that of traditional PF crushers.

2.3 Energy Consumption & Stability

PF crushers are suitable for low-intensity, intermittent production. They are prone to vibration and insufficient crushing force when processing hard materials or continuous large-volume feeding.
PFW impact crushers feature balanced rotor operation and matched power design, running more stably under 24-hour continuous working conditions. The optimized crushing workflow also reduces invalid energy consumption, achieving higher output with lower comprehensive power consumption.

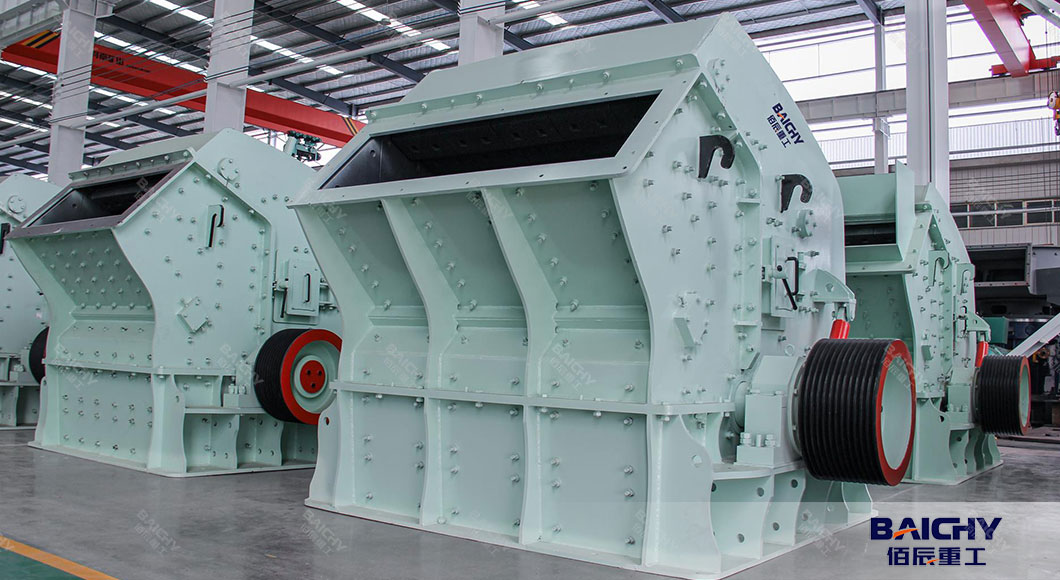

PFW Impact Crusher

3. Application Scenarios & Suitable Materials

● PF Impact Crusher Application
Ideal for small and medium-scale production lines with ordinary quality requirements. It is mainly used for crushing soft and medium-low abrasive materials such as limestone, coal gangue, and construction waste. It is the best choice for cost-sensitive conventional aggregate projects with low maintenance budgets.

● PFW Impact Crusher Application
Suitable for medium and large standardized production lines and high-standard engineering projects. It can process medium-hard materials with slightly higher abrasiveness and is widely used in high-grade road aggregates, mine fine crushing, and large-scale construction waste recycling scenarios that require stable long-term operation and high-quality finished products.

4. Quick Comparison Table: PF vs PFW Impact Crusher

5. How to Choose Impact Crusher: PF or PFW ?

Choose PF impact crusher if you have a limited budget, process soft materials, pursue simple operation, and only need ordinary finished aggregate quality for general construction projects.
Choose PFW impact crusher if you run a large-scale continuous production line, require high-standard particle shaping, need lower long-term maintenance costs, and pursue higher operational stability and production efficiency.

PF and PFW impact crushers differ greatly in structure, performance, and comprehensive cost. The traditional PF model is cost-effective for basic crushing needs, while the upgraded PFW European-style impact crusher outperforms in stability, finished quality, and maintenance convenience. Matching the correct model to your material type, output demand, and product standards is the best way to improve production efficiency and maximize project profits. Welcome to contact Baichy Machinery to get solution about your impact stone crusher plant project.
