What Machine to Grind Volcanic Tuff to 25 Mesh Size?

Volcanic tuff is a unique rock formed from compacted volcanic ash and fragments ejected during eruptions . Its porous, lightweight nature makes it valuable across industries—from construction materials and cement additives to horticulture and even cat litter production. But to unlock its full potential, you need to grind it to the right particle size.

So, what machine can grind volcanic tuff to 25 mesh? The short answer: roller crushers, Raymond mills and specialized volcanic rock grinding mills.

What Does "25 Mesh" Mean?

Before selecting a machine, let's clarify the target. In industrial grinding, "mesh" refers to the number of openings per inch in a standard sieve. 25 mesh means particles are approximately 0.7 mm (700 microns) in size. This is considered a moderately coarse powder—coarser than flour but finer than sand.

For reference:

25 mesh ≈ 0.7 mm

50 mesh ≈ 0.3 mm

200 mesh ≈ 0.074 mm (typical for cement-grade powder)

Grinding volcanic tuff to 25 mesh requires equipment that can produce a consistent, uniform particle distribution without excessive fine powder.

Suitable Machines for Grinding Volcanic Tuff to 25 Mesh

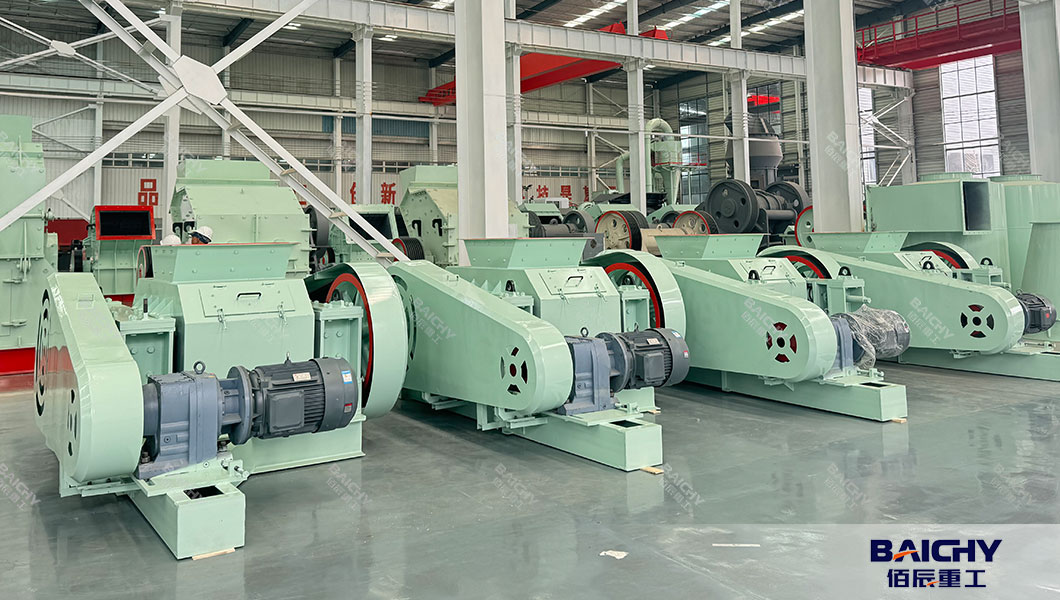

1. Roller Crushers (Double Roller Crushers)

Roller crushers are among the most effective machines for grinding volcanic tuff to the 25–50 mesh range. They work by crushing material between two rotating rollers, producing a uniform product with minimal fines.

Key Advantages:

  ● Adjustable output size: Can produce from 50 mesh up to 20 mm

  ● Efficient for hard materials: Volcanic tuff can be abrasive; roller crushers handle high wear resistance

  ● High capacity: Models range from 2–10 t/h to over 300 t/h

Best Use Case: Medium to large-scale operations where consistent 25-mesh output is required with minimal dust.

2. Raymond mills

Raymond mills are classic grinding machines widely used for non-flammable, non-explosive minerals like volcanic tuff. They combine grinding, classifying, and conveying in one system.

Key Advantages:

  ● Precise particle control: Can easily achieve 25 mesh or finer ( need speical device for this coarse powder)

  ● Integrated air classification: Ensures uniform particle size distribution

  ● Proven technology: Reliable and widely available

Best Use Case: Smaller to medium production runs where product quality and consistency are priorities. Some advanced models can achieve 325 mesh or higher

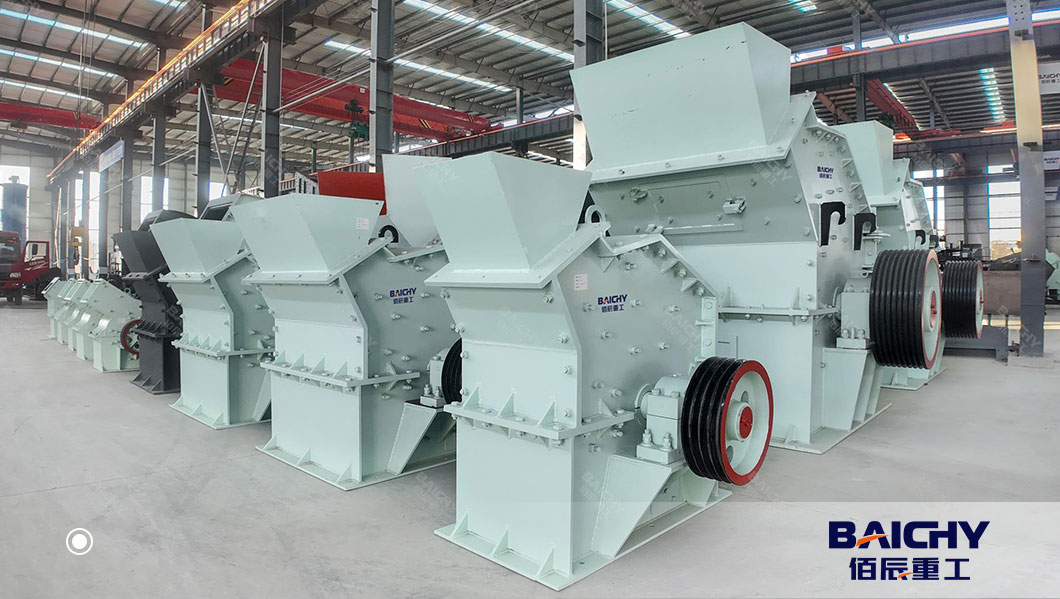

3. PCX High-Efficiency Fine Crusher (Hammer Type)

If your goal is high-volume production and 25 mesh is your maximum size limit rather than a strict powder requirement:

Why it works: The PCX series uses high-speed hammers to impact the tuff. By using a screen with 1mm holes, a significant portion of the discharge will fall into the 20-30 mesh range.
Benefits: Massive throughput and lower initial capital expenditure, though it produces more dust than a mill.

Technical Factors to Consider

When selecting your tuff grinding machine, prioritize these three parameters:

  ● Moisture Content: If the tuff moisture exceeds 5%, a Raymond mill with a hot air system or a pre-drying stage is necessary.
  ● Abrasiveness: Ensure the grinding rollers and rings are made of high-manganese steel or specialized alloys to reduce downtime.
  ● Collection Efficiency: 25 mesh production generates "fines." A high-quality pulse dust collector is essential to meet modern environmental standards.

For most volcanic tuff processing plants, a Raymond Mill is the ideal machine to reach a 25 mesh size due to its adjustability and mature technology. If you are looking for higher capacity and durability, the High-Pressure Suspension Mill is the superior investment.

FAQ for Volcanic Tuff Grinding Mill

Q: What is the equivalent millimeter size for 25 mesh?

A: 25 mesh is approximately 0.707 millimeters. It is commonly used for agricultural soil conditioners and coarse construction additives.

Q: Can a Ball Mill grind tuff to 25 mesh?

A: While a ball mill can reach this size, it is generally considered "overkill" for 25 mesh. Ball mills are more efficient for fine grinding (below 200 mesh) and have higher energy consumption for coarse powder tasks compared to Raymond mills.

Q: What is the average capacity of a tuff grinding machine?

A: Depending on the model (e.g., 4R3216 to 5R4128), capacities typically range from 1 to 20 tons per hour for 25-mesh volcanic rock powder.

Q: How do I control the fineness in a Raymond mill?

A: Fineness is controlled by the classifier speed. Lowering the frequency (RPM) of the classifier allows coarser particles (like 25 mesh) to pass into the cyclone collector, while increasing speed results in finer powder.
