How a Limestone Quarry Transformed Waste into Premium Manufactured Sand?

In the dynamic world of aggregate production, maximizing resource utilization while minimizing waste is a constant challenge. Many quarries face a common dilemma: substantial volumes of valuable rock, often deemed "waste," remain untapped or sold at distressingly low prices. This was precisely the situation at a limestone quarry in Kazakhstan, where a clever, targeted upgrade to their existing waste rock production line delivered remarkable results, demonstrating that even small changes can lead to significant gains.

The Challenge: A Mountain of Low-Value Fines

The Kazakhstan limestone quarry's primary operation involved crushing and screening overburden waste rock to produce aggregates. While the main products (various sizes of crushed stone) were successfully marketed, a critical issue arose with the fine material. Approximately 36% of their output consisted of 0-5mm fines.

These fines presented several problems:

  ● Poor Particle Shape: The existing crushing process didn't produce a desirable cubic shape for fine aggregates.
  ● High Mud Content: With an alarming mud content of around 15%, the material was unsuitable for demanding applications like concrete mixing plants.
  ● Limited Internal Use: The company's clinker production line could not fully incorporate these fines, leaving a substantial surplus.
Consequently, this 0-5mm material, despite being a product of their crushing efforts, was relegated to being sold off as cheap waste, significantly eroding the overall profitability of the waste rock production line.

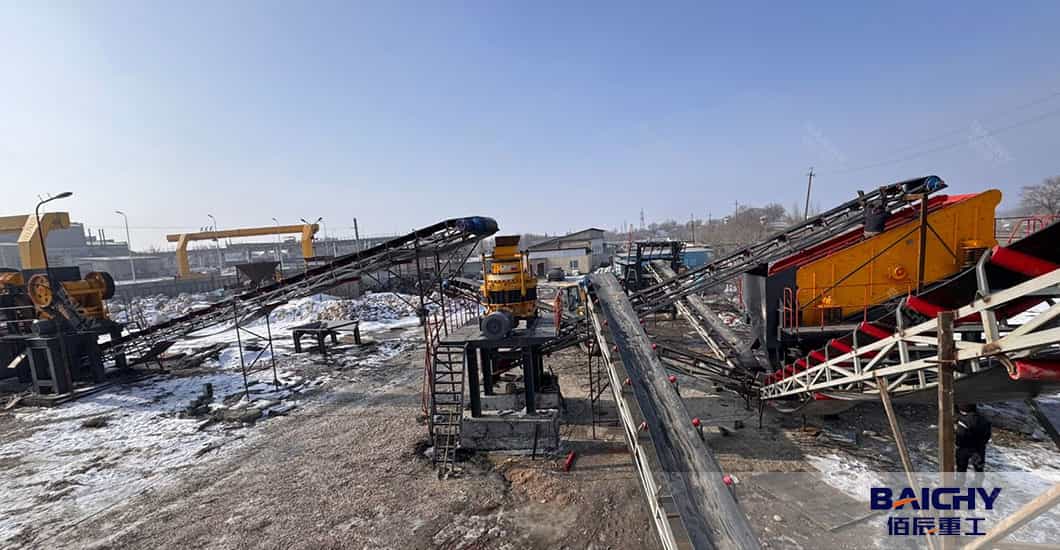

Original Production Process at a Glance:

The initial setup involved a two-stage crushing and screening process:
1. Primary Crushing: Limestone waste was fed via a heavy-duty plate feeder into jaw crusher for first-stage reduction.

2. Secondary Crushing: Material goes to spring type cone crusher  for secondary finer crushing process.
2.  Primary Screening (Vibrating Screen #1): Material then moved to a 1# vibrating screen, equipped with 25mm and 30mm mesh.
     ○ Products: 10mm-30mm aggregates.
     ○ Oversize (>30mm): Sent back to cone crusher for secondary crushing, then recirculated to the 1# vibrating screen.
     ○ Undersize (<25mm): Sent to the 2# vibrating screen.
3. Secondary Screening (Vibrating Screen #2): The <25mm material entered a 2# vibrating screen (with 5mm and 10mm mesh).
     ○ Products: 10mm-20mm aggregates, 5mm-10mm aggregates, and the problematic 0-5mm sand.

The Solution: Targeted Upgrade for High-Value Manufactured Sand

Recognizing the untapped potential in the 0-5mm waste, a strategic and cost-effective modification was proposed and implemented. The core of the solution involved introducing a specialized two-stage processing for the problematic fines.

The Revitalization Plan:

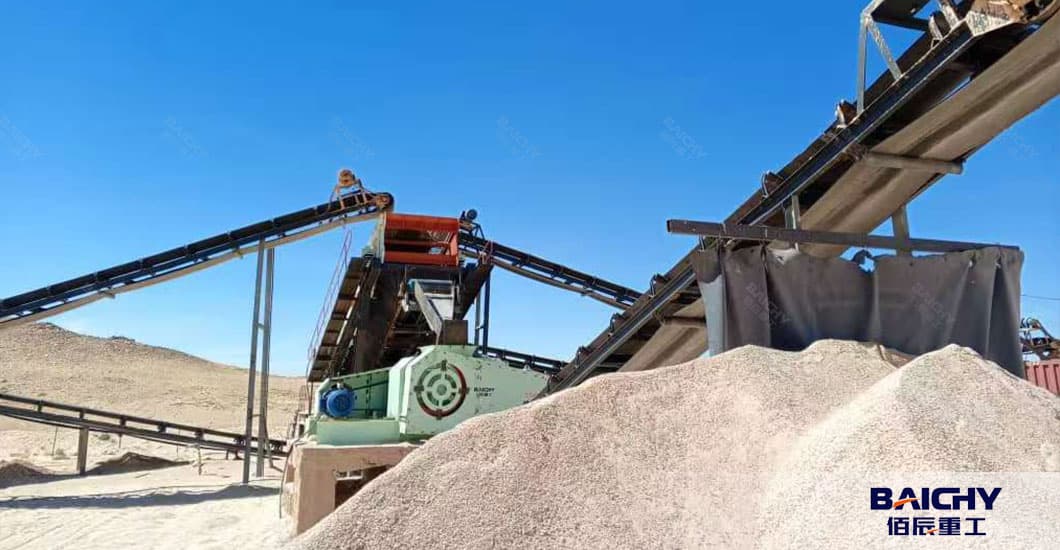

1. Pre-Screening for Fines: A new vibrating screen was strategically added at the end of the existing sand conveying belt, specifically designed to process the original 0-5mm "waste." This screen efficiently separated out the 3mm-5mm fraction.
2. Specialized Crushing for Particle Shape: The oversize material (3mm-5mm) from this new screen, now a semi-finished product, was then conveyed directly into a roller crusher (also known as a roll crusher) specifically chosen for its ability to produce high-quality manufactured sand with an improved particle shape.
3. Fines Management & Environmental Control: Both the newly added vibrating screen and the roller crusher were equipped with dust collection systems to ensure compliance with environmental standards.
This elegant modification effectively transformed a liability into a high-value asset, all within the constraints of the existing site.

Remarkable Results: From Waste to Profit

The impact of this relatively small intervention was profound:
● High-Quality Manufactured Sand: The upgraded line now produces high-quality manufactured sand, meeting the stringent requirements for demanding applications like concrete production.
● Increased Production Capacity: The new manufactured sand production line boasts a capacity of 50 t/h.
● Enhanced Product Value: By converting a low-cost waste material into a premium product, the company significantly increased its overall product added value.
● Resource Utilization: This project perfectly exemplifies the comprehensive utilization of waste rock resources, turning an environmental burden into an economic benefit.
● Environmental Compliance: The integration of dust collection systems ensured the entire operation met environmental standards, demonstrating a commitment to sustainable practices.
● Cost-Effective Investment: The project was constructed within the existing storage sheds, requiring no additional land acquisition. This ingenious use of existing infrastructure, coupled with carefully selected, cost-effective equipment, resulted in a low-investment, high-return solution.

Innovation at Its Core: Key Success Factors

This Kazakhstan case study highlights several innovative aspects that offer valuable lessons for similar operations:
1. Successful Waste-to-Product Conversion: The project successfully transformed waste material into an approved manufactured sand product, drastically increasing its market value and effectively revitalizing idle equipment assets. The chosen equipment and process offered an optimal balance of performance and cost-effectiveness.

2.  Optimized Footprint & Rapid ROI: Building the manufactured sand production line within the existing waste rock production shed eliminated the need for new land. This design choice contributed to a process route characterized by low investment, quick returns, low operational costs, and high product yield. This model is exceptionally well-suited for regions where manufactured sand prices might be lower, making cost efficiency paramount.

This Kazakhstan case vividly illustrates how strategic equipment selection and process optimization can unlock significant value from previously overlooked resources. If your quarry is grappling with:
● High proportions of low-value fines (0-5mm).
● Poor particle shape or high mud content in your fine aggregates.
● Limited markets for your current fine products.
● A desire to enhance environmental performance and resource utilization.

Then it's time to consider a targeted upgrade! The benefits extend beyond immediate profitability, contributing to a more sustainable and efficient operation. Don't let valuable waste erode your bottom line any longer. Contact us today to explore how a tailored solution, incorporating proven equipment like roller crushers for specialized fine aggregate production, can transform your waste rock into a premium, profitable product, just like in Kazakhstan!
