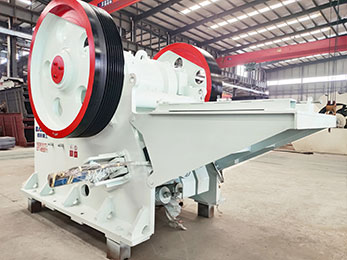

SKJ series Jaw Crusher is the top choice to crush hard, strong-corrosive materials with unique structural design, working performance, service life and maintenance. Motor is set on the machine body, which can reduce occupied space effectively.
SKJ series jaw crusher adopts advanced crushing technology and manufacturing process, with reasonable structure design, long service life, high working performance and low maintenance frequency. It is an ideal choice for coarse and medium crushing of hard and highly abrasive materials.
1. Strong frame and movable jaw body. The frame and movable jaw are made of thicker steel than others of the same specification.
2. Powerful bearing chamber. The integral high-strength alloy steel bearing chamber can ensure the firm fit between the bearing and the frame and avoid unnecessary load on the bearing. Ensure that the power from the motor is transmitted to the material stably and reliably.
3. Optimized cavity design. The symmetrical "V" shaped crushing cavity ensures that the actual feed port is consistent with the nominal feed port. It can ensure that the upper limit of product technical parameters, crushing chamber deeper, less space, larger crushing ratio.
4. Safe and fast discharge opening adjustment device. SKJ jaw crusher generally adopts wedge-shaped discharge opening adjustment device, large-scale jaw crusher adopts hydraulic adjustment, which greatly improves the automation of maintenance and makes the discharge opening adjustment operation safer and faster.
5. The integrated structure of the motor base and the host makes the installation easier and saves the occupied space. The whole machine is placed on the steel frame base, and the main unit and the base are connected by a shock-absorbing pad, which has little impact on the foundation.
6. Motor seat and main engine integrated structure, motor placed on the fuselage, easier installation, save space occupied. Jaw crusher machine is placed on the steel frame base, between the host and the base through the damping pad connection making it little impact on the foundation.
More advanced movable jaw assembly lengthens the using life. High manganese steel castings jaw plate can be reversed to extend life and save cost.
Integral bearing seat fits the frame completely. It enhances the radial strength and reduces the maintenance cost.
The discharge opening is adjusted by hydraulic and wedge block type. It makes discharge opening adjustment more convenient and makes maintenance more automatic.
The complete machine adopts modular design, which makes disassembly and transportation more convenient.
A Jaw Crusher uses compressive force to break hard stone material.
There two vertical manganese jaw plates create a V-shaped cavity called crushing chamber, where the top of the crushing chamber is larger than the bottom. The moving jaw moves back and forward against the fixed jaw, and material fed from the top chamber is compressed between the two jaws, breaking it into smaller pieces.
As the moving jaw moves away from the fixed jaw, the crushed material is discharged from discharge opening at the bottom. The required size is determined by the gap between the jaws.
| Model |
Feeder Opening Size(mm) |
Max. Feeding Size(mm) |
Discharging Opening Size(mm) |
Capacity (t/h) |
Motor Power (kw) |
Overall Dimension (mm) |
| SKJ6310 | 630×1000 | 580 | 80-180 | 100-230 | 75 | 3763×2280×2644 |
| SKJ8711 | 870×1100 | 720 | 85-220 | 130-450 | 110 | 4124×2480×3020 |
| SKJ1113 | 1100×1300 | 960 | 120-260 | 260-780 | 160 | 4836×2762×3489 |
| SKJ1216 | 1200×1600 | 1180 | 165-320 | 450-1200 | 220 | 6700×4040×4465 |
*The output will vary according to different materials, feed particle size and other factors
