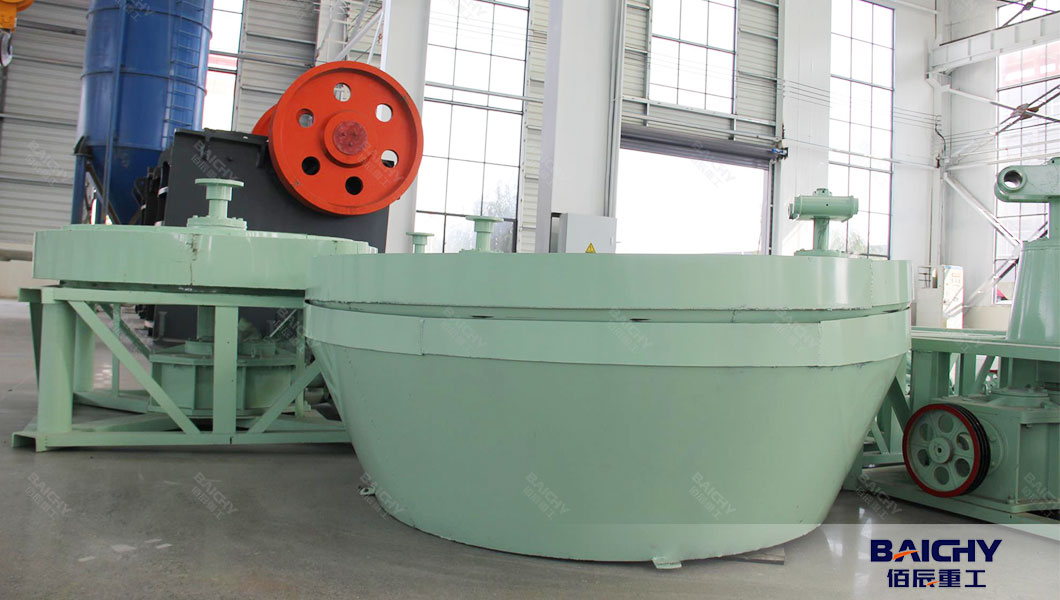

Gold Round Mill Wet Pan Mill For Small Scale Gold Miners

The gold round mill—also known as a wet pan mill or gold grinding machine—is a versatile ore grinding tool used primarily in small and medium-scale gold processing operations . It is named for its round grinding pan and the heavy rollers that rotate inside it. This equipment is particularly popular in gold mining regions across Africa, including Sudan, Zimbabwe, Ghana, and South Africa . Its simple design and low initial investment make it an ideal choice for miners who are starting or expanding small-scale operations.

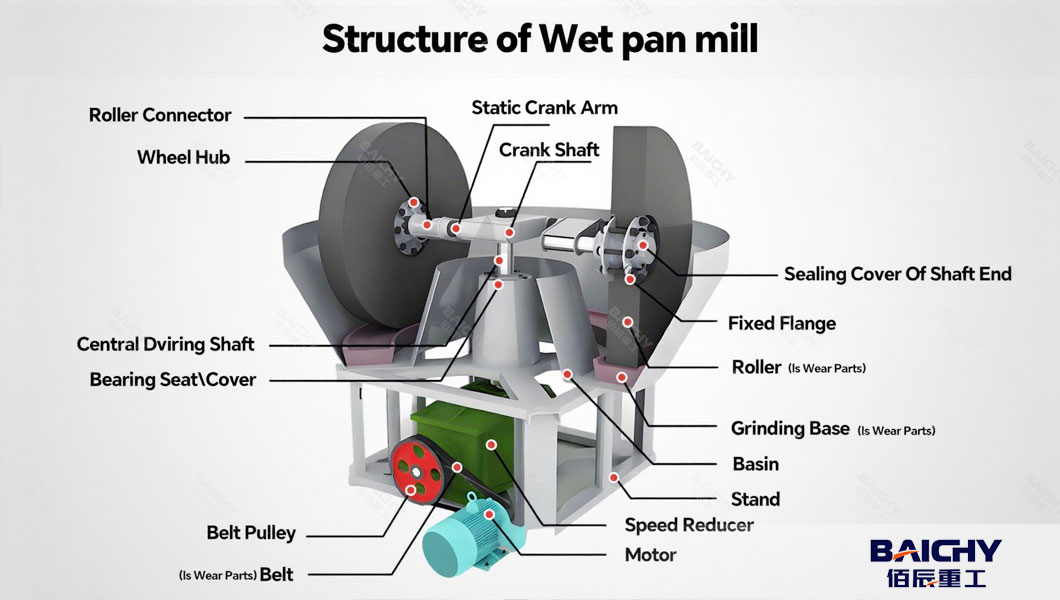

How Does a Wet Pan Mill Work?

The working principle is straightforward :

1. An electric motor drives a reducer, which transmits power to a vertical shaft.

2. This shaft rotates the horizontal axis, causing the heavy grinding wheels (rollers) to move.

3. The rollers revolve around the central vertical axis while also spinning on their own axes.

4. Ore and water are fed into the pan. The rollers crush and grind the material through their weight and the friction created against the fixed grinding pan.

5. The result is a fine, uniform slurry that can be directly processed for gold recovery.

In many operations, mercury is added to the mill to amalgamate with gold particles—a common practice that simplifies recovery but requires careful safety handling .

Typical Specifications

Wet pan mills are available in different models depending on capacity requirements.

Note: Capacity and fineness depend on ore hardness, moisture, and feeding stability.

Why Gold Ore Needs Wet Pan Mill

Gold ore often contains fine embedded gold particles that cannot be fully released by jaw crusher or hammer crusher alone. Key challenges in gold processing include:

   ● Low gold recovery from coarse crushing
   ● Uneven particle liberation
   ● High cost of ball mill systems for small mines
   ● Need for simple and fast installation in remote mining sites

For many small mining operations, cost control and recovery rate are the most important factors.

Wet Pan Mill vs Ball Mill

Wet pan mill is widely chosen for small gold mining operations where quick ROI is important.

Project Case: 10 Sets Gold Round Mill (Wet Pan Mill) in Zambia

Baichy supplied 10 sets of gold round mill (wet pan mill) to a small-scale gold processing plant in Zambia for rock gold grinding after primary crushing. The equipment was used to process ores with particle size below 30mm, producing fine slurry for gravity separation. After installation, the customer reported smoother grinding performance, more stable gold liberation, and improved recovery efficiency compared with their previous manual grinding method. The system also reduced labor intensity and allowed continuous operation in a simple plant layout, making it suitable for local small mining conditions.

The gold round mill (wet pan mill) is a practical and cost-effective grinding solution for gold ore processing. With simple structure, stable operation, and strong gold liberation performance, it is widely used in small and medium mining plants where cost control and recovery rate are both important. When selecting equipment, match your choice to your ore type, production scale, and budget. For most small-scale operations, a wet pan mill—especially the popular 1200B model—offers the best balance of cost and performance. For larger operations or harder ores, consider upgrading to a ball mill or using both mills in sequence.

Need help selecting the right gold round mill for your operation? Contact equipment suppliers Baichy Machinery with your specific capacity and ore requirements. Always request factory inspection reports and warranty details before purchase
