Carbon Black Grit Grinding Mill | HGM Micro Powder Grinding Mill

Processing carbon black presents one of the most demanding challenges in the powder processing industry. As a lightweight, fine black powder with an exceptionally high specific surface area (ranging from 10 to 3000 m²/g), carbon black is notoriously difficult to grind and disperse effectively. Manufacturers across the rubber, ink, coating, and plastics industries consistently face the same critical issues:

   ● Grit Contamination – Unprocessed carbon black contains oversized particles and impurities that compromise product quality. These grit particles create surface defects in finished goods and reduce the reinforcing properties essential for tire manufacturing and rubber applications.

   ● Poor Dispersion – Carbon black particles have a strong tendency to agglomerate. When dispersion is inadequate, the final product suffers from inconsistent color, reduced strength, and suboptimal performance characteristics.

   ● Processing Inefficiency – Conventional grinding equipment like ball mills and airflow mills often struggle with carbon black's unique properties, consuming excessive energy while failing to achieve the desired fineness.

The Solution: HGM Series Ultrafine Carbon Black Grinding Mill

The HGM (High-Pressure Grinding Mill) series micro powder grinding mill represents a technological breakthrough specifically engineered to address the unique challenges of carbon black processing.

1. Advanced Grinding Technology

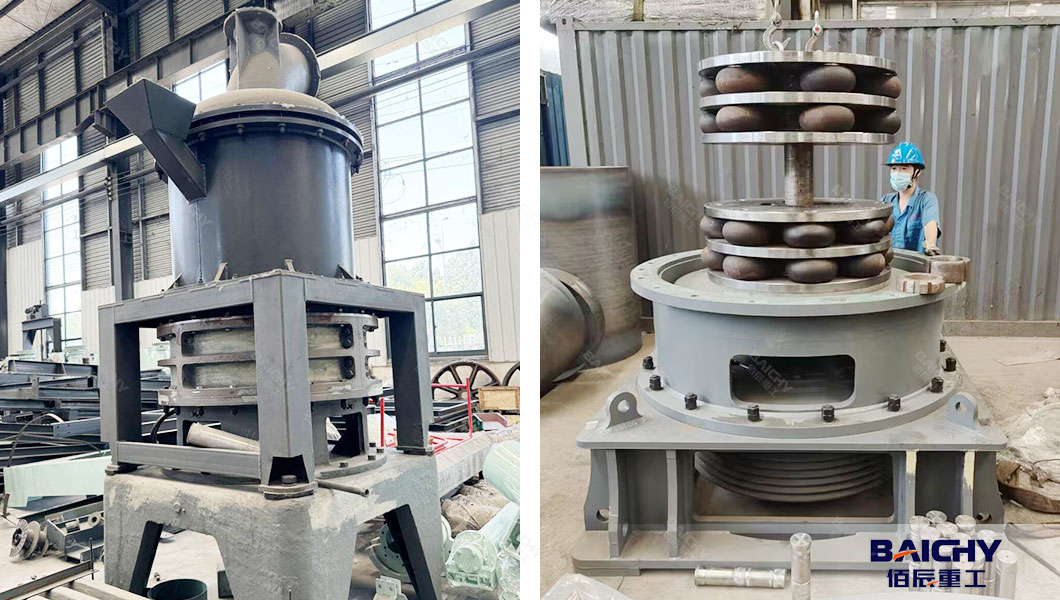

Unlike traditional Raymond mills that typically max out at 325 mesh (47 microns), the HGM mill achieves ultrafine particle sizes ranging from 325 to 3000 mesh (47 to 5 microns) in a single pass. This capability is made possible through its innovative three-ring or four-ring grinding system.

2. The working principle demonstrates sophisticated engineering:

   ● Multiple rollers (21 to 44 depending on the model) rotate within grinding rings, applying high pressure and shearing force to materials

   ● A built-in classifier with high-speed impeller screens particles continuously

   ● Unqualified particles automatically return for regrinding

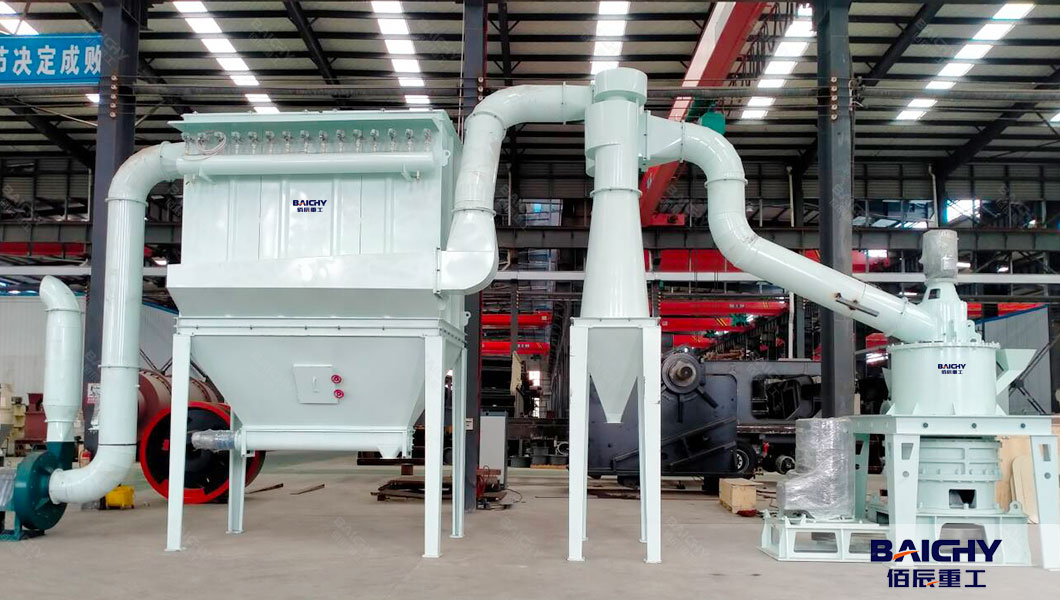

   ● Qualified fine powder is collected through a cyclone and pulse dust collection system

3. Technical Parameters (HGM Micro Powder Grinding Mill)

Product Features: What Makes HGM the Superior Choice

1. Unmatched Grinding Efficiency
When processing carbon black, the HGM mill delivers double the output of airflow mills or ball mills under identical power consumption and fineness requirements. This efficiency translates directly to lower operating costs and faster ROI.

2. Exceptional Wear Part Longevity
Grinding carbon black is notoriously abrasive, often destroying conventional equipment quickly. HGM mills feature rollers and rings forged from special wear-resistant materials, extending service life to:

   ● 1 year or more for general carbon black processing

   ● 2-5 years when processing calcite, carbonate, or lower-abrasivity materials

This extended lifespan dramatically reduces maintenance downtime and replacement part costs.

3. One-Pass Fineness to D97 ≤ 5μm
The integrated classifier system enables the HGM mill to achieve D97 ≤ 5μm in a single pass. This means 97% of the output meets the target fineness without secondary processing, eliminating the need for additional screening or regrinding operations.

4. Superior Safety and Reliability
Unlike traditional mills that rely on bearings and screws within the grinding chamber, the HGM design eliminates these vulnerable components. This means:

   ● No bearing seal failures

   ● No risk of screw loosening causing catastrophic machine damage

   ● Reduced maintenance requirements

   ● Enhanced operational safety

5. Environmentally Responsible Operation
Carbon black dust poses significant environmental and health concerns. The HGM mill incorporates advanced environmental protection features:

   ● High-efficiency pulse dust collector captures fine particles

   ● Sound-proof design and mufflers reduce noise pollution

   ● Closed-system operation minimizes dust emissions

   ● Meets stringent environmental compliance standards

6. Applicable to Recovered Carbon Black

With growing emphasis on tire recycling and sustainable materials, the HGM mill demonstrates exceptional capability in processing recovered carbon black (rCB) from pyrolysis. The mill consistently produces high-quality powder with narrow size distribution, enabling rCB to serve as a viable substitute for virgin carbon black in numerous applications.

Customer Case: Carbon Black Grinding Plant Upgrade with HGM Micro Powder Grinding Mill

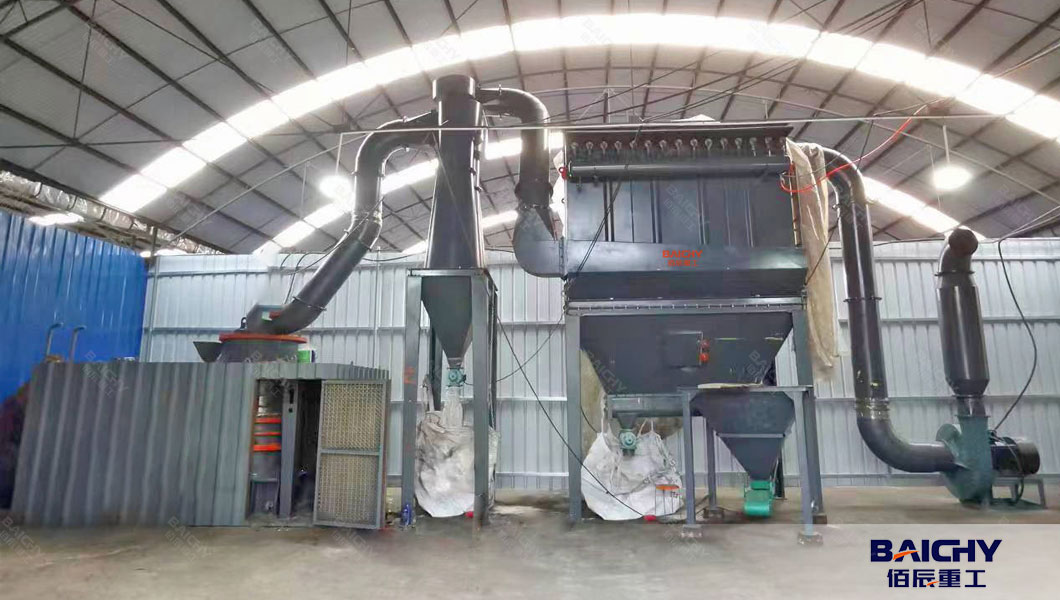

A carbon black processing company in Southeast Asia was previously using a traditional grinding system that struggled with inconsistent fineness, high energy consumption, and frequent maintenance shutdowns. The unstable powder quality directly affected its downstream rubber and coating customers, leading to rising complaints and production inefficiency. After evaluating multiple solutions, the client selected Baichy HGM micro powder grinding mill system for a full production upgrade. The new system was installed with a complete configuration including grinding unit, high-efficiency classifier, cyclone collection system, and pulse dust removal unit. After commissioning, the plant achieved stable production of 325–1500 mesh carbon black powder, with significantly improved particle uniformity and dispersion performance. The production line also reached continuous 24-hour stable operation, reducing unplanned downtime.

Customer Feedback & Experience

The client reported strong satisfaction after system optimization:

“The fineness is much more stable compared to our previous system, and the product quality is consistent across batches.”
“We noticed a clear reduction in energy consumption and maintenance frequency, which directly lowered our operating cost.”
“The Baichy engineering team provided fast installation support and clear operational guidance, which helped us start production quickly.”

The customer also emphasized that the improved powder quality allowed them to expand into higher-end rubber and coating markets, increasing product selling price and market competitiveness.

FAQ About HGM Micro Powder Grinding Mill

Q1: What mesh size can HGM mill achieve for carbon black?

A: The HGM micro powder grinding mill can produce carbon black powder between 325–3000 mesh depending on configuration.

Q2: Is HGM mill suitable for industrial continuous production?

A: Yes, it is designed for 24-hour continuous operation in industrial powder processing plants.

Q3: What is the advantage over ball mills?

A: HGM mill consumes less energy, produces finer powder, and offers more stable particle size control.

Q4: Can it be used for other materials?

A: Yes, it is also suitable for calcium carbonate, gypsum, talc, limestone, and other non-metallic minerals.
