Impact Crusher vs. Hammer Crusher: Which is More Profitable?

For limestone quarry owners, the choice between an Impact Crusher (PF/PFW Series) and a Hammer Crusher (PC/Heavy Hammer) is often the difference between profit and loss. While both machines look similar and are used for soft-to-medium hard rocks, their roles in a production line are completely different. At Baichy Machinery, we don't just sell machines; we help you choose the one that fits your budget and geology.

Here is the "No-BS" comparison regarding Process Flow, Output Quality, and Adaptability.

1. Process Flow: The "One-Step" Advantage

This is the biggest financial difference.
● Hammer Crusher (The Cost-Cutter):
   ○ Modern Heavy Hammer Crushers have a massive feed opening. They can take 1000mm boulders and reduce them to 25mm stones in a single pass.
   ○ The Benefit: You can eliminate the Primary Jaw Crusher entirely. This creates a "One-Step" crushing line, saving you 40% on initial investment (CAPEX) and electricity.

● Impact Crusher (The Specialist):
   ○ The Impact Crusher is strictly a Secondary Crusher. It cannot handle 1000mm rocks. It requires a Jaw Crusher to break the rock first.
   ○ The Cost: You need two machines (Jaw + Impact) instead of one.

2. Output Quality: The "Powder" Trap

Do you sell aggregate (stones) or fines (dust)?
● Hammer Crusher:

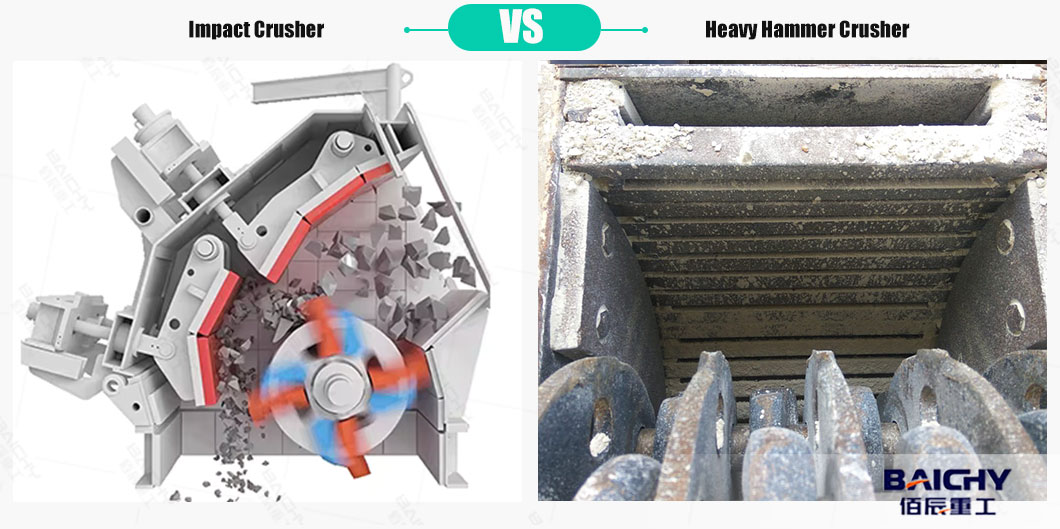

   ○ It uses a grate bar at the bottom to control size. Rocks are ground inside until they fit through the grate.
   ○ The Downside: This grinding action produces more stone powder (fines). If your market doesn't buy dust, this is waste.

● Impact Crusher:
   ○ It has no bottom grate. Rock is crushed by impact and exits freely.
   ○ The Upside: It produces excellent cubical particles with very low powder content. It is the gold standard for high-grade highway asphalt and concrete aggregate.

3. Adaptability: The "Rain" Factor

This is often overlooked until it rains.
● Hammer Crusher: Because of the bottom grate bars, if the raw material has high moisture or clay (mud), it will clog instantly. You cannot use it on rainy days or with sticky limestone.

● Impact Crusher: With an open discharge, it handles moisture much better. It rarely clogs, ensuring continuous production.

4. Wear Costs: The "Silica" Warning

Both machines are for soft rocks (Limestone/Gypsum). However:

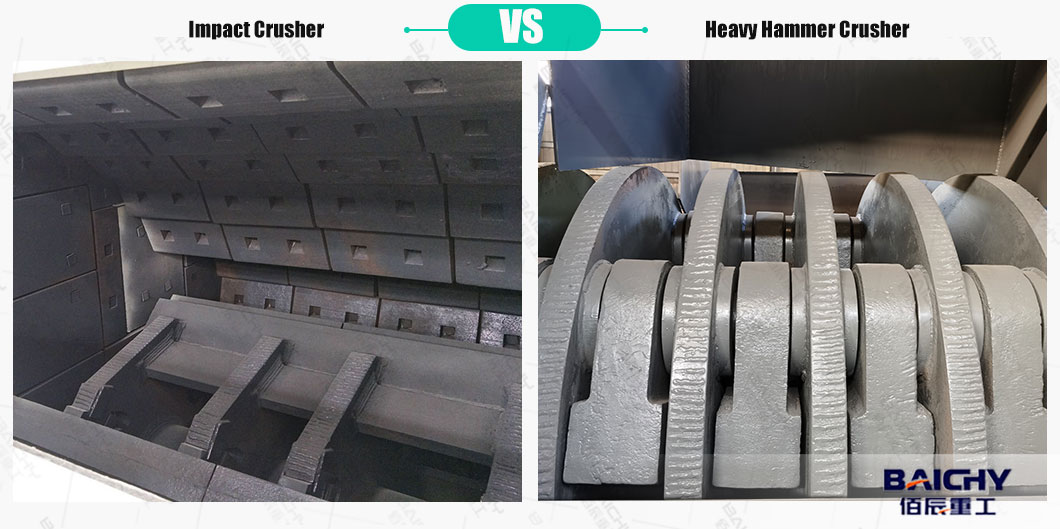

● Hammer Heads: Wear out faster if the limestone has Silica content >5%. Changing hammer heads is labor-intensive.

● Blow Bars (Impact): Generally have a longer lifespan and are easier to flip/replace.

5. Which One to Choose?

Use this decision matrix to decide:

Choose Heavy Hammer Crusher If...

You want to save huge upfront costs (No Jaw Crusher).
You have a market for stone powder/dust.
Your material is very dry and clean.

Choose Impact Crusher If...

You demand premium cubical shape (Road/Concrete).

You want to minimize stone powder (High Yield).

Your material is wet or sticky (Rainy season).

Still unsure about your limestone quality? Don't risk buying the wrong machine. Send your raw material analysis to Baichy. Get Your Free Crusher Selection Report.  Contact Baichy Machinery today for a customized flowchart and price quote.
