With the rapid development of infrastructure, road construction, and commercial building projects, the demand for high-quality construction sand continues to increase worldwide. Natural river sand resources are gradually decreasing due to environmental protection policies and excessive mining restrictions. As a result, manufactured sand (M sand) has become an ideal alternative for the construction industry.

A VSI crusher plays a critical role in the M sand manufacturing process. It is widely used for producing cubical and well-graded artificial sand from hard stones such as granite, basalt, river pebble, limestone, and quartz. This article explains how VSI crusher works in M sand manufacturing plant, including the production process, equipment advantages, technical specifications, and a real project application.

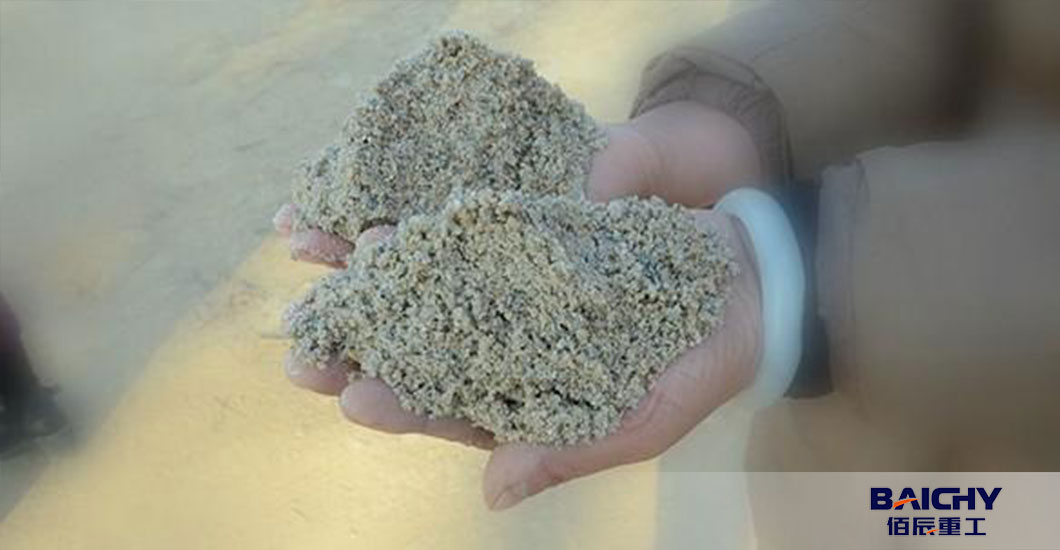

What is M Sand?

M sand, also called manufactured sand or artificial sand, is crushed fine aggregate produced from hard rock materials. It is processed through crushing, shaping, washing, and grading systems to achieve uniform particle size and excellent particle shape.

Compared with natural river sand, M sand offers several advantages:

    ● More consistent particle size
    ● Lower impurity content
    ● Better compressive strength
    ● Improved concrete bonding performance
    ● Environmentally friendly production
    ● Stable supply for large construction projects

M sand is widely used in:

    ● Concrete batching plants
    ● Road construction
    ● Building construction
    ● Dam projects
    ● Precast concrete products
    ● Asphalt production

Why VSI Crusher is Important in M Sand Production

The VSI crusher, also known as Vertical Shaft Impact Crusher, is the core equipment in a modern M sand manufacturing plant. Unlike traditional crushers that mainly reduce stone size,

The VSI crusher uses a high-speed rotor to throw materials against impact plates or material layers inside the crushing chamber. This “rock-on-rock” crushing principle produces cubical sand particles with smooth edges, which are ideal for construction applications.

Without VSI crusher shaping, crushed aggregates often contain flaky or elongated particles that reduce concrete quality.

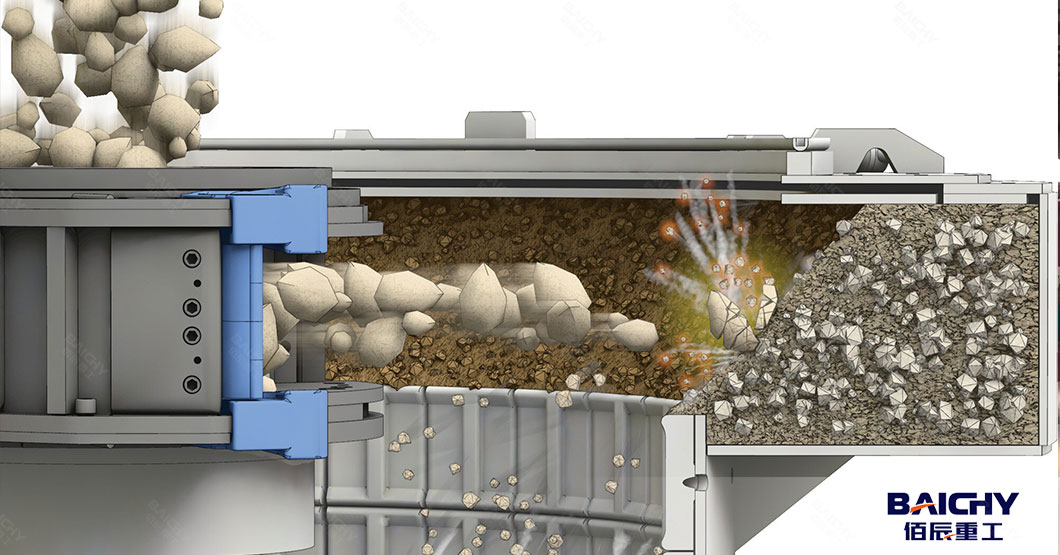

How VSI Crusher Works

The working principle of VSI crusher is based on high-speed centrifugal impact crushing.

    ● Feeding Stage

Crushed stone materials smaller than 40 mm are fed into the VSI crusher through a vibrating feeder.

For better efficiency and lower wear cost, the recommended feed size is below 15 mm.

    ● High-Speed Rotor Acceleration

Inside the crusher, the rotor rotates at high speed and accelerates the materials rapidly.  The stones are thrown outward at high velocity toward:

      ○ Impact plates
      ○ Material liners
      ○ Other stone particles

    ● Rock-on-Rock Crushing Process

The material collides repeatedly inside the crushing chamber. This process includes:

      ○ Impact crushing
      ○ Friction crushing
      ○ Material shaping

The “rock-on-rock” crushing method minimizes direct metal wear and improves finished sand quality.

    ● Sand Discharge and Screening

After crushing and shaping, the finished sand is discharged from the bottom outlet and transported to vibrating screens for grading. Qualified sand enters the washing system, while oversized material returns to the crusher for further crushing.

Technical Specifications of VSI Crusher

Advantages of VSI Crusher in M Sand Plant

1. Excellent Particle Shape. The finished sand is cubical with uniform grading, making it suitable for high-strength concrete production.

2. High Sand Production Efficiency. Compared with traditional sand making equipment, VSI crushers provide higher output and stable performance. Production capacity can reach 30-500 tons per hour depending on the model.

3. Low Wear Consumption. The optimized crushing chamber design reduces friction between materials and wear-resistant parts. This significantly lowers maintenance cost.

4. Adjustable Fineness Modulus. Operators can adjust the sand fineness according to construction requirements.

5. Hydraulic Maintenance System. Hydraulic opening devices simplify inspection and replacement of internal parts. This reduces downtime and improves maintenance efficiency.

6. Automatic Lubrication System. Thin oil lubrication systems ensure stable operation and extend bearing service life.

7. Flexible Application The VSI crusher can be used for:

    ● Artificial sand making
    ● Stone shaping
    ● Aggregate optimization
    ● Abrasive material crushing

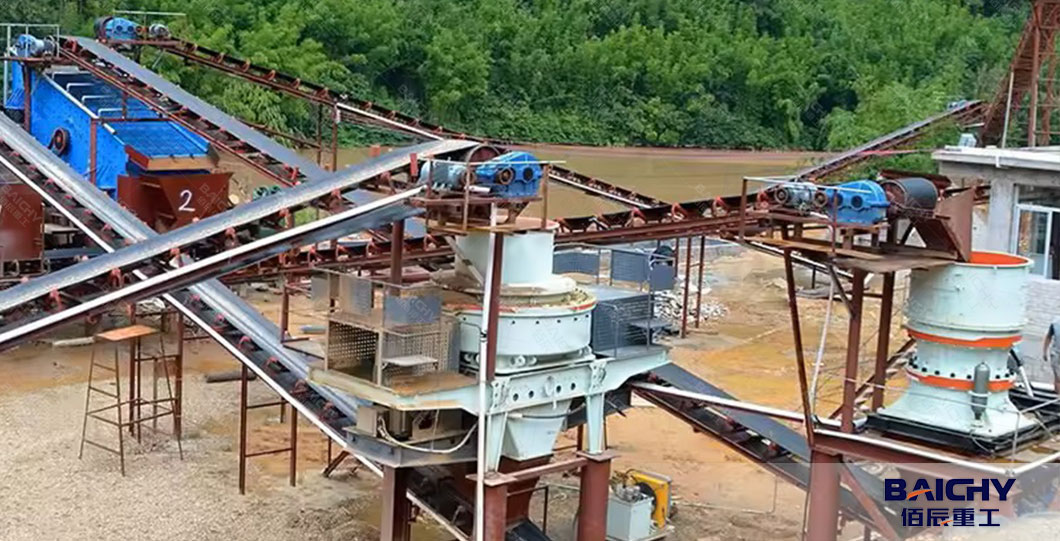

Typical Project Case of M Sand Manufacturing Plant

    ●  200 TPH Granite M Sand Manufacturing Plant in Southeast Asia

To meet the growing demand for high-quality construction sand in local infrastructure and commercial concrete projects, a customer in Southeast Asia invested in a complete 200 TPH granite M sand manufacturing plant equipped with a VSI sand making machine. The raw material is hard granite with high compressive strength and high silica content. Due to the strict requirements for finished sand shape and grading, the customer selected a VSI crusher as the core shaping equipment in the production line.

    ● Main Equipment Configuration

      ○ Vibrating feeder
      ○ PE jaw crusher
      ○ Hydraulic cone crusher
      ○ VSI sand making machine
      ○ Multi-layer vibrating screen
      ○ Sand washing machine
      ○ Fine sand recycling system
      ○ Belt conveyor system
      ○ Electrical control cabinet

The jaw crusher is used for primary crushing of large granite stones, while the cone crusher performs secondary crushing to reduce material size below 40 mm before entering the VSI crusher. The VSI crusher then reshapes the crushed aggregates into high-quality cubical manufactured sand.

Why Choose Baichy Machinery VSI Crusher?

As a professional mining and crushing equipment manufacturer, Baichy Machinery has more than 20 years of experience in sand making and aggregate processing solutions.

Baichy provides:

• Complete M sand production line solutions
• Customized plant design
• VSI crusher manufacturing
• Overseas installation service
• Technical training and support
• Spare parts supply
• Turnkey project solutions

Baichy VSI crushers have been exported to many countries in Asia, Africa, South America, and the Middle East for construction sand production projects.

FAQ

1. What is the role of VSI crusher in M sand manufacturing plant?

The VSI crusher reshapes crushed stone into cubical artificial sand particles suitable for construction and concrete applications.

2. What is the ideal feed size for VSI crusher?

The recommended feed size is below 15 mm for higher sand production efficiency and lower wear cost.

3. Which material is best for M sand production?

Granite and basalt are commonly considered the best raw materials because of their hardness and excellent finished sand quality.

4. Can VSI crusher produce sand directly from large stones?

No. Large stones must first be crushed by jaw crushers and cone crushers before entering the VSI sand making machine.
