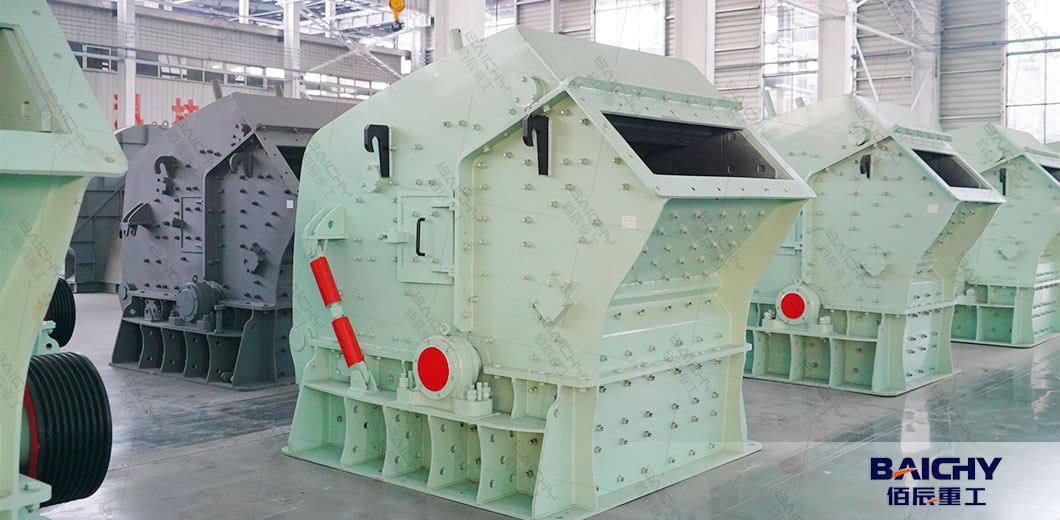

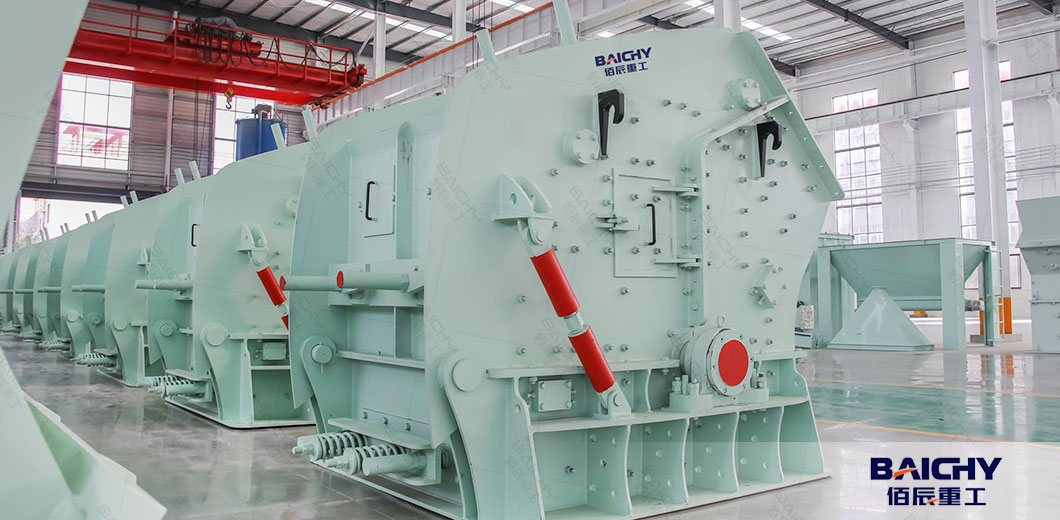

PF Impact Crusher: The "Cube Maker" for High-Quality Aggregates

In the aggregate business, you aren't just selling rocks; you are selling quality. If you are producing road base, asphalt chips, or concrete aggregate, your customers demand one thing above all else: Cubical Shape. Needle-like, flaky particles are rejected by strict construction standards. This is where the PF Impact Crusher (Horizontal Shaft Impactor) shines.

While Jaw crushers are built for brute force, the PF Impact Crusher is built for precision and performance. It is the industry standard for secondary crushing of soft-to-medium hard materials. In this guide, we’ll break down why the PF series remains a best-seller and how it can boost your quarry's profitability.

How It Works: The Power of Impact

Unlike a Jaw or Cone crusher that crushes by compression (squeezing), the PF Impact Crusher uses impact energy.

● The Strike: Material enters the chamber and is immediately struck by massive "Blow Bars" (hammers) mounted on a rapidly spinning rotor.
● The Throw: The rock is thrown violently against the "Impact Plates" (liners) hanging inside the roof of the crusher.
● The Ricochet: The rock bounces back down to the rotor to be hit again.

This chaotic, high-speed collision process breaks the rock along its natural fissures. The result? A perfectly shaped, stress-free stone cube.

3 Reasons Buyers Choose the PF Series

If you are looking to buy a crusher for limestone, gypsum, or concrete recycling, here is why the PF series is your best ROI (Return On Investment).

1. Unbeatable Product Shape

This is the #1 selling point. Cone crushers can sometimes produce flaky material. The PF Impact Crusher produces material that meets the strictest highway and airport runway standards. If your clients pay a premium for high-quality aggregate, this is the machine you need.

2. High Crushing Ratio

The PF series is a hungry beast. It can take relatively large feed sizes (300mm - 500mm) and reduce them to 20mm - 40mm in a single pass.
Benefit: This high reduction ratio (often 20:1) simplifies your plant layout. In some cases, you can skip a tertiary crushing stage entirely.

3. Simple & Cost-Effective Maintenance

The PF design is mechanically simple.There are no complex hydraulic oil stations or sensitive sensors to calibrate.
● Easy Access: The rear frame opens up (often hydraulically assisted in modern models), giving you direct access to change blow bars and liners.
● Cheap Spares: Because the PF design is the most common in the world, spare parts (blow bars, impact plates) are affordable and easy to source globally.

Who is the PF Impact Crusher For?

This machine is not for everyone. It is important to match the machine to the material.
✅ Perfect For:
Limestone & Dolomite: The PF was practically born to crush limestone. It eats it up with low wear costs.
Concrete Recycling: It easily shatters concrete and liberates the steel rebar (which comes out clean).
Coal & Gypsum: Excellent for soft, friable materials.

⚠️ Be Careful With:
Granite & Basalt: You can use a PF on hard rock, but you must use high-chrome blow bars. However, wear costs will be higher compared to a Cone Crusher. For very hard, abrasive rock, we usually recommend a Cone Crusher for the secondary stage.

Maintenance Tip for Users: "Flip It"

To get the most value out of your wear parts:
Rotate your Blow Bars.
Most blow bars are reversible. When the leading edge wears down to a certain point, flip the bar over to use the other side. This effectively doubles the life of your consumables. Also, keep an eye on the gap setting between the rotor and impact rack—keeping this tight ensures your product size stays consistent.

Conclusion: The Smart Choice for Soft Rock

The PF Impact Crusher is not a new invention—it is a proven veteran. It remains popular because it offers the perfect balance of low initial investment, high capacity, and premium product quality.
If you are mining limestone or recycling concrete, don't overcomplicate your circuit. The PF Series gives you the cubic product you need to sell your aggregate at the best price. Need a quote for a PF-1214 or PF-1315? Contact our team today to discuss which PF model fits your production line.
