Shale is a fine-grained sedimentary rock composed mainly of clay minerals and quartz. It is widely used in construction, cement production, and as a source of oil and gas (shale oil/gas). However, due to its brittle and layered structure, shale requires specialized crushing equipment to achieve the desired particle size efficiently. A shale crusher is designed to break down shale into smaller, manageable sizes for further processing or industrial applications.

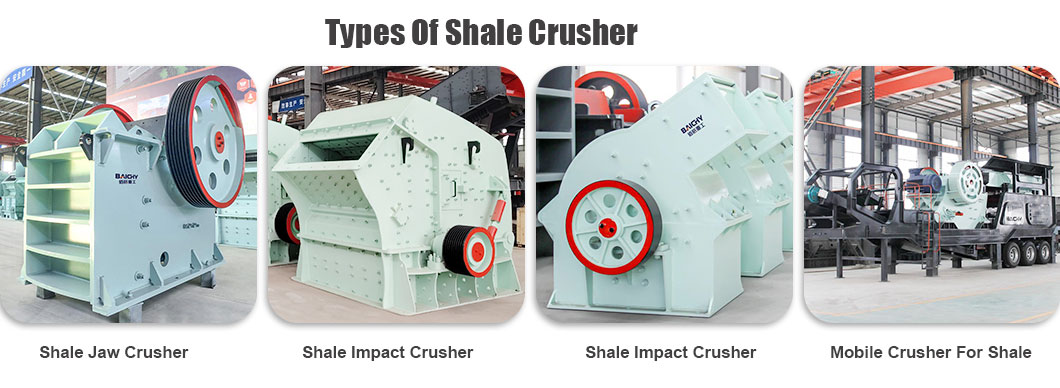

Types of Shale Crushers
Choosing the right shale crusher depends on the desired output size, production capacity, and end use. Common models include:
1. Jaw Crushers
Ideal for primary crushing, jaw crushers use a fixed jaw and a moving jaw to compress shale lumps (up to 500mm) into 50–100mm fragments. Their robust design handles shale’s abrasiveness, with manganese steel jaws that resist wear. They’re widely used in quarries and construction sites for high-volume primary processing.
2. Impact Crushers
Impact crushers use high-speed rotating impellers to strike and shatter shale, producing cubical particles (10–50mm). They’re perfect for secondary crushing, refining jaw-crushed shale into sizes suitable for concrete, road bases, or brick-making. Their adjustable discharge gap allows precise control over output size.
3. Hammer Crushers
Hammer crushers feature swinging hammers that break shale through repeated impact. They’re cost-effective for small to medium-scale operations, processing shale into fine particles (5–20mm) for agricultural uses (e.g., soil amendment) or as a filler in cement.
4. Mobile Shale Crushers
Tracked or wheeled mobile crushers combine crushing, screening, and conveying in one unit. They’re ideal for on-site shale processing (e.g., at construction or mining sites), eliminating the need to transport raw shale to stationary plants. Models like mobile jaw crushers or impact crushers boost efficiency for remote projects.

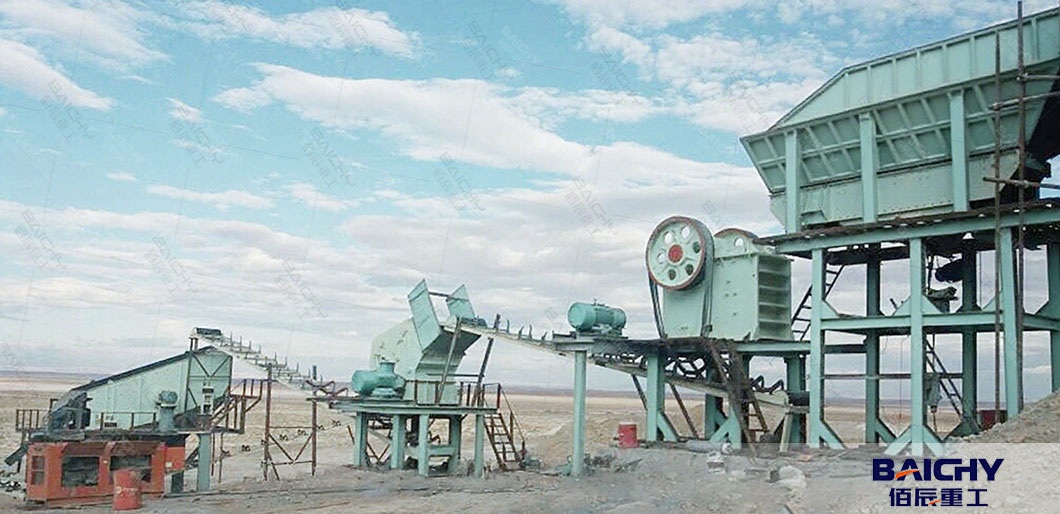

Shale Crushing Plant Configuration
A typical complete Shale Crushing Plant setup includes:
● Vibrating Feeder: Ensures consistent feed to the crusher.
● Primary Crusher: Jaw crusher for initial size reduction.
● Secondary Crusher: Impact or cone crusher for finer crushing.
● Vibrating Screen: Separates crushed shale into desired sizes (e.g., 0–5mm, 5–20mm).
● Belt Conveyors: Transports material between stages.
Challenges in Shale Crushing
● Abrasiveness: Shale’s silica content accelerates wear on crusher parts.
● Moisture Sensitivity: Wet shale can cause clogging in crushers and screens.
● Layer Structure: Shale tends to split along bedding planes, requiring tailored crushing strategies.
Solutions:
● Use impact crushers for better particle shape.
● Pre-dry shale if moisture exceeds 5%.
● Opt for hybrid crushers with adjustable speed.
Key Features to Look for in a Shale Crusher
● High Crushing Efficiency： Minimizes energy waste and maximizes output.
● Wear Resistance: Shale’s abrasiveness requires crushers with replaceable, high-chromium or manganese steel parts (jaws, hammers, liners) to extend service life.
● Adjustable Output: Crushers with adjustable discharge gaps allow flexibility to produce 5–100mm particles, adapting to diverse applications.
● Energy Efficiency: Modern models (e.g., hydraulic jaw crushers) minimize power consumption, reducing operational costs.
● Dust Suppression: Integrated water spray systems or dust collectors keep emissions low, complying with environmental regulations (e.g., EPA standards).
Shale crushers are essential for unlocking the economic potential of this abundant rock. Whether processing oil shale for energy or clay shale for building materials, the right crusher ensures efficient, high-quality output. By choosing a model tailored to your capacity needs and end use, you can turn shale into a profitable resource while supporting sustainable construction and industrial practices. For high-quality shale crushing equipment, consult with leading crusher manufacturers such as Baichy Machinery to ensure the best performance and cost-effectiveness.
